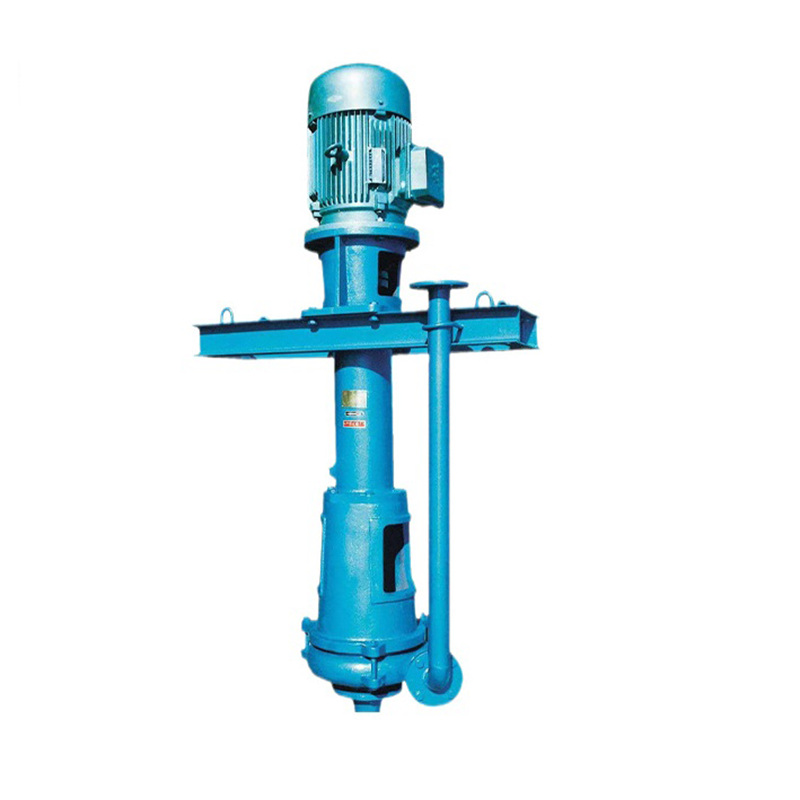

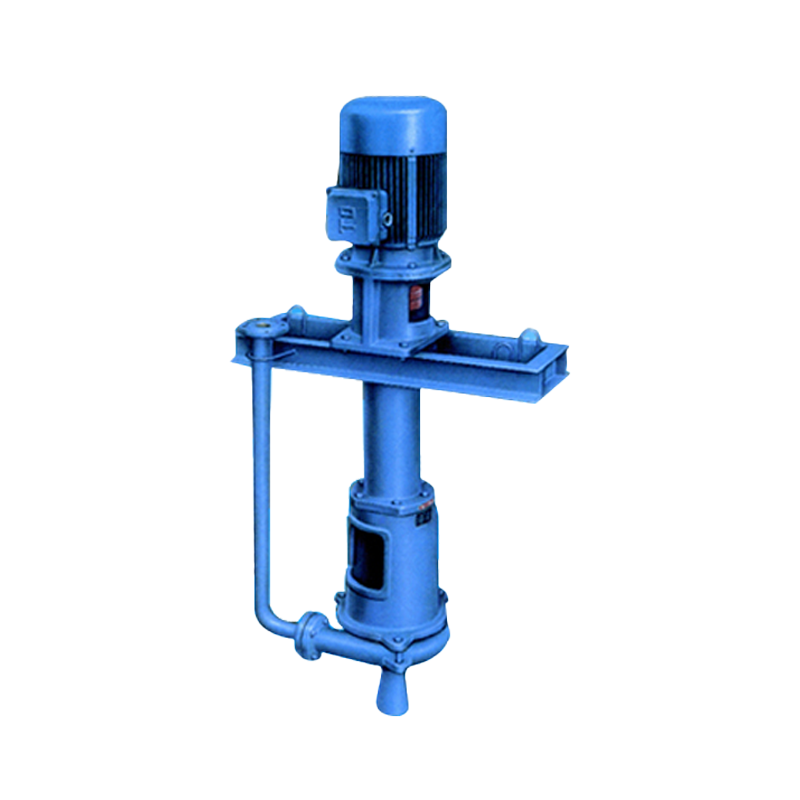

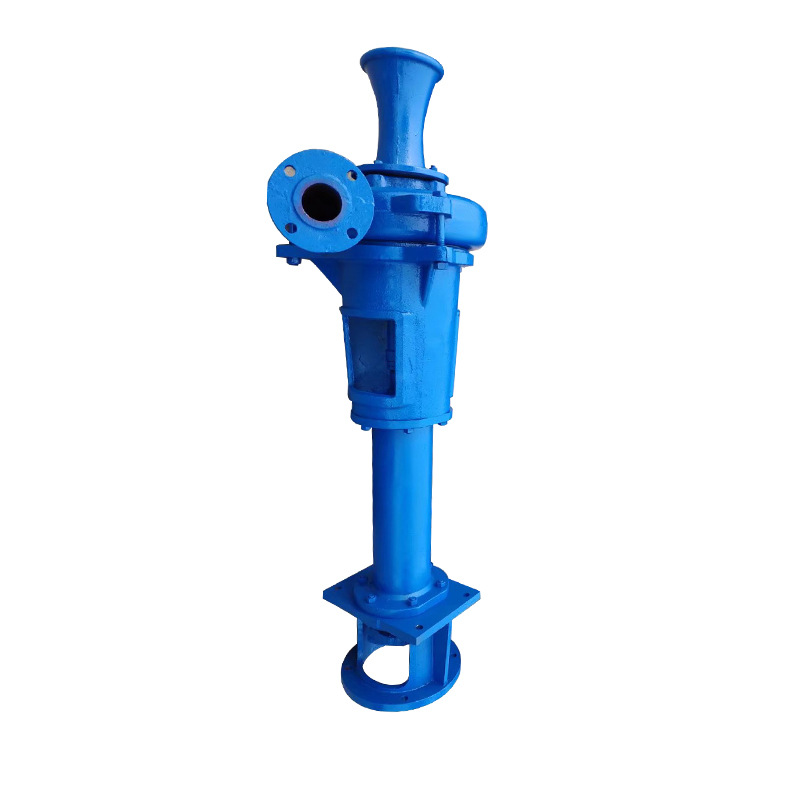

PN(L) Mud Pump

This series of pumps are single-stage, single-suction centrifugal mud pumps. PN is horizontal and PNL is vertical. The flow-through parts are made of wear-resistant alloy materials, and PNJ is made of rubber material with long service life. The shaft seal uses general packing seal, and the shaft seal should be injected with clean water 1 kg/cm2 higher than the working pressure during operation.

info@cn-pumps.cn

PNL vertical mud pump models and parameters:
Mud pump	Flow Q		Lift H	Speed	Power N(KW)		Efficiency η	Impeller diameter D	Pump weight
model	(m3/h)	(L/S)	(m)	(r/min)	Shaft power	Motor	（%）	(mm)	(Kg)
2PN（L）	30	8.33	22	1450	5.45	11	33	265	150
	47	13.05	19		6.25		39		250
	58	16.1	17		6.9		39
3PN（L）	54	15	26	1470	12	22	32	300	450
	108	30	21		14.7		42		280
	151	42	15		16.7		37
