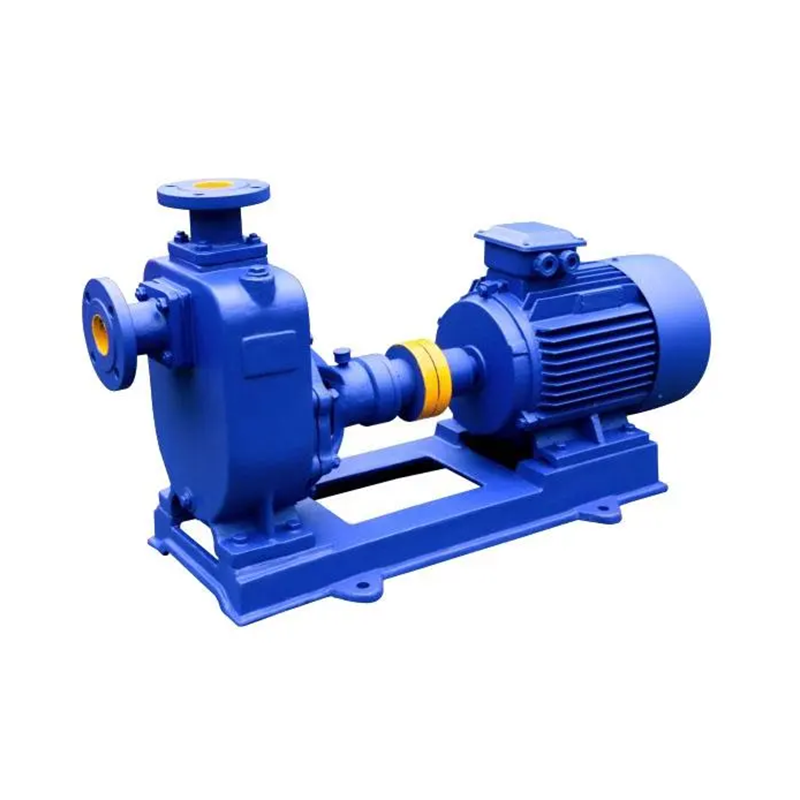

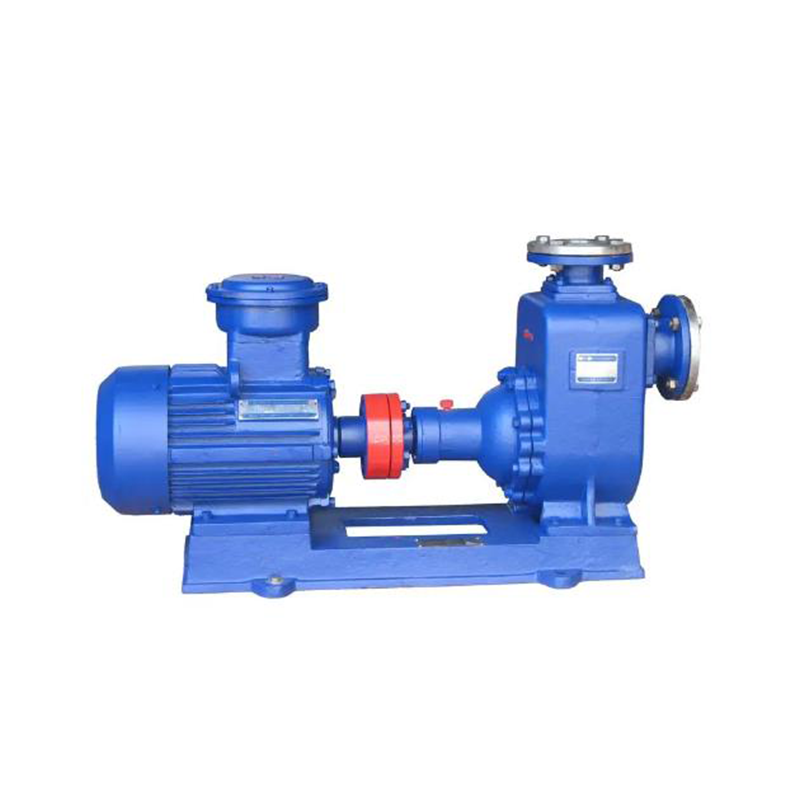

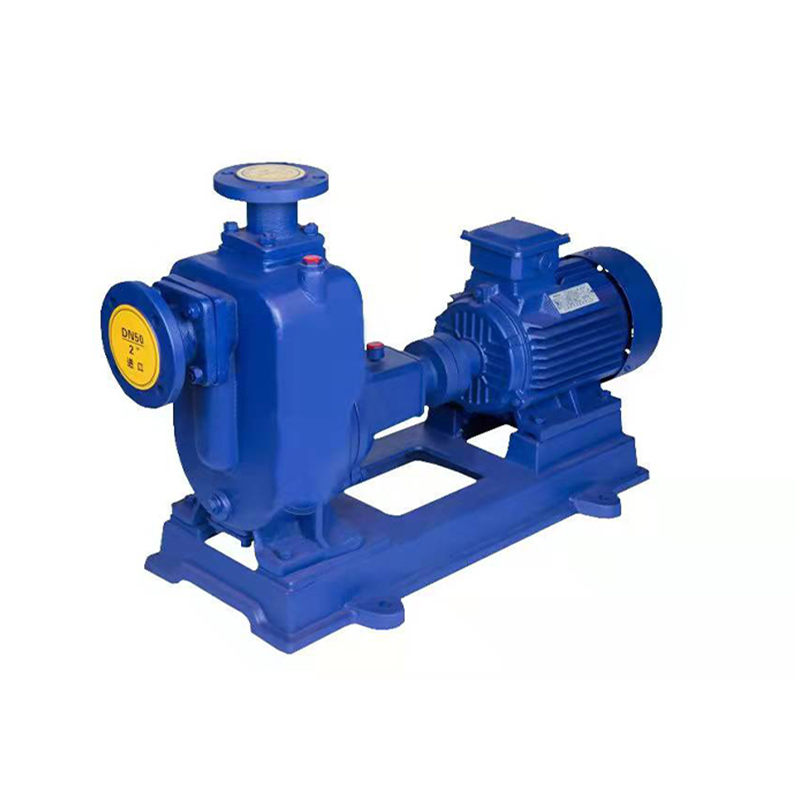

ZX Series Self-priming Centrifugal Pump
ZX series self-priming pump has the advantages of compact structure, convenient operation, stable operation, easy maintenance, and strong self-priming ability. No low valve is required in the pipeline. Before working, it is only necessary to keep a certain amount of liquid in the pump body, thus simplifying the pipeline system and improving working conditions. The materials include cast iron, stainless steel, engineering plastics, and fluoroplastics.
- Product Usage
1. Applicable to urban environmental protection, construction, fire protection, chemical industry, pharmaceutical industry, dye printing and dyeing, brewing, electricity, electroplating, papermaking, petroleum, mining, equipment cooling, tanker unloading, etc.
2. Applicable to water, seawater and chemical medium liquid with acidity and alkalinity and slurry with general paste (medium viscosity ≤100 centimeters, solid content can reach less than 30%).
3. After the rocker-type nozzle is installed, the water can be flushed into the air and dispersed into fine raindrops for spraying. It is a good machine for farms, nurseries, orchards and tea gardens.
4. It can be used with any model and specification of filter press, and it is an ideal matching pump for sending slurry to the filter press for filtration.
- Model meaning
For example: 65ZX30-15PB
65-inlet diameter (mm)
ZX-self-priming pump
30-rated flow (m3/h)
15-rated head (m)
P-material is stainless steel (304, 305, 306, 307, 316, 316L)
B-equipped with explosion-proof motor
- Product Parameters
| model | Flow Q | Lift | Suction distance | Speed | Self-priming performance | Power(Kw) | ||
| (m) | (m) | (r/min) | (min/5m) | |||||
| (m 3 /h) | (L/s) | Monosthto beach | Motor power | |||||
| 25ZX3.2-20 | 3.2 | 0.9 | 20 | 6.5 | 2900 | 1.9 | 0.46 | 1.1 |
| 25ZX3.2-32 | 3.2 | 0.9 | 32 | 6.5 | 2900 | 1.8 | 0.8 | 1.5 |
| 40ZX6.3-20 | 6.3 | 1.8 | 20 | 6.5 | 2900 | 1.9 | 0.87 | 1.5 |
| 40ZX10-40 | 10 | 2.8 | 40 | 6.5 | 2900 | 1.5 | 2.7 | 4 |
| 50ZX15-12 | 15 | 4.2 | 12 | 6.5 | 2900 | 2.4 | 1.1 | 1.5 |
| 50ZX18-20 | 18 | 5 | 20 | 6.5 | 2900 | 1.9 | 1.8 | 2.2 |
| 50ZX12.5-32 | 12.5 | 3.5 | 32 | 6.5 | 2900 | 1.5 | 2.1 | 3 |
| 50ZX20-30 | 20 | 5.6 | 30 | 6.5 | 2900 | 1.5 | 2.6 | 4 |
| 50ZX14-35 | 14 | 3.9 | 35 | 6.5 | 2900 | 1.5 | 2.7 | 4 |
| 50ZX10-40 | 10 | 2.8 | 40 | 6.5 | 2900 | 1.5 | 2.7 | 4 |
| 50ZX12.5-50 | 12.5 | 3.5 | 50 | 6.5 | 2900 | 1.4 | 4.3 | 5.5 |
| 50ZXZX15-60 | 15 | 4.2 | 60 | 6.5 | 2900 | 1.3 | 6.2 | 7.5 |
| 50ZX20-7.5 | 20 | 5.6 | 7.5 | 6.5 | 2900 | 1.3 | 9.8 | 11 |
| 65ZX30-15 | 30 | 8.3 | 15 | 6.5 | 2900 | 2 | 1.9 | 3 |
| 65ZX25-32 | 25 | 6.9 | 32 | 6 | 2900 | 1.5 | 4.4 | 5.5 |
| 80ZX35-13 | 35 | 9.7 | 13 | 6 | 2900 | 3.4 | 1.9 | 3 |
| 80ZX43-17 | 43 | 12 | 17 | 6 | 2900 | 1.8 | 3.1 | 4 |
| 80ZX40-22 | 40 | 11.1 | 22 | 6 | 2900 | 1.9 | 4.4 | 5.5 |
| 80ZX50-25 | 50 | 13.9 | 25 | 6 | 2900 | 1.5 | 5.2 | 7.5 |
| 80ZX50-32 | 50 | 13.9 | 32 | 6 | 2900 | 1.5 | 6.8 | 7.5 |
| 80ZX60-55 | 60 | 16.7 | 55 | 6 | 2900 | 1.5 | 15 | 18.5 |
| 80ZX60-70 | 60 | 16.7 | 70 | 6 | 2900 | 1.2 | 20.1 | 22 |
| 100ZX100-20 | 100 | 27.8 | 20 | 6 | 2900 | 1.8 | 7.8 | 11 |
| 100ZX100-40 | 100 | 27.8 | 40 | 6 | 2900 | 1.8 | 16.3 | 22 |
| 100ZX100-65 | 100 | 27.8 | 65 | 6 | 2900 | 1.8 | 27.7 | 30 |
| 100ZX70-75 | 70 | 19.4 | 75 | 6 | 2900 | 1.8 | 24.3 | 30 |
| 150ZX170-55 | 170 | 47.2 | 55 | 5 | 2900 | 1.8 | 39.2 | 45 |
| 150ZX170-65 | 170 | 47.2 | 65 | 5 | 2900 | 1.3 | 46.3 | 55 |
| 150ZX160-80 | 160 | 44.4 | 80 | 5 | 2900 | 1.2 | 53.6 | 55 |
| 200ZX400-32 | 400 | 111.1 | 32 | 5 | 1450 | 2 | 52.1 | 55 |
| 200ZX280-63 | 280 | 77.8 | 63 | 5 | 1450 | 1.5 | 73.9 | 90 |
| 200ZX350-65 | 350 | 97.2 | 65 | 5 | 1450 | 1.5 | 97.2 | 110 |
| 250ZX550-32 | 550 | 152.8 | 32 | 5 | 1450 | 2 | 72.3 | 75 |
| 250ZX400-50 | 400 | 111.1 | 50 | 5 | 1450 | 2 | 80 | 90 |
| 250ZX450-55 | 450 | 125 | 55 | 5 | 1450 | 2 | 102.1 | 110 |
| 250ZX400-75 | 400 | 111.1 | 75 | 5 | 1450 | 1.5 | 125.6 | 132 |
| 300ZX600-32 | 600 | 166.7 | 32 | 5 | 1450 | 2 | 79.2 | 90 |
| 300ZX500-50 | 500 | 138.9 | 50 | 5 | 1450 | 2 | 104.6 | 110 |
| 300ZX550-55 | 550 | 152.8 | 55 | 5 | 1450 | 2 | 117.6 | 132 |
