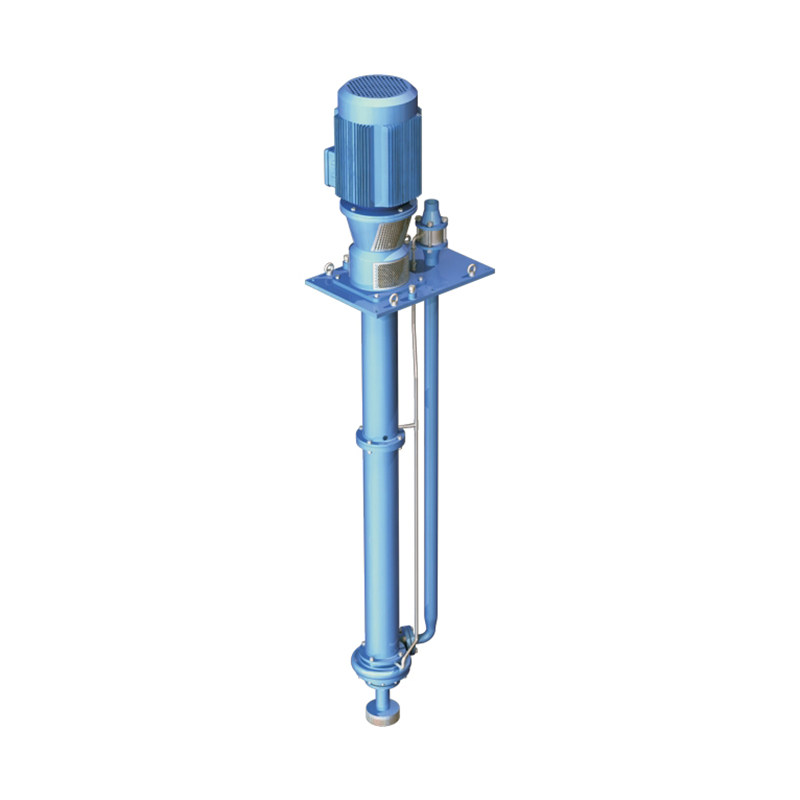

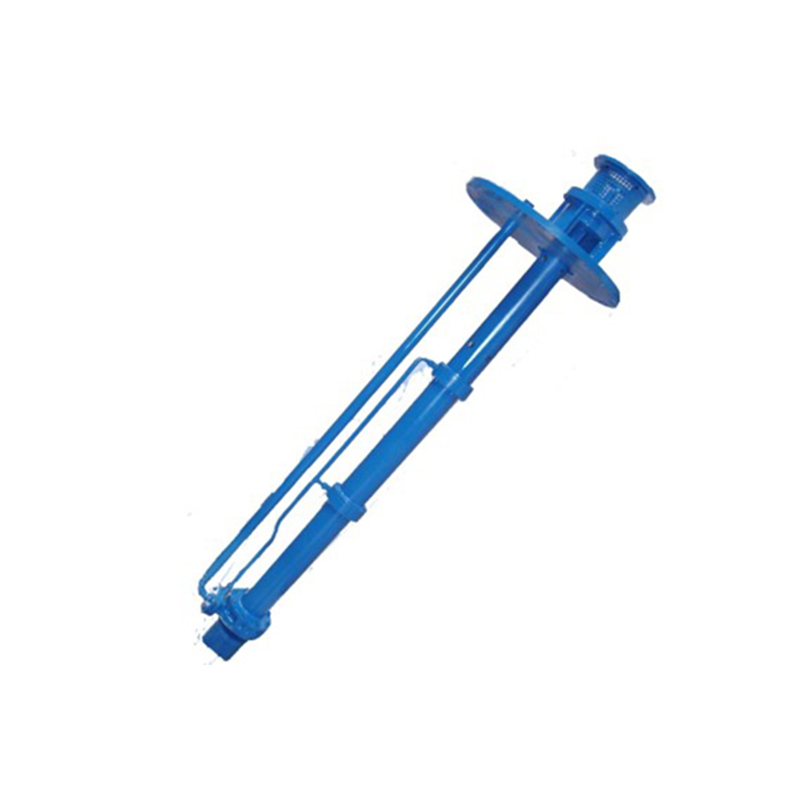

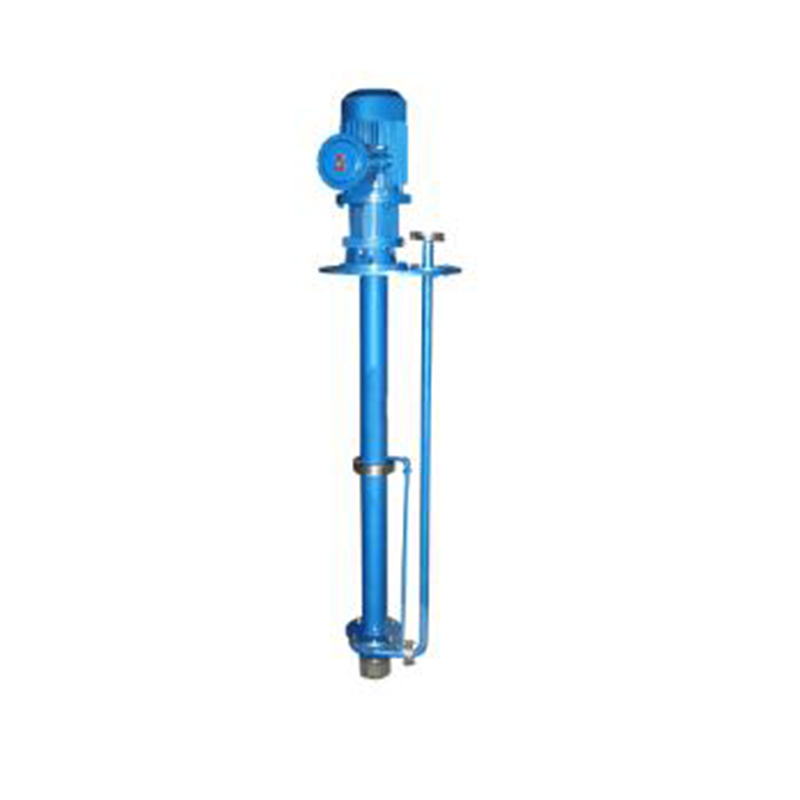

FY vertical submersible pump

FY series submersible pumps eliminate the mechanical seal commonly used in other submersible pumps and are widely used in petroleum, chemical, pharmaceutical, papermaking, metallurgy and other industries.

info@cn-pumps.cn

model	exit	Flow Q		Lift	Speed	Power (KW)
	diameter			（m）	（r/min）
	（mm）
（m3/h）	(L/s)	Shaft power	Motor	-	-	-	-
（m3/h）	(L/s)	Shaft power	Power KW	-	-	-	-
25FY-16	25	3.6	1	16	2900	0.713	1.5
25FY-16A	25	3.27	0.91	13	2900	0.713	1.5
25FY-25	25	3.6	1	25	2900	1.16	2.2
25FY-25A	25	3.27	0.91	20	2900	1.16	2.2
25FY-41	25	3.6	1	41	2900	2.51	4
25FY-41A	25	3.27	0.91	33	2900	2.51	3
40FY-16	32	7.2	2	16	2900	0.78	2.2
40FY-16A	32	6.55	1.82	13	2900	0.78	1.5
40FY-26	32	7.2	2	26	2900	1.45	3
40FY-26A	32	6.55	1.82	21	2900	1.45	3
40FY-40	32	7.2	2	40	2900	2.53	5.5
40FY-40A	32	6.55	1.82	32	2900	2.53	5.5
50FY-16	40	14.4	4	16	2900	1.18	3
50FY-16A	40	13.1	3.64	13	2900	1.18	3
50FY-25	40	14.4	4	25	2900	1.96	4
50FY-25A	40	13.1	3.64	20	2900	1.96	3
50FY-40	40	14.4	4	40	2900	3.73	7.5
50FY-40A	40	13.1	3.61	33	2900	3.73	5.5
65FY-16	50	28.8	8	16	2900	2.16	4
65FY-16A	50	26.2	7.28	13	2900	2.16	3
65FY-25	50	28.8	8	25	2900	3.56	5.5
65FY-25A	50	26.2	7.28	21	2900	3.56	5.5
65FY-40	50	28.8	8	40	2900	6.04	11
65FY-40A	50	26.2	7.28	33	2900	6.04	11
80FY-15	65	54	15	15	2900	3.34	7.5
80FY-15A	65	49.1	13.65	12	2900	3.34	7.5
80FY-24	65	54	15	24	2900	5.43	11
80FY-24A	65	49.1	13.65	20	2900	5.43	11
80FY-38	65	54	15	38	2900	9.64	18.5
80FY-38A	65	49.1	13.65	31	2900	9.64	15
100FY-23	80	100.8	28	23	2900	9.25	18.5
100FY-23A	80	91.8	25.5	18	2900	9.25	15
100FY-37	80	100.8	28	37	2900	14.73	22
100FY-37A	80	91.8	25.5	31	2900	14.73	22
