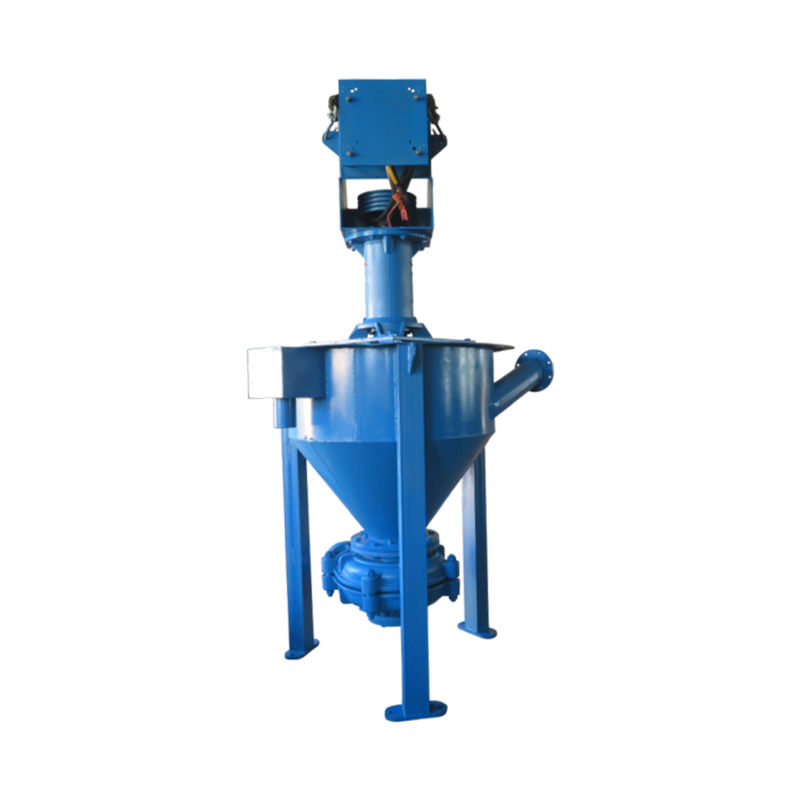

AF Foam Pump

Application range: widely used in metallurgy, mining, coal, chemical industry, power plant, environmental protection, municipal engineering and other industries. The pump can effectively eliminate the foam in the slurry when working, and can still work normally when the incoming material is insufficient. It is especially suitable for various flotation processes and is an ideal product for conveying foam slurry.

info@cn-pumps.cn

model	Power P（KW）	flow Q(m³/h)	Lift H(m)	Speed n(r/min)	Maximum efficiency η%	Suction port diameter (mm)	Outlet diameter(mm)
2QV-AF	3-15	6-43	6-30	800-1800	45	100	50
3QV-AF	3-18.5	23-78	5-28	700-1500	55	150	75
4RV-AF	5.5-37	33-187	5-28	500-1050	55	150	100
6SV-AF	15-75	80-393	5-25	250-680	55	200	150
8SV-AF	37-110	126-575	5-26	350-650	55	250	200
