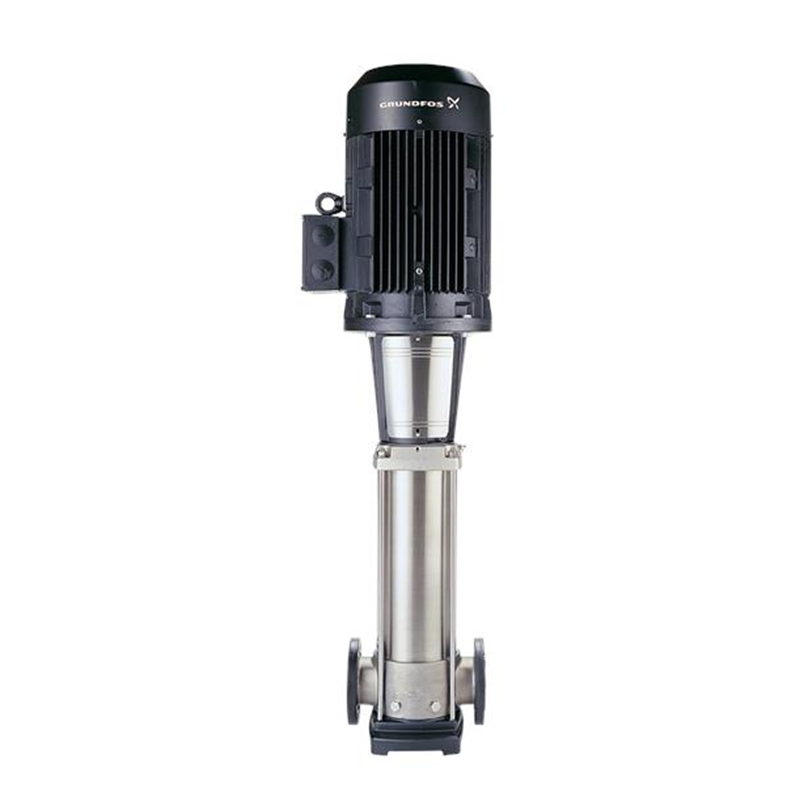

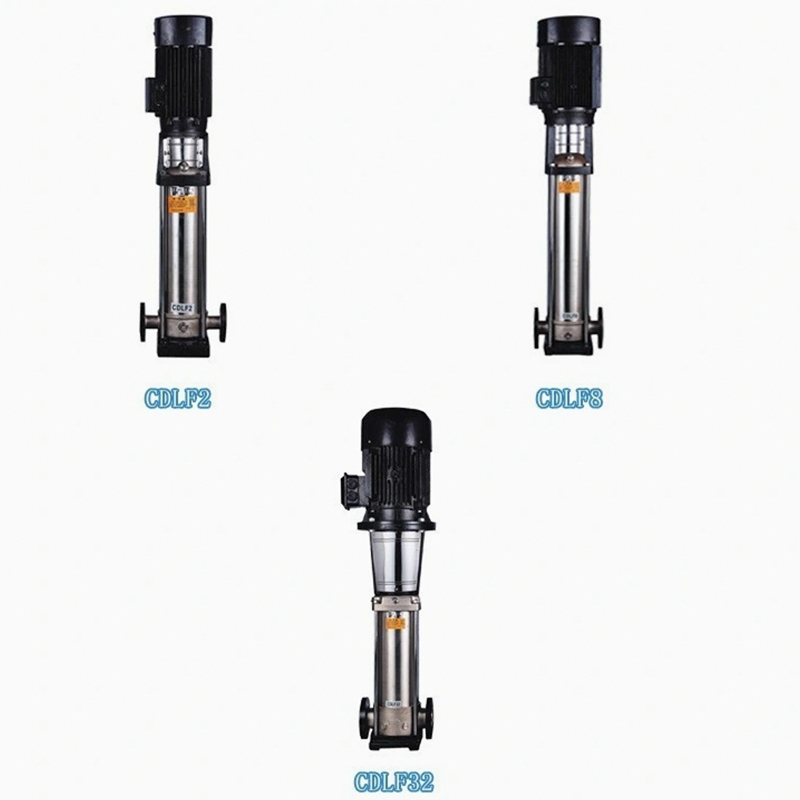

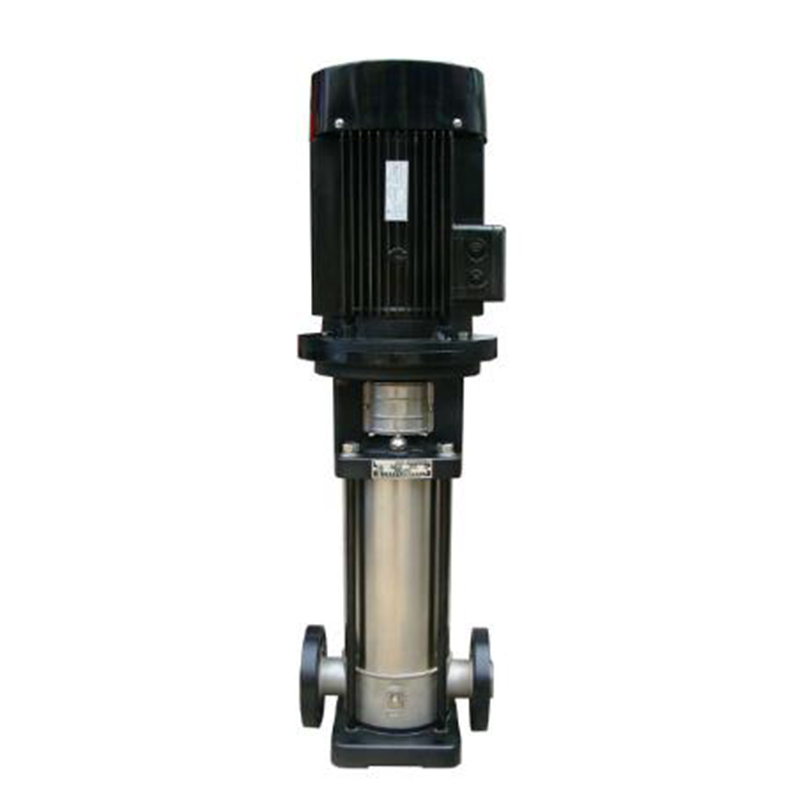

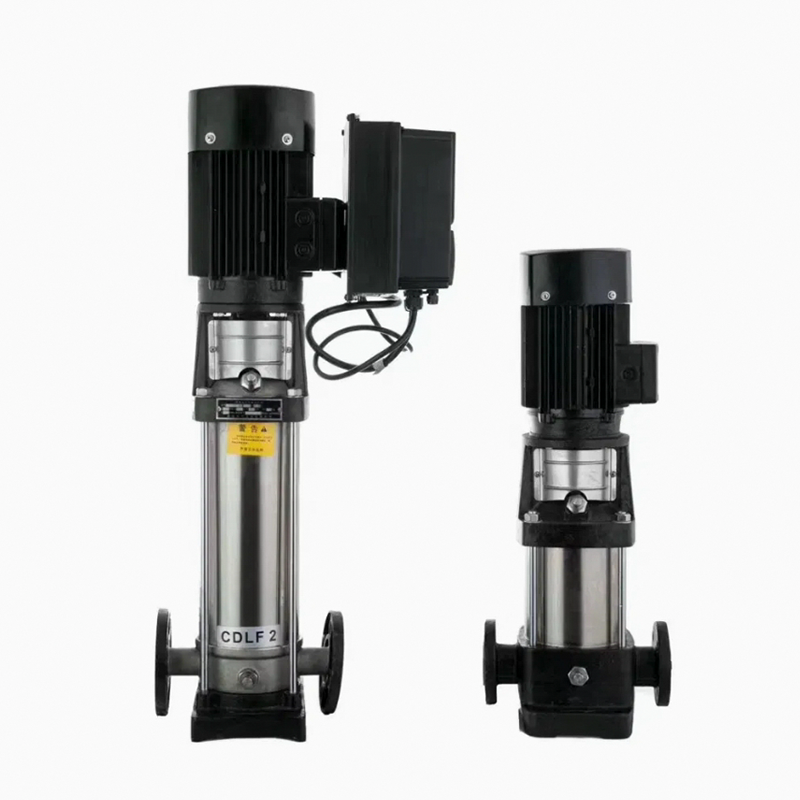

CDLF light vertical multistage pump

info@cn-pumps.cn

model	Lift	flow	Motor power	Speed
model	（m）	（m3/h）	（KW）	（r/min）
CDL1-2	11.5	1	0.37	2900
CDL1-3	17	1	0.37	2900
CDL1-4	22.5	1	0.37	2900
CDL1-5	28	1	0.37	2900
CDL1-6	33.5	1	0.37	2900
CDL1-7	39	1	0.37	2900
CDL1-8	45	1	0.55	2900
CDL1-9	51	1	0.55	2900
CDL1-10	57	1	0.55	2900
CDL1-17	95	1	1.1	2900
CDL1-19	106	1	1.1	2900
CDL1-21	117	1	1.1	2900
CDL1-23	128	1	1.1	2900
CDL1-25	139	1	1.5	2900
CDL1-27	150	1	1.5	2900
CDL1-30	166	1	1.5	2900
CDL1-33	183	1	2.2	2900
CDL1-36	200	1	2.2	2900
CDL2-2	15	2	0.37	2900
CDL2-3	22	2	0.37	2900
CDL2-4	30	2	0.55	2900
CDL2-5	37	2	0.55	2900
CDL2-6	45	2	0.75	2900
CDL2-7	52	2	0.75	2900
CDL2-9	67	2	1.1	2900
CDL2-11	82	2	1.1	2900
CDL2-13	98	2	1.5	2900
CDL2-15	112	2	1.5	2900
CDL2-18	136	2	2.2	2900
CDL2-22	165	2	2.2	2900
CDL2-26	198	2	3	2900
CDL3-2	9	3	0.37	2900
CDL3-3	14	3	0.37	2900
CDL3-4	19	3	0.37	2900
CDL3-5	23	3	0.37	2900
CDL3-6	28	3	0.55	2900
CDL3-7	32	3	0.55	2900
CDL3-8	37	3	0.75	2900
CDL3-9	42	3	0.75	2900
CDL3-10	47	3	0.75	2900
CDL3-11	51	3	1.1	2900
CDL3-12	55	3	1.1	2900
CDL3-13	60	3	1.1	2900
CDL3-15	69	3	1.1	2900
CDL3-17	79	3	1.5	2900
CDL3-19	88	3	1.5	2900
CDL3-21	98	3	2.2	2900
CDL3-23	107	3	2.2	2900
CDL3-25	116	3	2.2	2900
CDL3-27	124	3	2.2	2900
CDL3-29	133	3	2.2	2900
CDL3-31	142	3	3	2900
CDL3-33	151	3	3	2900
CDL3-36	168	3	3	2900
CDL4-2	15	4	0.37	2900
CDL4-3	24	4	0.55	2900
CDL4-4	32	4	0.75	2900
CDL4-5	40	4	1.1	2900
CDL4-6	48	4	1.1	2900
CDL4-7	56	4	1.5	2900
CDL4-8	64	4	1.5	2900
CDL4-10	81	4	2.2	2900
CDL4-12	95	4	2.2	2900
CDL4-14	112	4	3	2900
CDL4-16	129	4	3	2900
CDL4-19	153	4	4	2900
CDL4-22	178	4	4	2900
CDL8-2/1	9	8	0.75	2900
CDL8-2	18	8	0.75	2900
CDL8-3	27	8	1.1	2900
CDL8-4	36	8	1.5	2900
CDL8-5	45	8	2.2	2900
CDL8-6	54	8	2.2	2900
CDL8-8	73	8	3	2900
CDL8-10	92	8	4	2900
CDL8-12	111	8	4	2900
CDL8-14	130	8	5.5	2900
CDL8-16	148	8	5.5	2900
CDL8-18	167	8	7.5	2900
CDL8-20	186	8	7.5	2900
CDL12-2	20	12	1.5	2900
CDL12-3	30	12	2.2	2900
CDL12-4	40	12	3	2900
CDL12-5	50	12	3	2900
CDL12-6	60	12	4	2900
CDL12-7	70	12	5.5	2900
CDL12-8	80	12	5.5	2900
CDL12-9	91	12	5.5	2900
CDL12-10	101	12	7.5	2900
CDL12-12	121	12	7.5	2900
CDL12-14	141	12	11	2900
CDL12-16	162	12	11	2900
CDL12-18	183	12	11	2900
CDL16-2	22	16	2.2	2900
CDL16-3	34	16	3	2900
CDL16-4	46	16	4	2900
CDL16-5	58	16	5.5	2900
CDL16-6	70	16	5.5	2900
CDL16-7	82	16	7.5	2900
CDL16-8	94	16	7.5	2900
CDL16-10	118	16	11	2900
CDL16-12	141	16	11	2900
CDL16-14	166	16	15	2900
CDL16-16	189	16	15	2900
CDL20-1	10	20	1.1	2900
CDL20-2	23	20	2.2	2900
CDL20-3	35	20	4	2900
CDL20-4	47	20	5.5	2900
CDL20-5	58	20	5.5	2900
CDL20-6	70	20	7.5	2900
CDL20-7	82	20	7.5	2900
CDL20-8	94	20	11	2900
CDL20-10	118	20	11	2900
CDL20-12	142	20	15	2900
CDL20-14	166	20	15	2900
CDL20-17	202	20	18.5	2900
