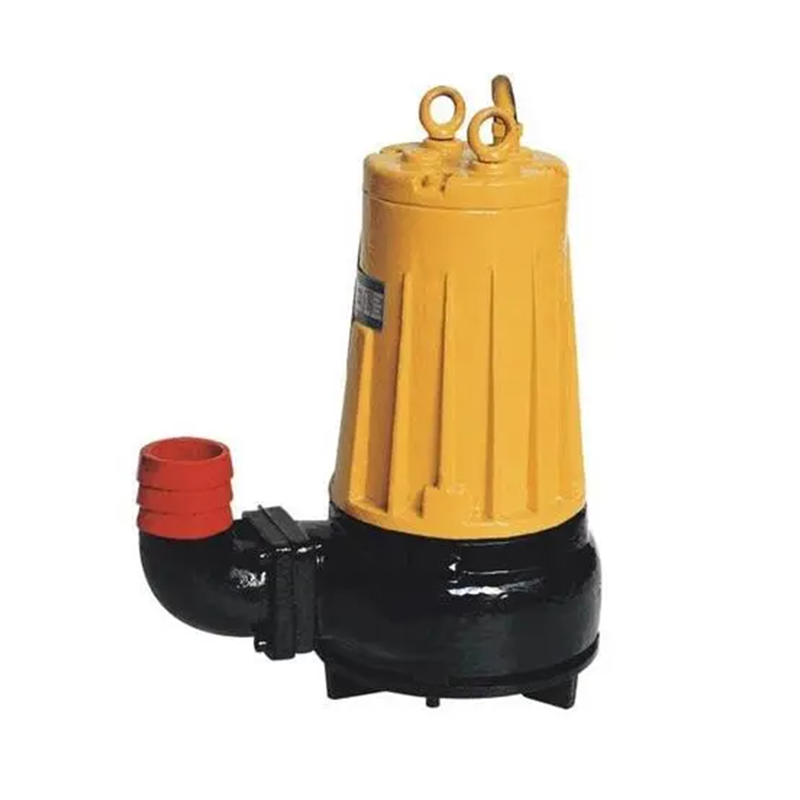

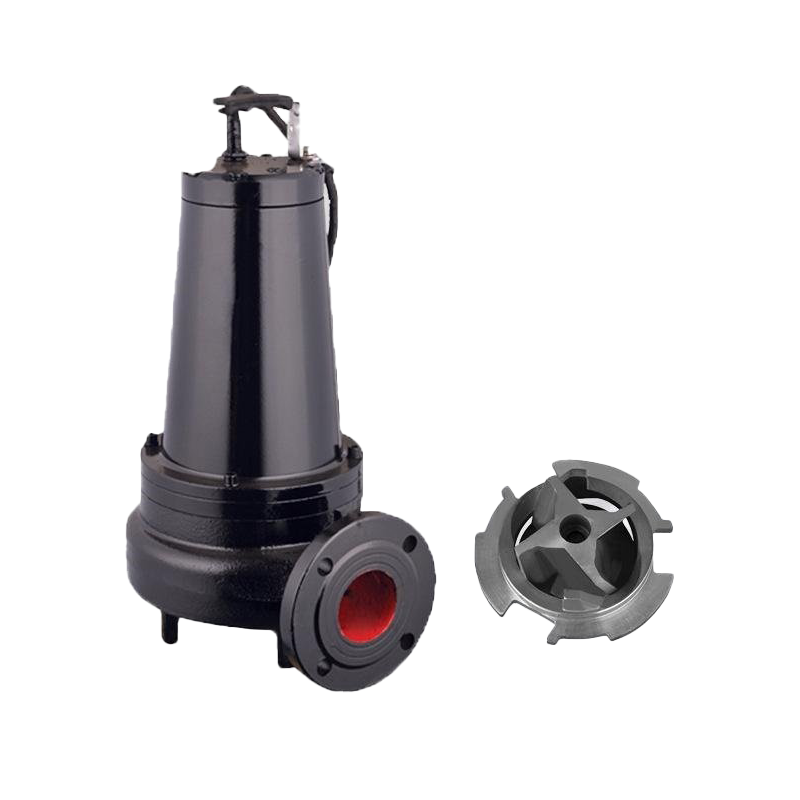

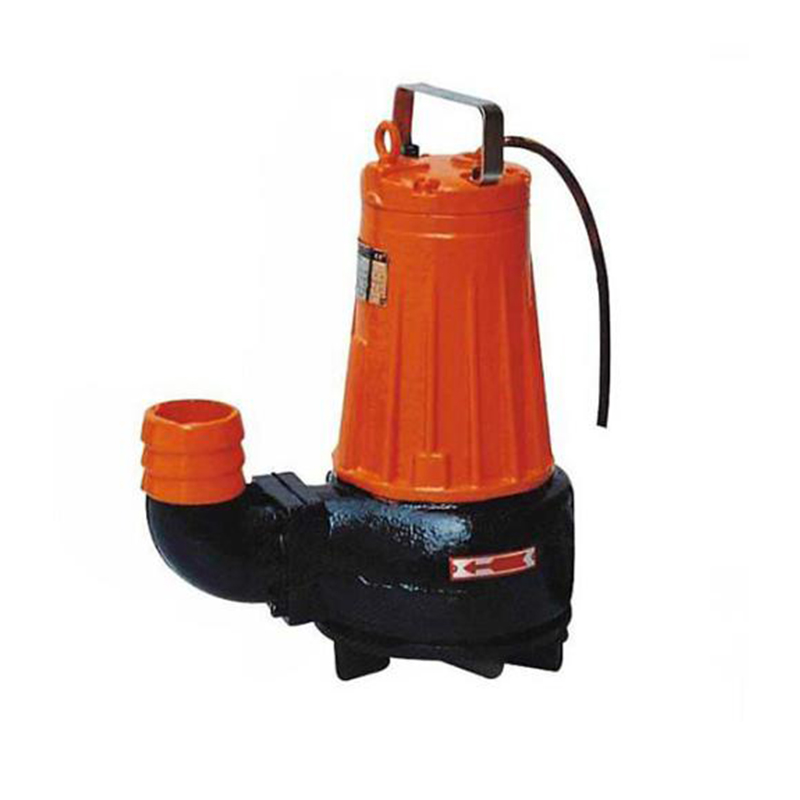

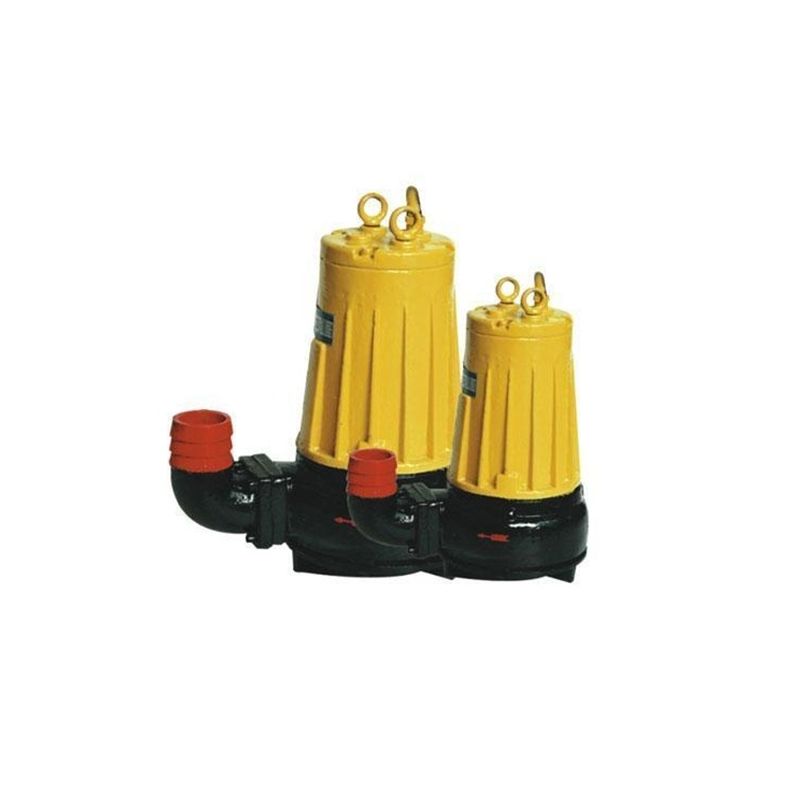

AS_AV type tear submersible sewage pump

AS series submersible sewage pumps are suitable for conveying liquids containing hard solids and fibers, as well as particularly dirty, sticky and slippery liquids. AS pumps are equipped with adjusted tearing devices that can tear long fibers, bags, belts, grass, cloth strips, etc. in sewage and discharge them. Therefore, they will not be blocked when working in sewage and are extremely reliable.

info@cn-pumps.cn

model	flow	Lift	power	Speed	Rated voltage	Inner diameter of hose
model	m3/h	(m)	(kw)	(r/min)	(V)	(mm)
AS10-2W/CB	15	4	1.1	2850	220	80
AS16-2/CB	25	8	1.5	2850	220	80
AS10-2CB	15	4.5	1.1	2850	380	80
AS10-2CBA	8	8	1.1	2850	380	80
AS16-2CB	29	7.6	1.5	2850	380	80
AS22-2CB	40	10	2.2	2850	380	80
AS30-2CB	42	11	3	2850	380	80
AS40-2CB	40	14	4	2850	380	80
AS55-2CB	45	13	5.5	2850	380	100
AS75-2CB	60	18	7.5	2850	380	100
AS55-4CB	100	7.5	5.5	1450	380	150
AS75-4CB	145	10	7.5	1450	380	150
AV14-4	35	4	1.5	1450	380	80
AV22-2	15	20	2.2	2850	380	80
AV40-2	25	22	4	2850	380	80
AV55-2	60	14	5.5	2850	380	100
AV75-2	60	20	7.5	2850	380	100
