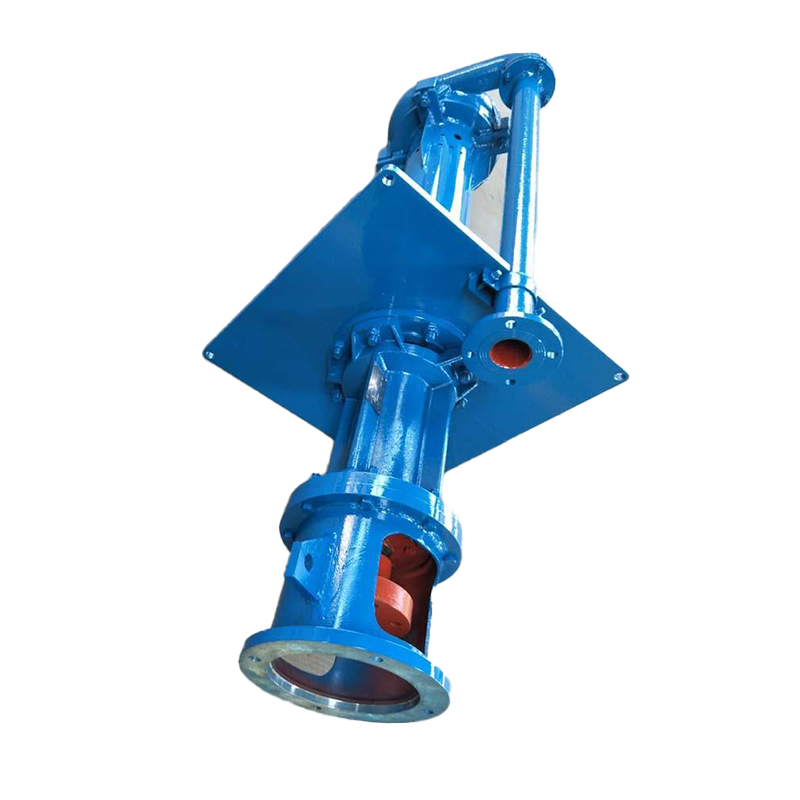

ZJL Series Submersible Slurry Pump

It is widely used in electric power, metallurgy, mining, coal, building materials, chemical industry and other industrial sectors. It is mainly used to transport abrasive slurry containing solid particles. It can be immersed in a pool or pit to work and does not require any shaft seal or shaft seal water.

info@cn-pumps.cn

model	Power P(KW)	flow Q(m³/h)	Lift H(m)	Speed n(r/min)	Highest efficiency η%	NPSH (m)	Maximum particle size(mm)	weight（kg)
150ZJL-A35	7.5-37	99-361	3-17.9	490-980	69	/	15	800
100ZJL-A34	15-45	74-293	5.5-37	700-1480	65.8	/	14	630
80ZJL-A36	15-45	50-201	7.3-45.5	700-1480	58.2	/	12	650
65ZJL-A30	5.5-18.5	18-98	5.9-34.7	700-1470	53.7	/	8	440
50ZJL-B40	11-30	15-65	8.6-58.3	700-1470	34.1	/	9	540
50ZJL-A35	7.5-22	19-86	7.3-47.1	700-1470	48.1	/	15	500
50ZJL-A20	1.1-4	8-38	1.4-10.7	700-1440	38.6	/	10	240
50ZJL-A20J	4-30	18-70	5.6-46.2	1440-2950	33.8	/	22	570
40ZJL-A35	5.5-18.5	9.4-47.6	8.1-48	700-1470	38.7	/	7	500
40ZJL-B25	1.5-5.5	4.9-22.9	4-21.5	400-1440	37.6	/	8	225
40ZJL-A21	1.1-4	4.6-25.9	3.3-17	700-1440	44.6	/	10	210
