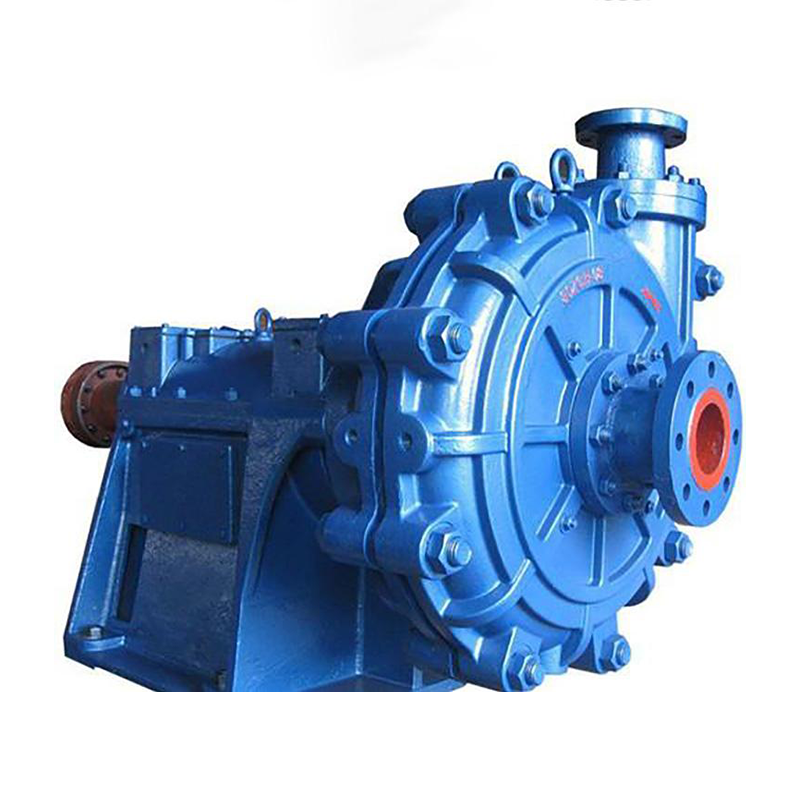

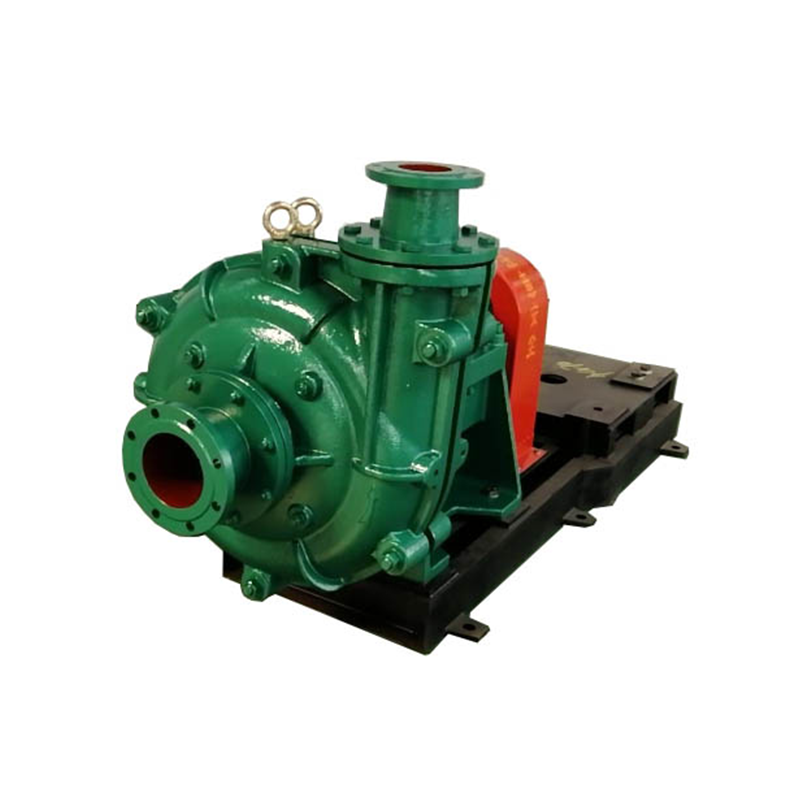

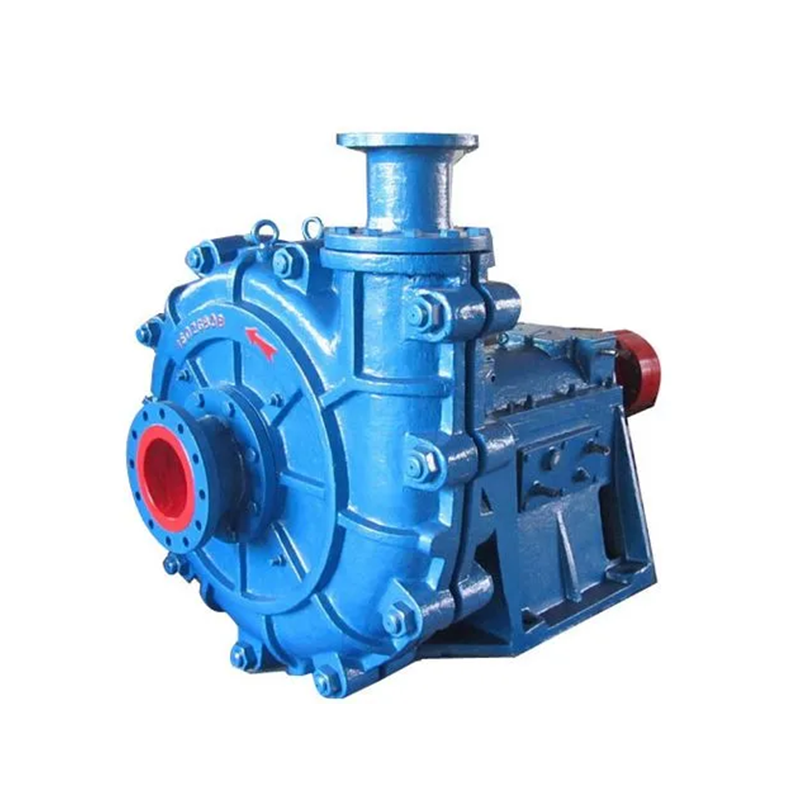

ZGB Series Slurry Pump

ZGB slurry pump adopts multiple speeds and multiple variants to make the pump run in industrial and mining environments. It has a long service life and high operating efficiency, and can meet a variety of harsh transportation conditions. It has significant advantages such as long life of wearing parts, high efficiency, low energy consumption, easy maintenance, low operating costs, and high reliability.

info@cn-pumps.cn

Pump Model	bracket	Shaft seal water volume (L/s)	Shaft seal water interface	Bracket cooling water interface	Bracket cooling water pressure
65ZGB	320	0.5	1/4"	1/2"、3/8"	0.05-0.2 MPa
80ZGB100ZGB	406	0.7	1/2"	3/4”、1/2"
80ZGB100ZGB	406A	0.7	1/2"	3/4”、1/2"
150ZGB200ZGB	565	1.2	1/2"	3/4"、3/4”
150ZGB200ZGB	565A		1/2"
250ZGB300ZGB	743		1"
250ZGB	743A		1"

model	Power P(KW)	flow Q(m³/h)	Lift H(m)	Speed n(r/min)	Highest efficiency η%	NPSH (m)	Impeller diameter D(mm)	weight（kg)
65ZGB	30-55	56-120	61-58	1480	47-62	4.5-3	390	1850
65ZGB	11-15	37-76	25-26	980	47-62	2.0-1.3	390	1850
80ZGB	90-132	100-210	91-87	1480	48-66	5.2-2.7	485	2500
	22-37	68-135	40-38	980	48-66	1.2-2.3	485	2500
	75-90	93-187	77-73	1480	48-66	4.4-2.3	445	2500
	18.5-30	61-126	34-32	980	48-66	1.9-1.0	445	2500
	55-75	82-168	63-59	1480	48-66	3.5-1.8	400	2500
	15-18.5	55-115	27-26	980	48-66	1.5-0.8	400	2500
100ZGB	132-200	209-420	93-85	1480	57-78	6-2.6	500	3000
	37-75	139-278	40-37	980	57-78	2.7-2.1	500	3000
	90-160	187-378	78-68	1480	57-78	4.9-2.1	450	3000
	30-45	125-252	33-30	980	57-78	2.1-1.1	450	3000
	75-110	168-336	59-55	1480	57-78	3.8-1.7	400	3000
	18.5-30	110-230	26-24	980	57-78	1.7-0.8	400	3000
150ZGB	185-315	360-720	92-86	980	53-78	3.8-2.7	740	3450
	90-160	272-544	52-49	740	53-78	2.2-1.5	740	3450
	160-250	328-656	80-74	980	53-78	3.3-2.3	685	3450
	75-110	252-505	46-42	740	53-78	1.9-1.3	685	3450
	110-200	305-610	67-64	980	53-78	2.8-1.1	630	3450
	55-90	233-466	38-36	740	53-78	1.6-0.6	630	3450
200ZGB	355-450	600-1000	96-92	980	76-63	6.7-2.7	740	4000
	160-250	475-870	55-53	740	76-63	3.8-1.5	740	4000
	280-400	560-950	81-77	980	76-63	60.-2.4	700	4000
	132-200	450-839	48-46	740	76-63	3.4-1.4	700	4000
	220-250	519-940	68-64	980	76-63	5.0-2.0	640	4000
	110-160	389-800	41-39	740	76-63	2.9-1.1	640	4000
250ZGB	500-560	704-1408	95-85	980	78-63	7.3-3.3	740	4500
	185-250	524-1050	54-49	740	78-63	4.2-1.9	740
	355-450	648-1296	82-74	980	78-63	7.1-3.0	700	4500
	160-200	493-985	47-44	740	78-63	4.0-1.7	700	4500
	250-355	597-1193	69-64	980	78-63	5.5-2.5	645	4500
	110-160	453-907	40-36	740	78-63	3.1-1.4	645	4500
300ZGB	450-710	960-1919	95-86	980	81-68	6.9-3.5	760	5500
	200-355	724-1450	54-49	740	81-68	3.9-2.0	760
	355-560	888-1775	82-73	980	81-68	5.9-3.0	703	5500
	160-280	640-1341	42-46	740	81-68	3.4-1.7	703	5500
	280-500	816-1632	69-62	980	81-68	5.0-2.5	646	5500
	132-220	616-1232	39-35	740	81-68	2.9-1.4	646	5500
