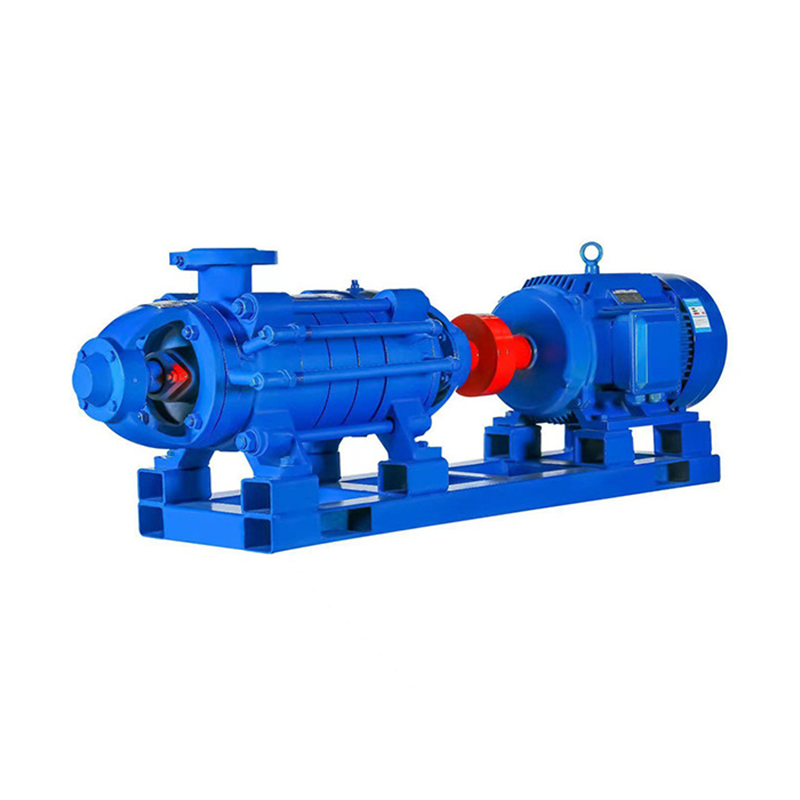

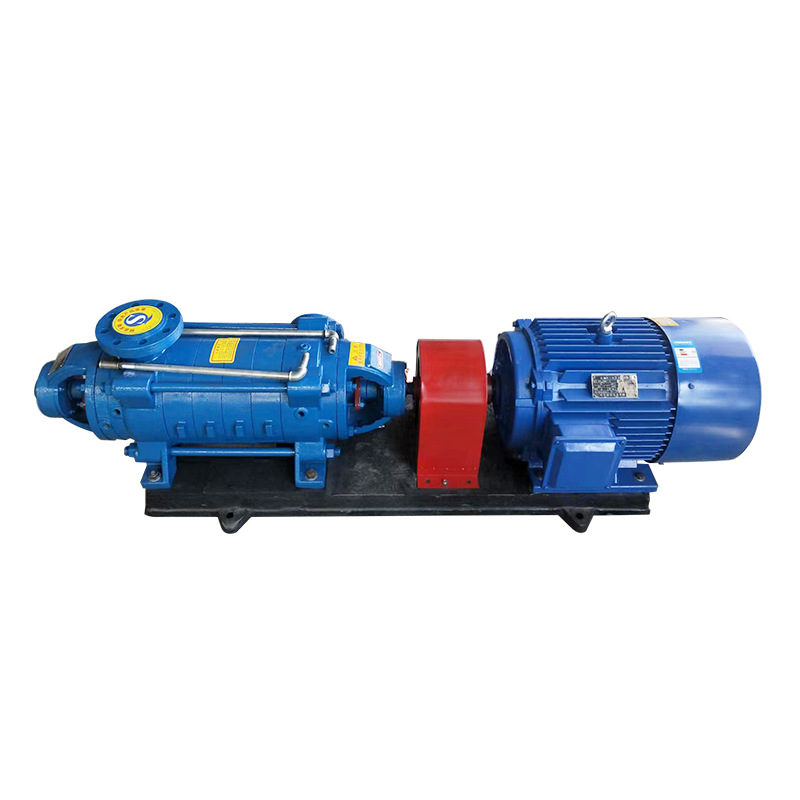

D type DG type MD type DY type multistage centrifugal pump

D, DG, MD, DY multistage centrifugal pumps are segmental multistage centrifugal pumps that adopt energy-saving hydraulic models and have the advantages of energy saving, wide performance range, safe and stable operation, low noise, long life, and easy installation and maintenance. By changing the material of the pump (or the material of the flow-through part of the pump), the sealing form and adding a cooling system, it can transport hot water, oils, corrosive and abrasive media, etc.

info@cn-pumps.cn

parameter	flow	Lift	Speed	Shaft power	With electric motor	efficiency	Must steam	Impeller name	In and Out	Pump weight	-	-
model	Q	H	n	Pa	With electric motor	η	erosion margin	Mean diameter	caliber	Pump weight	-	-
power	model	-	-	-	-	-	-	-	-	-	-	-
m3/s	L/s	m	r/min	kw	kw	%	m	mm	mm	kg	-	-
D6-25×3	3.75	1.04	76.5	2950	2.3	5.5	Y132S1-2	34	2	138	40	90
	6.3	1.75	75		2.77			46.5	2
	7.5	2.08	73.5		3.12			50	2.5
D6-25×4	3.75	1.04	102	2950	3.06	7.5	Y132S1-2	34	2	138	40	100
	6.3	1.75	100		3.69			46.5	2
	7.5	2.08	98		4			50	2.5
D6-25×5	3.75	1.04	127.5	2950	3.83	7.5	Y132S1-2	34	2	138	40	110
	6.3	1.75	125		4.61			46.5	2
	7.5	2.08	122.5		5			50	2.5
D6-25×6	3.75	1.04	153	2950	4.59	11	Y160M1-2	34	2	138	40	120
	6.3	1.75	150		5.54			46.5	2
	7.5	2.08	147		6			50	2.5
D6-25×7	3.75	1.04	178.5	2950	5.36	11	Y160M1-2	34	2	138	40	130
	6.3	1.75	175		6.46			46.5	2
	7.5	2.08	171.5		7			50	2.5
D6-25×8	3.75	1.04	204	2950	6.12	15	Y160M2-2	34	2	138	40	140
	6.3	1.75	200		7.38			46.5	2
	7.5	2.08	196		8			50	2.5
