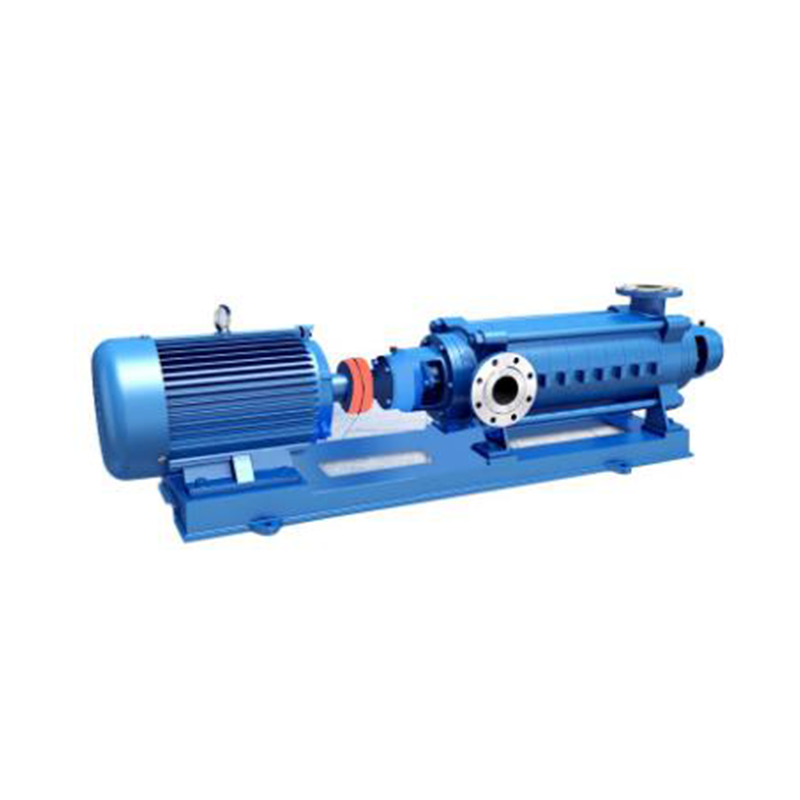

D type DG type MD type DY type multistage centrifugal pump

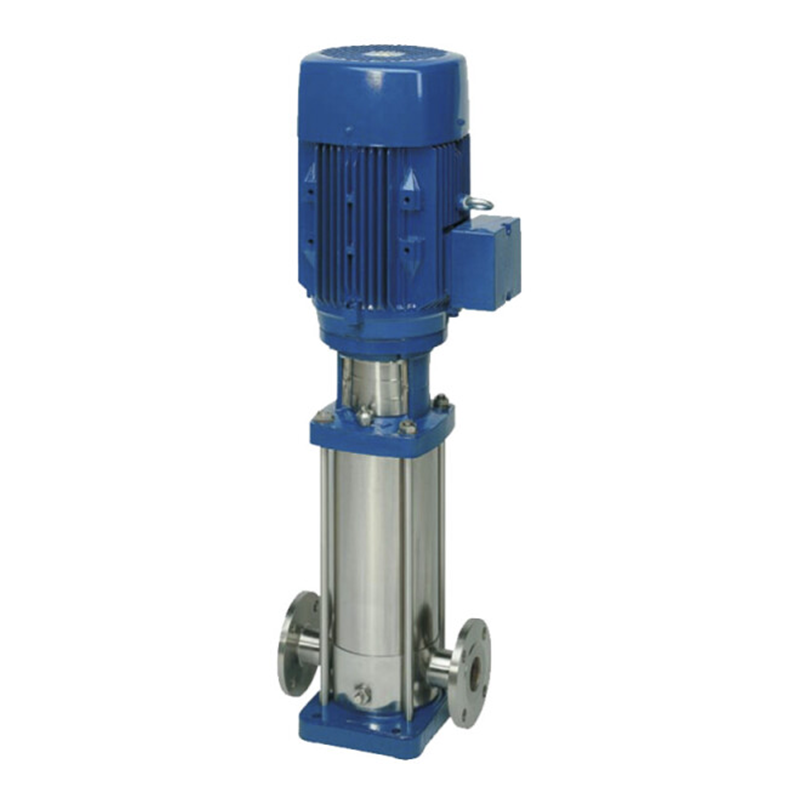

GDF vertical stainless steel multistage pump

GDL vertical pipeline multistage centrifugal pump

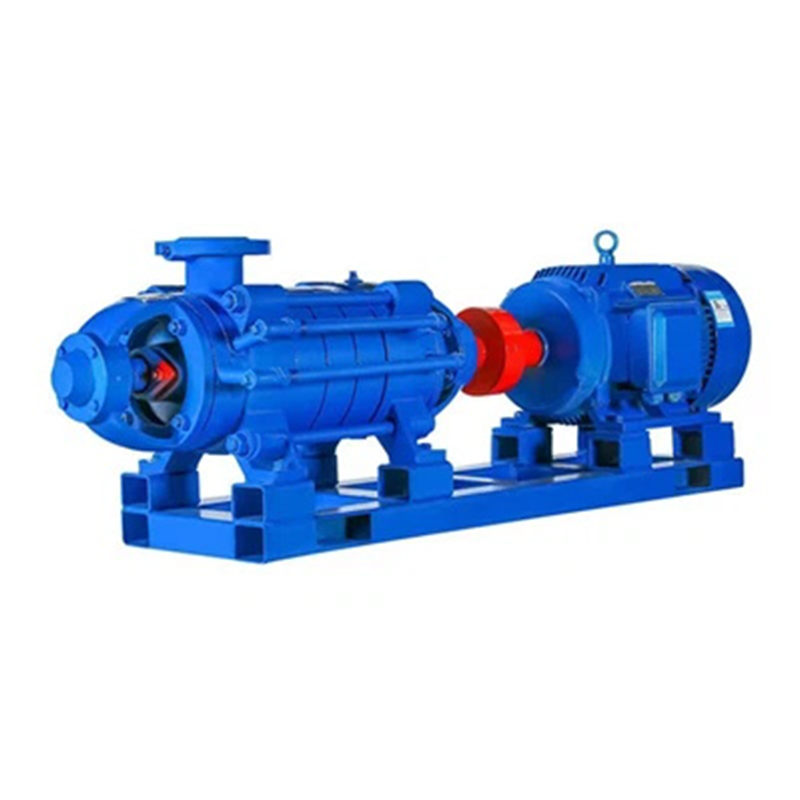

DF type stainless steel horizontal multistage centrifugal pump

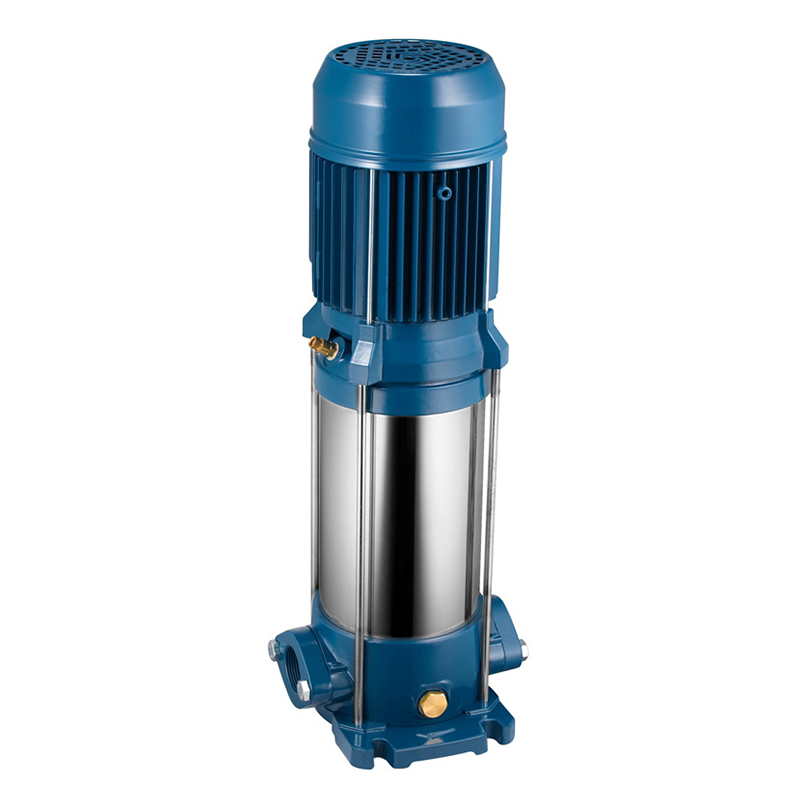

CDLF light vertical multistage pump

ZX Series Self-priming Centrifugal Pump

FB type corrosion resistant pump

CZ type corrosion resistant alloy centrifugal pump

FY vertical submersible pump

IHF Fluoroplastic Lined Centrifugal Pump

IH chemical pump

ZA Petrochemical Process Pump

ISG series vertical centrifugal pump

ISW Series Horizontal Centrifugal Pump

IS type centrifugal pump

S, SH type double suction centrifugal pump

ZX Series Self-priming Centrifugal Pump

ISGB series detachable centrifugal pump

Multi-suction head vertical anti-silt sewage pump

PN horizontal mud pump

PNJ, PNJF rubber pump

YZ new centrifugal mud pump

PN(L) Mud Pump

DT desulfurization pump

STR(L) desulfurization pump

Fluorine lined anti-corrosion desulfurization pump

WD (F), WG (F) sewage pump

YW type submersible sewage pump

ZW self-priming sewage pump

LW vertical sewage pump

PW (F), PWL sewage pump

QW (WQ) submersible sewage pump

AS_AV type tear submersible sewage pump

AHR Rubber Slurry Pump

M.AH.HH slurry pump

SP Series Submersible Slurry Pump

ZD Series Single Shell Slurry Pump

ZGB Series Slurry Pump

ZJL Series Submersible Slurry Pump

ZJW filter press feed pump

ZJ Industrial Slurry Pump

ZJ type slurry pump

AF Foam Pump

YW type submersible sewage pump

SP Series Submersible Slurry Pump

ZJL Series Submersible Slurry Pump

FY vertical submersible pump

YZ new centrifugal mud pump

PN(L) Mud Pump

Production center

Company Profile

Company Culture

Honor

Blogs

Service market

Cooperation Process

Client Service
and Technical Support

Contact Information

Online Message

Home Product GDL vertical pipeline multistage centrifugal pump

View All Categories

Product Center

Multistage pump

Chemical pumps

Centrifugal Pumps

Mud pump

Desulfurization pump

Sewage pump

Slurry pump

Submersible pump

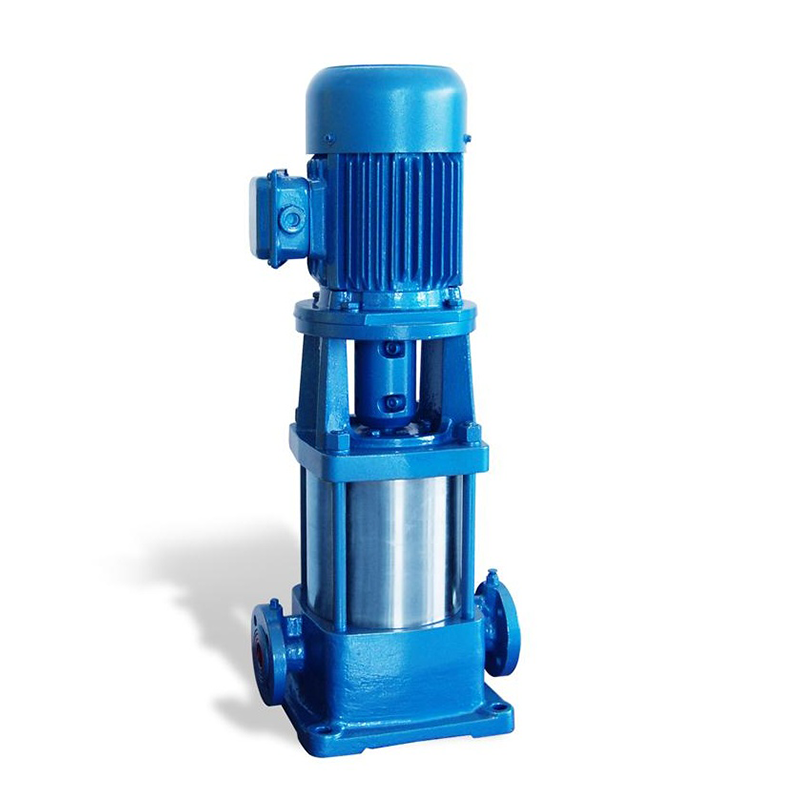

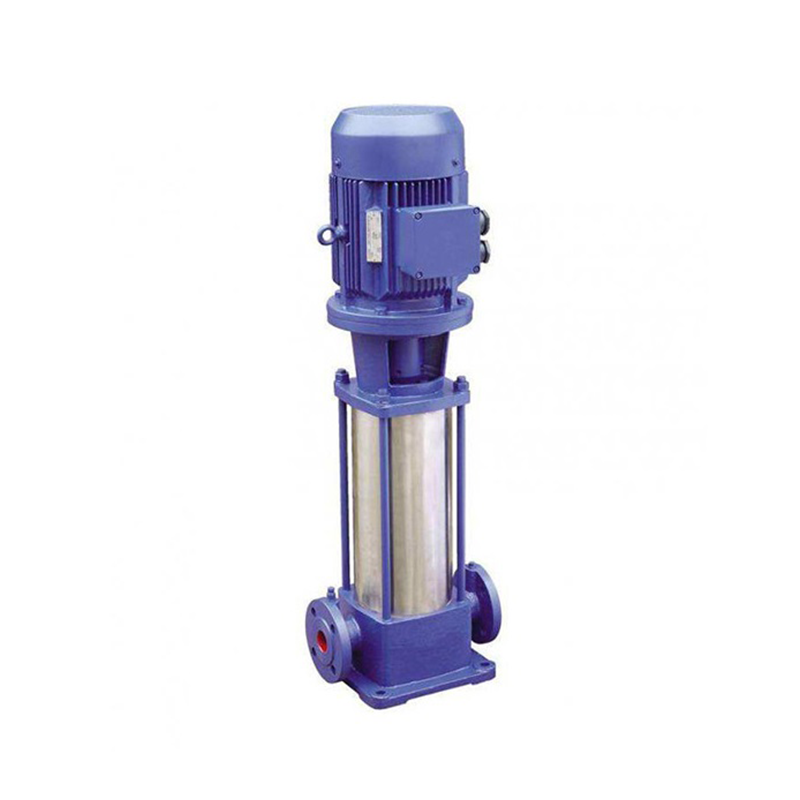

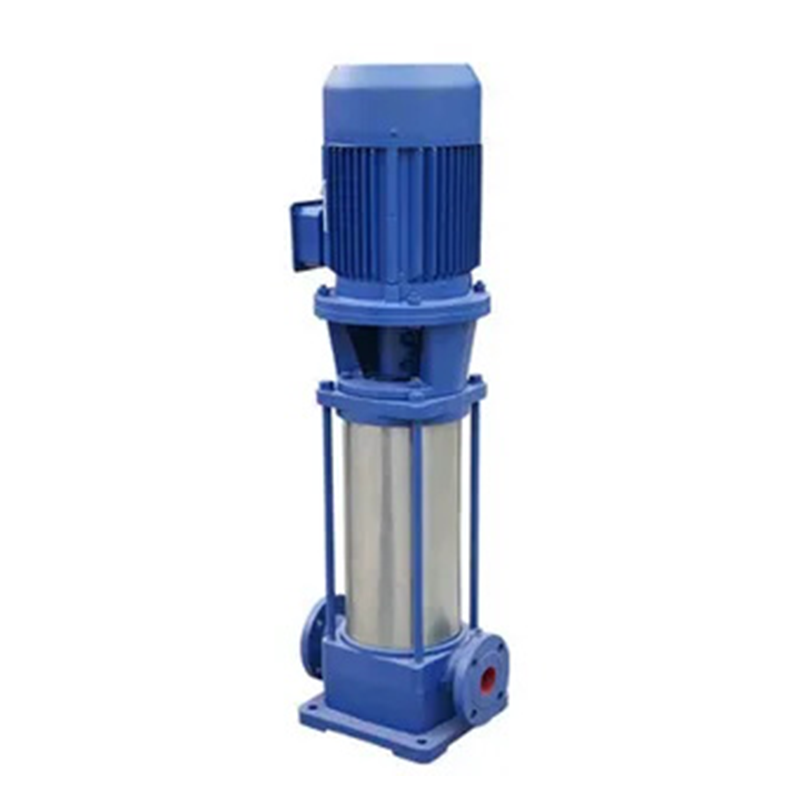

GDL vertical pipeline multistage centrifugal pump

GDL multi-stage pipeline centrifugal pump complies with the use requirements and fire-related standards, and is designed and manufactured according to JB/TQ6435-92 standard.

info@cn-pumps.cn

model	flow		Lift	efficiency	Speed	Power(kw)		Cavitation allowance	Inlet and outlet diameter	high	weight	high
			(m)	(%)	(r/min)					H	Kg	H1
	m3/h	L/S				Shaft power	Motor power			(mm)		(mm)
25GDL2-12×3	1.4	0.39	38	23	2900	0.63	1.1	1.4	25	606	58	125
	2	0.56	36	30		0.65		1.7
	2.4	0.67	33	32		0.67		1.8
25GDL2-12×4	1.4	0.39	50	23	2900	0.83	1.1	1.4	25	646	62	165
	2	0.56	48	30		0.87		1.7
	2.4	0.67	44	32		0.9		1.8
25GDL2-12×5	1.4	0.39	63	23	2900	1.04	1.5	1.4	25	711	68	205
	2	0.56	60	30		1.09		1.7
	2.4	0.67	55	32		1.12		1.8
25GDL2-12×6	1.4	b.39	76	23	2900	1.26	1.5	1.4	25	751	72	245
	2	0.56	72	30		1.3		1.7
	2.4	0.67	66	32		1.35		1.8
25GDL2-12×7	1.4	0.39	88	23	2900	1.46	2.2	1.4	25	816	78	285
	2	0.56	84	30		1.52		1.7
	2.4	0.67	77	32		1.57		1.8
25GDL2-12×8	1.4	0.39	101	23	2900	1.63	2.2	1.4	25	856	82	325
	2	0.56	96	30		1.74		1.7
	2.4	0.67	88	32		1.8		1.8
25GDL2-12×9	1.4	0.39	114	23	2900	1.89	2.2	1.4	25	896	86	365
	9	0.56	108	30		1.96		1.7
	2.4	0.67	99	32		2.02		1.8
25GDL2-12×10	1.4	0.39	126	23	2900	2.01	3	1.4	25	981	98	405
	2	0.56	120	30		2.17		1.7
	2.4	0.67	110	32		2.24		1.8
25GDL2-12×11	1.4	0.39	139	23	2900	2.31	3	1.4	25	1021	102	445
	9	0.56	132	30		2.39		1.7
	2.4	0.67	121	32		2.47		1.8
25GDL2-12×12	1.4	0.39	152	23	2900	2.52	3	1.4	25	1061	106	485
	2	0.56	144	30		2.61		1.7
	2.4	0.67	132	32		2.7		1.8
25GDL4-11×3	2.8	0.78	36	32	2900	0.86	1.1	1.4	25	606	58	125
	4	1.11	33	40		0.9		1.7
	4.8	1.33	28.5	41		0.91		1.8
25GDL4-11×4	2.8	0.78	48	32	2900	1.14	1.5	1.4	25	671	65	165
	4	1.11	44	40		1.2		1.7
	4.8	1.33	38	41		1.21		1.8
25GDL4-11×5	2.8	0.78	60	32	2900	1.43	2.2	1.4	25	736	72	205
	4	1.11	55	40		1.5		1.7
	4.8	1.33	47.5	41		1.51		1.8
25GDL4-11×6	2.8	0.78	72	32	2900	1.72	2.2	1.4	25	776	76	245
	4	1.11	66	40		1.8		1.7
	4.8	1.33	57	41		1.82		1.8
25GD14-11×7	2.8	0.78	84	32	2900	2	3	1.4	25	861	86	285
	4	1.11	77	40		2.1		1.7
	4.8	1.33	66.5	41		2.1_2		1.8
25GDL4-11×8	2.8	0.78	96	32	2900	2.29	3	1.4	25	901	90	325
	4	1.11	88	40		2.4		1.7
	4.8	1.33	76	41		2.42		1.8
25GDL4-11×9	2.8	0.78	108	32	2900	2.57	3	1.4	25	941	94	365
	4	1.11	99	40		2.7		1.7
	4.8	1.33	85.5	41		2.73		1.8
25GDL4-11×10	2.8	0.78	120	32	2900	2.86	4	1.4	95	1011	110	405
	4	1.11	110	40		3		1.7
	4.8	1.33	95	41		3.03		1.8
25GDL4-11×11	2.8	0.78	132	32	2900	3.14	4	1.4	25	1051	114	445
	4	1.11	121	40		3.3		1.7
	4.8	1.33	104.5	41		3.33		1,8
25GDL4-11×12	2.8	0.78	144	32	2900	3.43	4	1.4	25	1091	118	485
	4	1.11	132	40		3.6		1.7
	4.8	1.33	114	41		3.64		1.8
25GDL4-11×13	2.8	0.78	156	32	2900	3.72	4	1.4	25	1131	122	525
	4	1.11	143	40		3.9		1.7
	4.8	1.33	123.5	41		3.94		1.8
