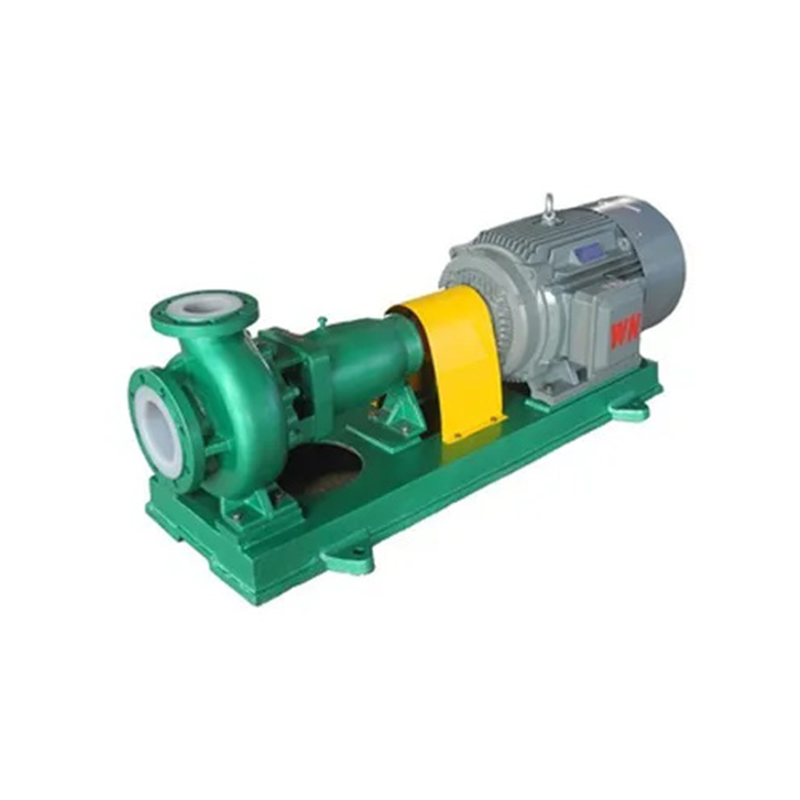

Fluorine lined anti-corrosion desulfurization pump
Fluorine-lined anti-corrosion desulfurization pumps are widely used in power, chemical, steel, mining and other industries. They are mainly used to transport highly corrosive slurries in desulfurization and denitrification systems, such as limestone slurry, gypsum slurry, sulfuric acid and other corrosive media, and are suitable for handling media containing solid particles. The pump has good corrosion resistance and wear resistance, ensuring long-term stable operation under harsh working conditions.
- Material:
The flow-through parts are made of high-strength fluorine-lined material and lined with polytetrafluoroethylene (PTFE), which has excellent corrosion resistance and can withstand strong corrosive media such as acids and alkalis. The outer shell is made of ductile iron or stainless steel to ensure mechanical strength and stability.
- Model meaning:
For example, 100FL-I-A40
100: outlet diameter is 100mm
FL: fluorine-lined anti-corrosion pump
I: single-stage centrifugal pump, two-stage pump is marked as II
A: number of impeller blades. A is 5, B is 4, C is 3, and F is 6
40: impeller diameter is 40cm
- Features and uses:
The fluorine-lined anti-corrosion desulfurization pump produced by Lantu Company combines modern fluid mechanics and advanced material technology, and has the following characteristics:
Excellent corrosion resistance: Suitable for conveying highly corrosive media, especially maintaining excellent corrosion resistance and anti-permeability under high temperature and high pressure conditions.
High efficiency and energy saving: Through the optimized hydraulic design, the operating efficiency of the pump is improved, energy consumption is reduced, and costs are saved.
Compact structure: The pump body adopts a double pump shell design, the outer shell is sturdy and durable, and the lining parts can be disassembled and replaced, which is convenient for maintenance and prolongs the service life.
Reliable operation: It has good wear resistance, suitable for long-term stable operation, low vibration and low noise, and is suitable for harsh working conditions in the industrial field.
- Scope of application:
Fluorine-lined anti-corrosion desulfurization pumps are widely used in power, steel, chemical, mining and other industries, especially in thermal power plants and steel mill desulfurization systems, for conveying highly corrosive liquids such as limestone slurry, gypsum slurry, sulfuric acid, etc. This pump exhibits excellent corrosion resistance and wear resistance when conveying acid, alkali and other media in chemical production.
- Sealing type:
Fluorine-lined anti-corrosion desulfurization pumps can be sealed in two forms: mechanical seal and auxiliary impeller plus packing combination seal. According to different working conditions, the outlet position of the pump can be rotated to eight different angles at 45-degree intervals for installation and use.
- Product Model
| model | Flow rate (m³/h) | Lift (m) | Speed (rpm) | Motor power (kW) | Diameter (mm) | Material |
| FSB-L 50-32-160 | 15 | 32 | 2900 | 4 | 50×32 | Fluorine lining |
| FSB-L 65-50-160 | 30 | 32 | 2900 | 5.5 | 65×50 | Fluorine lining |
| FSB-L 80-65-200 | 50 | 50 | 2900 | 11 | 80×65 | Fluorine lining |
| FSB-L 100-80-200 | 100 | 50 | 2900 | 15 | 100×80 | Fluorine lining |
| FSB-L 150-125-250 | 300 | 60 | 2900 | 45 | 150×125 | Fluorine lining |
| FSB-L 200-150-315 | 500 | 80 | 2900 | 75 | 200×150 | Fluorine lining |
