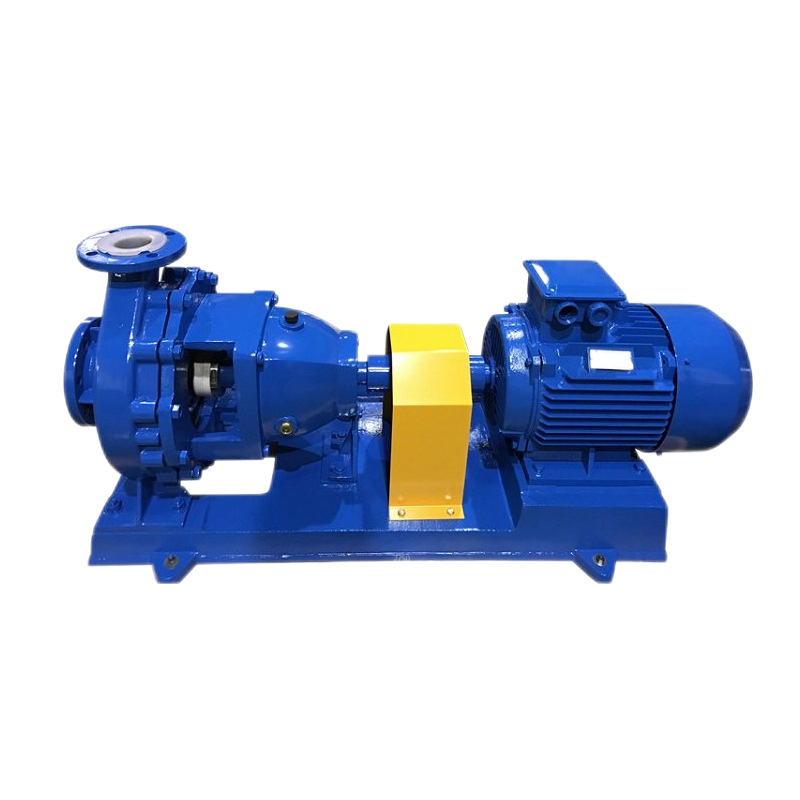

IH chemical pump

IH chemical pump is a single-stage single-suction cantilever centrifugal pump. Its rated performance points and size equivalents are marked according to standard ISO2858-1975 (E). It is suitable for conveying corrosive media with a temperature of -20℃ to 105℃ or media with physical and chemical properties similar to water in chemical, petroleum, metallurgy, power stations, food, pharmaceuticals, synthetic fibers and other departments.

info@cn-pumps.cn

model	Speed	Flow rate (m3/h)	Flow rate (L/S)	Lift	efficiency	Shaft power	Power			NPSH(m)	weight
				(m)	(%)	(Kw)	Medium density				(kg)
							1	1.35	1.85
IH50-32-125	2900	12.5	3.47	20	51	1.33	2.2	6	4	2	45
IH50-32-125	1450	6.3	1.74	5	45	0.19	0.55	0.55	0.55	2	45
IH50-32-160	2900	12.5	3.47	32	46	2.37	3	4	5.5	2	49
IH50-32-160	1450	6.3	1.74	8	40	0.34	0.55	0.75	1.1	2	49
IH50-32-200	2900	12.5	3.47	50	39	4.36	5.5	7.5	11	2	59
IH50-32-200	1450	6.3	1.74	12.5	33	0.65	1.1	1.1	1.5	2	59
IH50-32-250	2900	12.5	3.47	80	33	8.25	11	15	18.5	2	93
IH50-32-250	1450	6.3	1.74	20	27	1.27	2.2	2.2	3	2	93
IH65-50-125	2900	25	1.53	2	62	2.2	3	4	5.5	2	47
IH65-50-125	1450	12.5	6.94	5	55	0.31	0.55	0.55	0.75	2	47
IH65-50-160	2900	25	2.78	32	57	3.82	5.5	7.5	11	2	53
IH65-50-160	1450	12.5	6.94	8	51	0.53	0.75	1.1	1.5	2	53
IH65-40-200	2900	25	2.92	50	52	6.55	11	11	15	2	63
IH65-40-200	1450	12.5	6.94	12.5	46	0.93	1.5	2.2	2.2	2	63
IH65-40-250	2900	25	2.92	80	46	46	15	3	30	2	99
IH65-40-250	1450	12.5	6.94	20	39	39	2.2	37	4	2	99
IH65-40-315	2900	25	3.06	125	39	39	30	5.5	55	2	116
IH65-40-315	1450	12.5	6.94	32	33	33	5.5	5.5	7.5	2	116
IH80-65-125	2900	50	13.9	20	69	3.95	5.5	7.5	11	3	52
IH80-65-125	1450	25	6.94	5	64	0.53	0.75	1.1	1.5	2.5	52
IH80-65-160	2900	50	13.9	32	67	6.5	11	11	15	2.3	57
IH80-65-160	1450	25	6.94	8	62	0.88	1.5	1.5	2.2	2.3	57
IH80-50-200	2900	50	13.9	50	63	10.8	15	18.5	30	2.5	65
IH80-50-200	1450	25	6.94	12.5	54	0.83	1.1	1.5	2.2	2	65
IH80-50-250	2900	50	13.9	80	58	18.8	30	37	45	2.5	103
IH80-50-250	1450	25	6.94	20	52	2.62	4	5.5	7.5	2	103
IH80-50-315	2900	50	13.9	125	52	32.73	45	55	75	2	121
IH80-50-315	1450	25	6.94	32	48	4.54	7.5	7.5	11	2	121
IH100-80-125	2900	100	27.8	20	73	7.47	11	15	18.5	4.5	57
IH100-80-125	1450	50	13.9	5	68	1	1.5	2.2	3	3.5	57
IH100-80-160	2900	100	27.8	32	73	11.9	15	22	30	4.3	87
IH100-80-160	1450	50	13.9	8	69	1.58	2.2	3	4	3.4	87
IH100-65-200	2900	100	27.8	50	72	18.9	30	37	45	3.9	96
IH100-65-200	1450	50	13.9	12.5	68	2.5	3	4	5.5	2.5	96
IH100-65-250	2900	100	27.8	80	68	32	45	55	75	3.6	115
IH100-65-250	1450	50	13.9	20	63	4.3	5.5	7.5	11	2.5	115
IH100-65-315	2900	100	55.6	125	62	54.9	75	90	132	3.2	166
IH100-65-315	1450	50	27.8	32	58	7.5	11	15	18.5	2	166
IH125-100-200	2900	200	55.6	50	77	35.4	45	55	90	5	99
IH125-100-200	1450	100	27.8	12.5	73	4.66	7.5	11	15	2.9	99
IH125-100-250	2900	200	55.6	80	75	58.1	11	110	132	4.5	151
IH125-100-250	1450	100	27.8	20	72	7.56	132	15	18.5	2.3	151
IH125-100-315	2900	200	55.6	125	72	94.56	18.5	160	220	4.5	166
IH125-100-315	1450	100	27.8	32	65	13.41	18.5	22	30	2.8	166
IH125-100-400	1450	100	27.8	50	55	14.74	18.5	30	37	2.5	211
IH150-125-250	1450	200	55.6	20	77	14.1	30	30	37	2.5	165
IH150-125-315	1450	200	55.6	32	75	23.2	30	37	55	2.8	196
IH150-125-400	1450	200	55.6	50	70	38.9	55	75	90	2.8	238
IH200-150-250	1450	400	111.1	20	77	28.3	37	55	75	2.5	195
IH200-150-315	1450	400	111	32	79	44.1	55	75	110	4	269
IH200-150-400	1450	400	111	50	78	39.8	90	132	160	3.5	290
