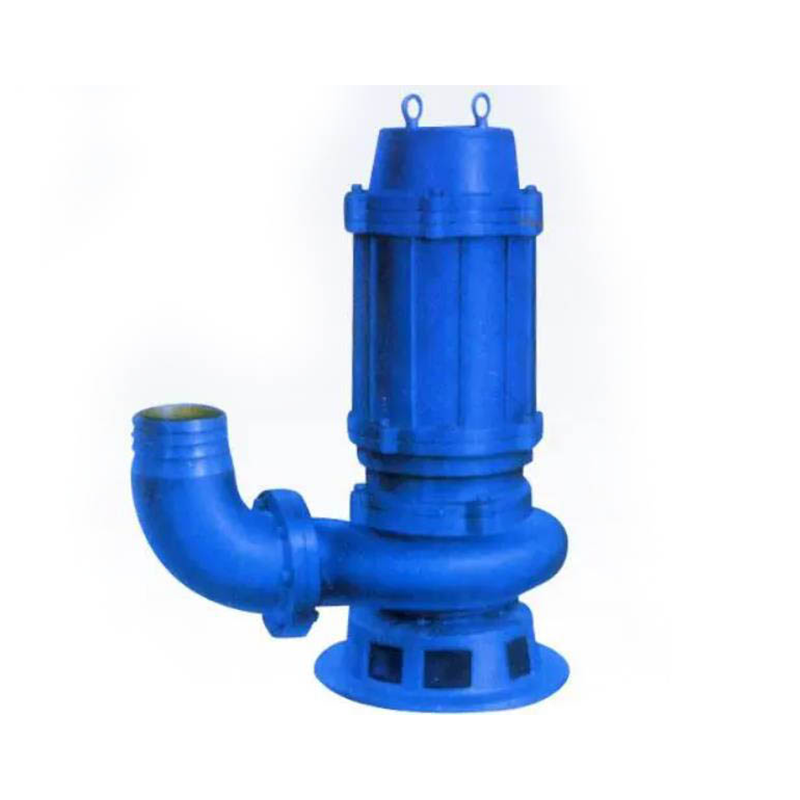

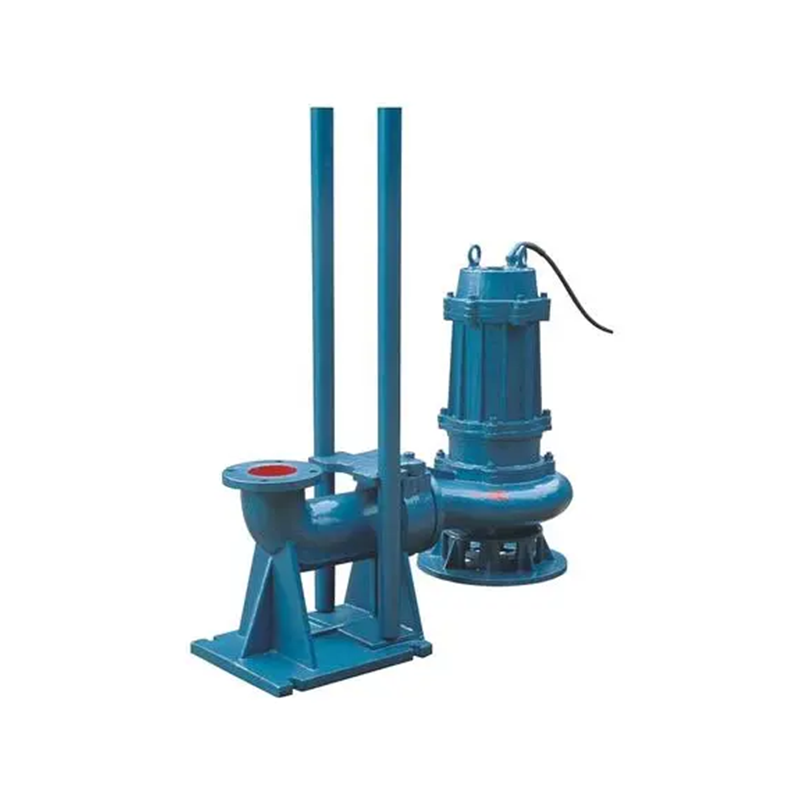

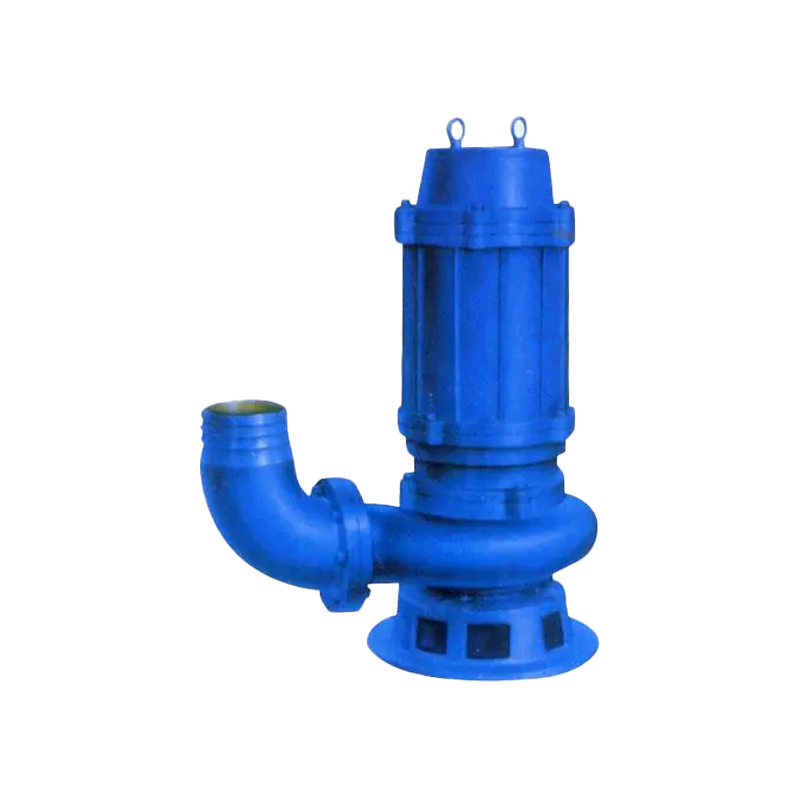

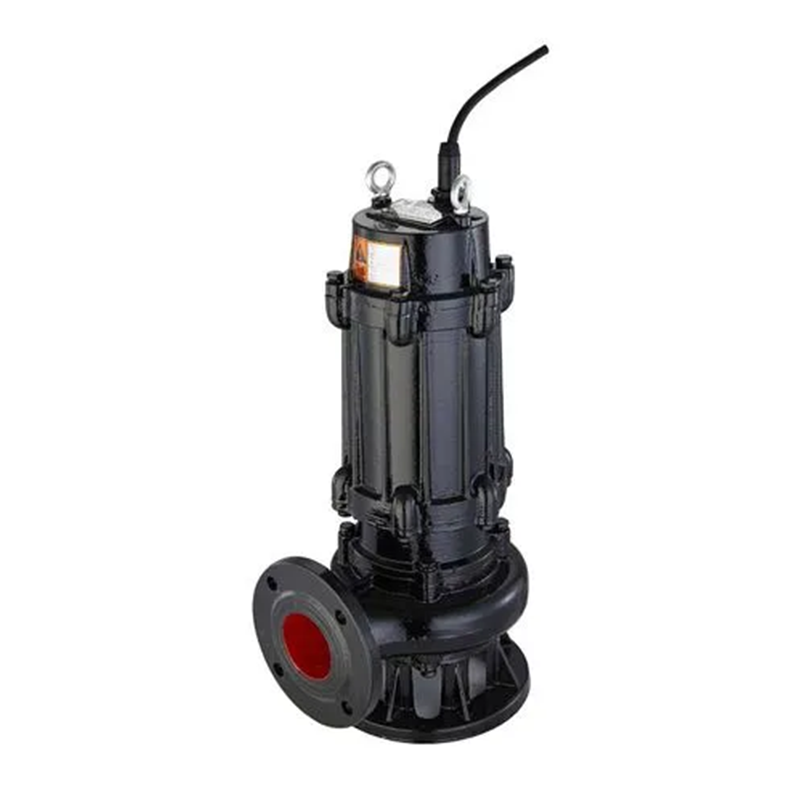

QW (WQ) submersible sewage pump
The QW (WQ) submersible sewage pump adopts a unique single-blade or double-blade impeller structure, which greatly improves the sewage passing capacity and can effectively pass fibrous materials 5 times the pump diameter and solid particles with a diameter of about 50% of the pump diameter. The mechanical seal adopts a new hard and corrosion-resistant titanium tungsten material, which can make the pump run safely and continuously for more than 8,000 hours. The overall structure is compact, small in size, low in noise, and has significant energy-saving effects. It is easy to repair and maintenance. There is no need to build a pump room. It can work by submerging in water, which greatly reduces the project cost.
For example: 40QW(WQ)15-30-2.2
40-caliber (mm)
QW(WQ)-submersible sewage pump
15-flow rate (m3/h)
30-lift (m)
2.2-motor power (kw)
It is suitable for conveying sewage and dirt with particles in industries such as chemical, petroleum, pharmaceutical, mining, papermaking, cement plants, steel mills, power plants, coal processing industries, as well as drainage systems of urban sewage treatment plants, municipal engineering, construction sites, etc. It is also used to pump clean water and corrosive media.
type | Flow Q | Lift | efficiency | Speed | Motor power | Allowable NPSH | |
m/h | l/s | m | % | r/min | KW | m | |
1 | 25 WQ 8-22-1.1 | 25 | 8 | 22 | 1.1 | 2900 | 38.5 |
2 | 32 WQ 12-15-1.1 | 32 | 12 | 15 | 1.1 | 2900 | 40 |
3 | 40 WQ 15-15-1.5 | 40 | 15 | 15 | 1.5 | 2900 | 45.1 |
4 | 40 WQ 15-30-2.2 | 40 | 15 | 30 | 2.2 | 2900 | 48 |
5 | 50 WQ 20-7-0.75 | 50 | 20 | 7 | 0.75 | 2900 | 54 |
6 | 50 WQ 10-10-0.75 | 50 | 10 | 10 | 0.75 | 2900 | 56 |
7 | 50 WQ 20-15-1.5 | 50 | 20 | 15 | 1.5 | 2900 | 55 |
8 | 50 WQ 15-25-2.2 | 50 | 15 | 25 | 2.2 | 2900 | 56 |
9 | 50 WQ 25-20-2.2 | 50 | 25 | 20 | 2.2 | 2900 | 56 |
10 | 50 WQ 18-30-3 | 50 | 18 | 30 | 3 | 2900 | 58 |
11 | 50 WQ 25-32-5.5 | 50 | 25 | 32 | 5.5 | 2900 | 53 |
12 | 50 WQ 20-40-7.5 | 50 | 20 | 40 | 7.5 | 2900 | 55 |
13 | 65 WQ 25-15-2.2 | 65 | 25 | 15 | 2.2 | 2900 | 52 |
14 | 65 WQ 37-13-3 | 65 | 37 | 13 | 3 | 2900 | 55 |
15 | 65 WQ 25-30-4 | 65 | 25 | 30 | 4 | 2900 | 58 |
16 | 65 WQ 30-40-7.5 | 65 | 30 | 40 | 7.5 | 2900 | 56 |
17 | 65 WQ 35-50-11 | 65 | 35 | 50 | 11 | 2900 | 60 |
18 | 65 WQ 35-60-15 | 65 | 35 | 60 | 15 | 2900 | 63 |
19 | 80 WQ 40-7-2.2 | 80 | 40 | 7 | 2.2 | 1450 | 52 |
20 | 80 WQ 43-13-3 | 80 | 43 | 13 | 3 | 2900 | 50 |
21 | 80 WQ 40-15-4 | 80 | 40 | 15 | 4 | 2900 | 57 |
22 | 80 WQ 65-25-7.5 | 80 | 65 | 25 | 7.5 | 2900 | 56 |
23 | 100 WQ 80-10-4 | 100 | 80 | 10 | 4 | 1450 | 62 |
24 | 100 WQ 110-10-5.5 | 100 | 110 | 10 | 5.5 | 1450 | 66 |
25 | 100 WQ 100-15-7.5 | 100 | 100 | 15 | 7.5 | 1450 | 67 |
26 | 100 WQ 80-20-7.5 | 100 | 80 | 20 | 7.5 | 1450 | 68 |
27 | 100 WQ 100-25-11 | 100 | 100 | 25 | 11 | 1450 | 65 |
28 | 100 WQ 100-30-15 | 100 | 100 | 30 | 15 | 1450 | 66 |
29 | 100 WQ100-35-18.5 | 100 | 100 | 35 | 18.5 | 1450 | 65 |
30 | 125 WQ 100-15-11 | 125 | 100 | 15 | 11 | 1450 | 62 |
31 | 125 WQ 130-20-15 | 125 | 130 | 20 | 15 | 1450 | 63 |
32 | 150 WQ 145-9-7.5 | 150 | 145 | 9 | 7.5 | 1450 | 63 |
33 | 150 WQ 180-15-15 | 150 | 180 | 15 | 15 | 1450 | 65 |
34 | 150 WQ 180-20-18.5 | 150 | 180 | 20 | 18.5 | 1450 | 75 |
35 | 150 WQ 180-25-22 | 150 | 180 | 25 | 22 | 1450 | 76 |
36 | 150 WQ 130-30-22 | 150 | 130 | 30 | 22 | 1450 | 75 |
37 | 150 WQ 180-30-30 | 150 | 180 | 30 | 30 | 1450 | 73 |
38 | 150 WQ 200-30-37 | 150 | 200 | 30 | 37 | 1450 | 70 |
39 | 150 WQ 160-45-37 | 150 | 160 | 37 | 37 | 1450 | 70 |
40 | 200 WQ 300-7-11 | 200 | 300 | 7 | 11 | 980 | 73 |
41 | 200 WQ 250-11-15 | 200 | 250 | 11 | 15 | 980 | 74 |
42 | 200 WQ 250-15-18.5 | 200 | 250 | 15 | 18.5 | 1450 | 72 |
43 | 200 WQ 400-10-22 | 200 | 400 | 10 | 22 | 1450 | 76 |
44 | 200 WQ 400-13-30 | 200 | 400 | 13 | 30 | 1450 | 73 |
45 | 200 WQ 300-15-22 | 200 | 300 | 15 | 22 | 1450 | 73 |
46 | 200 WQ 250-22-30 | 200 | 250 | 22 | 30 | 1450 | 71 |
47 | 200 WQ 350-25-37 | 200 | 350 | 25 | 37 | 1450 | 75 |
48 | 200 WQ 400-30-55 | 200 | 400 | 30 | 55 | 1450 | 70 |
49 | 250 WQ 600-9-30 | 250 | 600 | 9 | 30 | 980 | 74 |
50 | 250 WQ 600-12-37 | 250 | 600 | 12 | 37 | 1450 | 78 |
51 | 250 WQ 600-15-55 | 250 | 600 | 15 | 55 | 1450 | 75 |
52 | 250 WQ 600-20-55 | 250 | 600 | 20 | 55 | 1450 | 73 |
53 | 300 WQ 500-15-45 | 300 | 500 | 15 | 45 | 980 | 70 |
54 | 300 WQ 800-15-55 | 300 | 800 | 15 | 55 | 980 | 73 |
55 | 300 WQ 600-20-55 | 300 | 600 | 20 | 55 | 980 | 75 |
56 | 300 WQ 800-20-75 | 300 | 800 | 20 | 75 | 980 | 78 |
57 | 300 WQ 950-20-90 | 300 | 950 | 20 | 90 | 980 | 80 |
58 | 300 WQ 1000-25-110 | 300 | 1000 | 25 | 110 | 980 | 82 |
59 | 350 WQ 1100-10-55 | 350 | 1100 | 10 | 55 | 980 | 84.5 |
60 | 350 WQ 1500-15-90 | 350 | 1500 | 15 | 90 | 980 | 82.5 |
61 | 350 WQ 1200-18-90 | 350 | 1200 | 18 | 90 | 980 | 83.1 |
62 | 350 WQ 1100-28-132 | 350 | 1100 | 28 | 132 | 740 | 83.2 |
63 | 350 WQ 1000-36-160 | 350 | 1000 | 36 | 160 | 740 | 78.5 |
64 | 400 WQ 2000-15-132 | 400 | 2000 | 15 | 132 | 740 | 85.5 |
65 | 400 WQ 1700-22-160 | 400 | 1700 | 22 | 160 | 740 | 82.1 |
66 | 400 WQ 1500-26-160 | 400 | 1500 | 26 | 160 | 740 | 83.5 |
67 | 400 WQ 1700-30-200 | 400 | 1700 | 30 | 200 | 740 | 83.5 |
68 | 400 WQ 1800-32-250 | 400 | 1800 | 32 | 250 | 740 | 82.1 |
69 | 500 WQ 2500-10-110 | 500 | 2500 | 10 | 110 | 740 | 82 |
70 | 500 WQ 2600-15-160 | 500 | 2600 | 15 | 160 | 740 | 83 |
71 | 500 WQ 2400-22-220 | 500 | 2400 | 22 | 220 | 740 | 84 |
72 | 500 WQ 2600-24-250 | 500 | 2600 | 24 | 250 | 740 | 82 |
