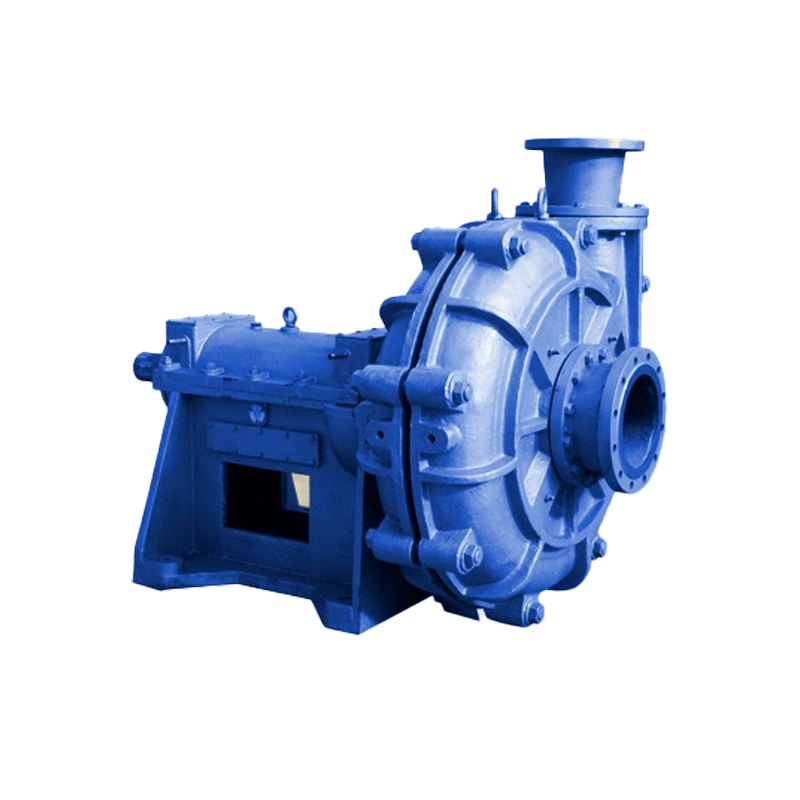

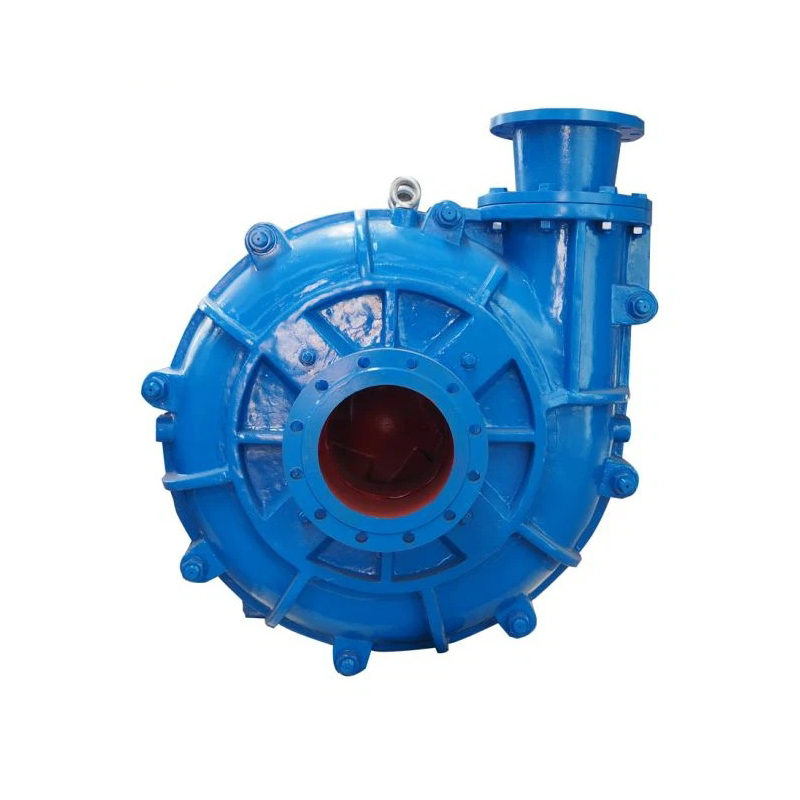

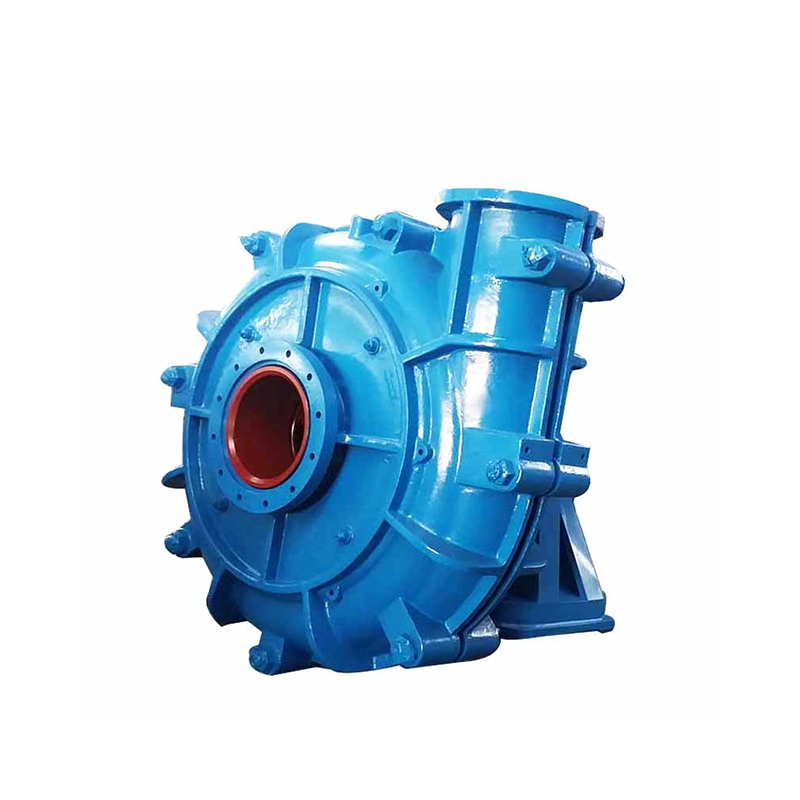

STR(L) desulfurization pump
Product Overview STR (L) series desulfurization pumps are designed for the characteristics of flue gas desulfurization systems in thermal power plants and are mainly used as circulating pumps for absorption towers in wet FGD units.
- Product Usage
PH value: 3.5~7
Working pressure: ≤1.0Mpa Clˉ
Concentration: ≤60000PPm
Medium temperature: ≤70℃
Weight concentration: ≤30
- Model meaning
For example:
STR(L) 800-600A
STR(L) —— Desulfurization pump
800 —— Outlet diameter 600mm
600 —— Impeller nominal diameter 810mm
A —— Impeller outer diameter cutting code
I- Flow-through component material code
- Product Model
| model | Flow rate Q(m³/h) | Lift H(m) | Speed n(r/min) | NPSH(m) | Discharge port diameter D(mm) | Suction port diameter D(mm) |
| 350X-TL(R) | 1600 | 25 | 960 | 4.5 | 350 | 400 |
| 400X-TL(R) | 2500 | 25 | 725 | 5.0 | 400 | 450 |
| 500X-TL(R) | 3750 | 25 | 725 | 5.0 | 500 | 500 |
| 600X-TL(R) | 6300 | 25.5 | 620 | 5.5 | 600 | 700 |
| 700X-TL(R) | 6840 | 26 | 485 | 6.0 | 700 | 800 |
| 800X-TL(R) | 9360 | 31 | 485 | 7.0 | 800 | 900 |
| 900X-TL(R) | 15000 | 30 | 485 | 8.5 | 900 | 1000 |
| 1000X-TL(R) | 10440 | 15 | 485 | 7.0 | 1000 | 1200 |
