LW vertical sewage pump

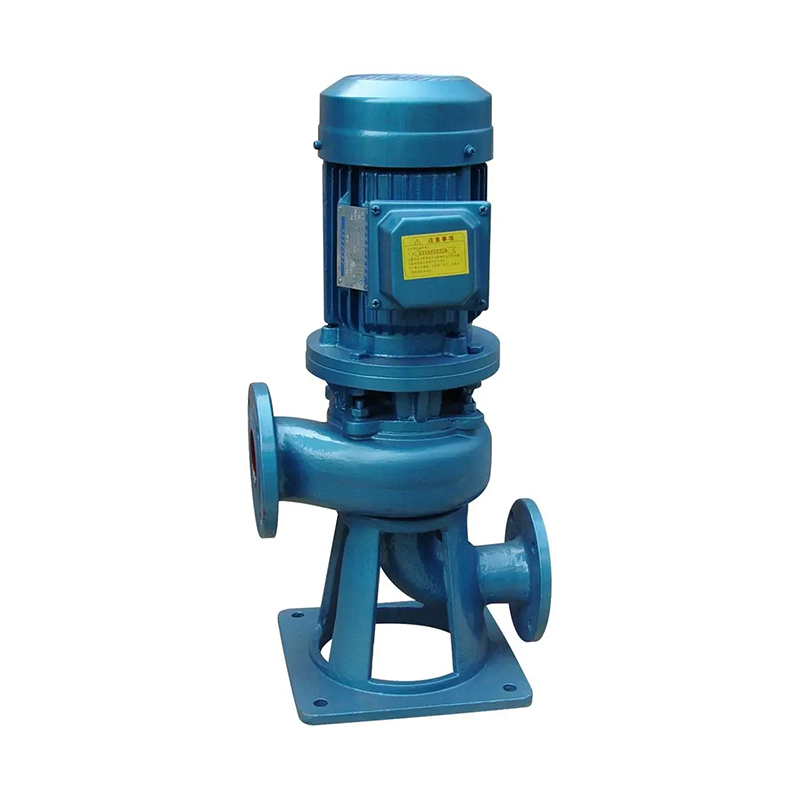

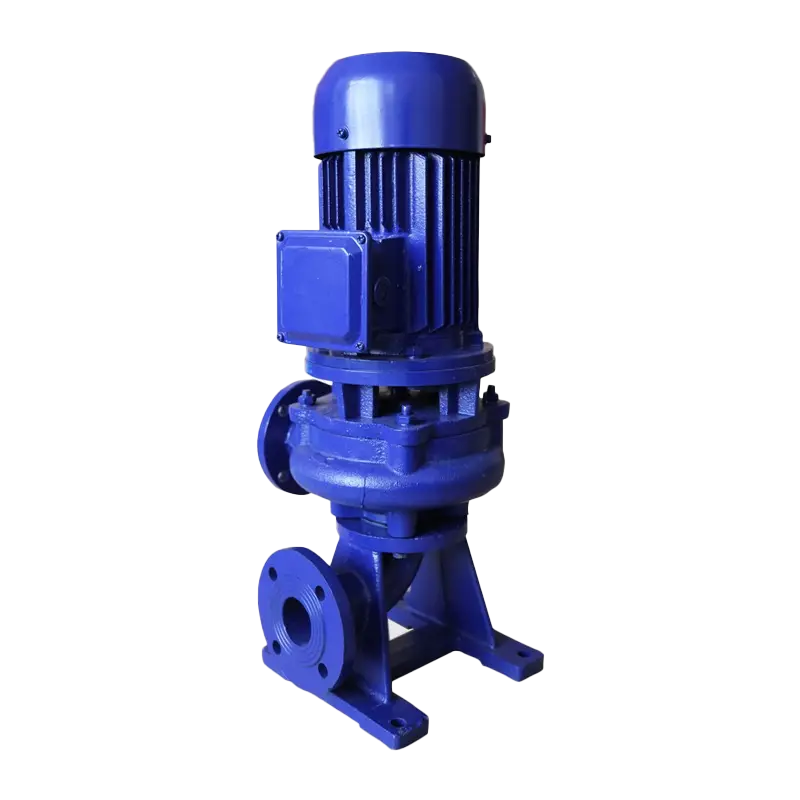

LW vertical sewage pump adopts single (double) channel impeller, with strong sewage discharge capacity, and can effectively pass fibers 5 times the diameter of the pump and solid particles 50% of the diameter of the pump. The dynamic seal adopts two sets of special material hard alloy mechanical seals, made of cast iron and stainless steel.

info@cn-pumps.cn

model	caliber	flow	Lift	power	Speed	efficiency
	(mm)	(m3/h)	(m)	(kw)	(r/min)	(%)
LW25-8-22-1.1	25	8	22	1.1	2900	38.5
LW32-12-15-1.1	32	12	15	1.1	2900	40
LW40-15-15-1.5	40	15	15	1.5	2900	45.1
LW40-15-30-2.2	40	15	30	2.2	2900	48
LW50-20-7-0.75	50	20	7	0.75	1450	54
LW50-10-10-0.75	50	10	10	0.75	1450	56
LW50-20-15-1.5	50	20	15	1.5	2900	55
LW50-15-25-2.2	50	15	25	2.2	2900	56
LW50-18-30-3	50	18	30	3	2900	58
LW50-25-32-5.5	50	25	32	5.5	2900	53
LW50-20-40-7.5	50	20	40	7.5	2900	55
LW65-25-15-2.2	65	25	15	2.2	2900	52
LW65-37-13-3	65	37	13	3	2900	55
LW65-25-30-4	65	25	30	4	2900	58
LW65-30-40-7.5	65	30	40	7.5	2900	56
LW65-35-50-11	65	35	50	11	2900	60
LW65-35-60-15	65	35	60	15	2900	63
LW80-40-7-2.2	80	40	7	2.2	1450	52
LW80-43-13-3	80	43	13	3	2900	50
LW80-40-15-4	80	40	15	4	2900	57
LW80-65-25-7.5	80	65	25	7.5	2900	56
LW100-80-10-4	100	80	10	4	1450	62
LW100-110-10-5.5	100	110	10	5.5	1450	66
LW100-100-15-7.5	100	100	15	7.5	1450	67
LW100-85-20-7.5	100	85	20	7.5	1450	68
LW100-100-25-11	100	100	25	11	1450	65
LW100-100-30-15	100	100	30	15	1450	66
LW100-100-35-18.5	100	100	35	18.5	1450	65
LW125-130-15-11	125	130	15	11	1450	62
LW120-130-20-15	125	130	20	15	1450	63
LW150-145-9-7.5	150	145	9	7.5	1450	63
LW150-180-15-15	150	180	15	15	1450	65
LW150-180-20-18.5	150	180	20	18.5	1450	75
LW150-180-25-22	150	180	25	22	1450	76
LW150-130-30-22	150	130	30	22	1450	75
LW150-180-30-30	150	180	30	30	1450	73
LW150-200-30-37	150	200	30	37	1450	70
LW200-300-7-11	200	300	7	11	980	73
LW200-250-11-15	200	250	11	15	980	74
LW200-400-10-22	200	400	10	22	1450	76
LW200-400-13-30	200	400	13	30	1450	73
LW200-250-15-18.5	200	250	15	18.5	1450	72
LW200-300-15-22	200	300	15	22	1450	73
LW200-250-22-30	200	250	22	30	1450	71
LW200-350-25-37	200	350	25	37	1450	75
LW200-400-30-55	200	400	30	55	1450	70
LW250-600-9-30	250	600	9	30	1450	74
LW250-600-12-37	250	600	12	37	980	78
LW250-600-15-45	250	600	15	45	1450	75
LW250-600-20-55	250	600	20	55	1450	73
LW250-600-25-75	250	600	25	75	1450	73
LW300-800-12-45	300	800	12	45	980	76
LW300-500-15-45	300	500	15	45	980	70
LW300-800-15-55	300	800	15	55	980	73
LW300-600-20-55	300	600	20	55	980	75
LW300-800-20-75	300	800	20	75	980	78
LW300-950-20-90	300	950	20	90	980	80
LW300-1000-25-110	300	1000	25	110	980	82
LW350-1100-10-55	350	1100	10	55	980	84.5
LW350-1500-15-90	350	1500	15	90	980	82.5
LW350-1200-18-90	350	1200	18	90	980	83.1
LW350-1100-28-132	350	1100	28	132	740	83.2
LW350-1000-36-160	350	1000	36	160	740	78.5
LW400-1500-10-75	400	1500	10	75	980	82.1
LW400-2000-15-132	400	2000	15	132	740	85.5
LW400-1700-22-160	400	1700	22	160	740	82.1
LW400-1500-26-160	400	1500	26	160	740	83.5
LW400-1700-30-200	400	1700	30	200	740	83.5
LW400-1800-32-250	400	1800	32	250	740	82.1
LW500-2500-10-110	500	2500	10	110	740	82
LW500-2600-15-160	500	2600	15	160	740	83
LW500-2400-22-220	500	2400	22	220	740	84
LW500-2600-24-250	500	2600	24	250	740	82
