PN(L) Mud Pump

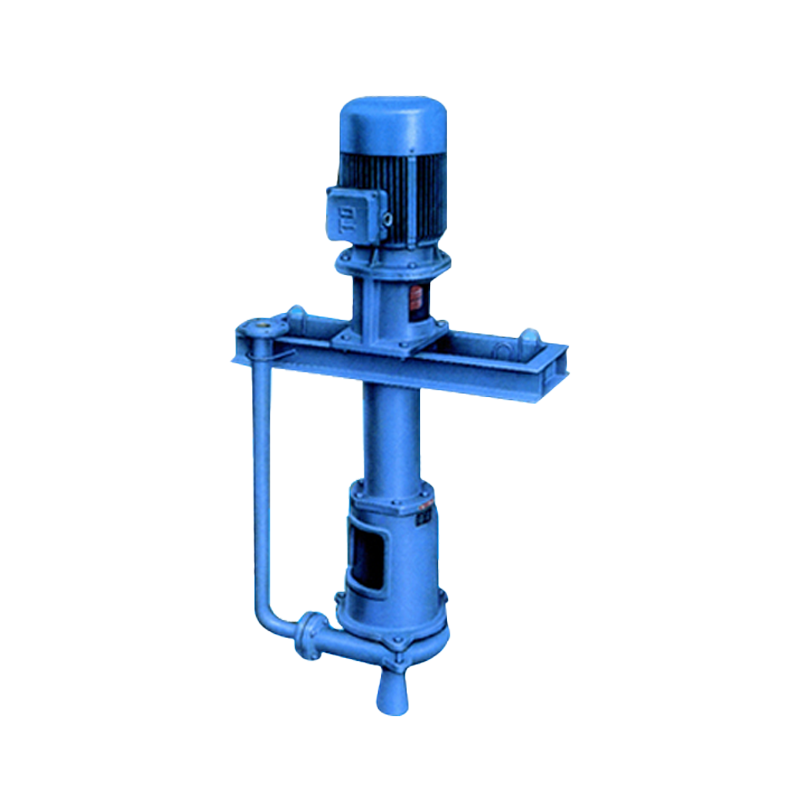

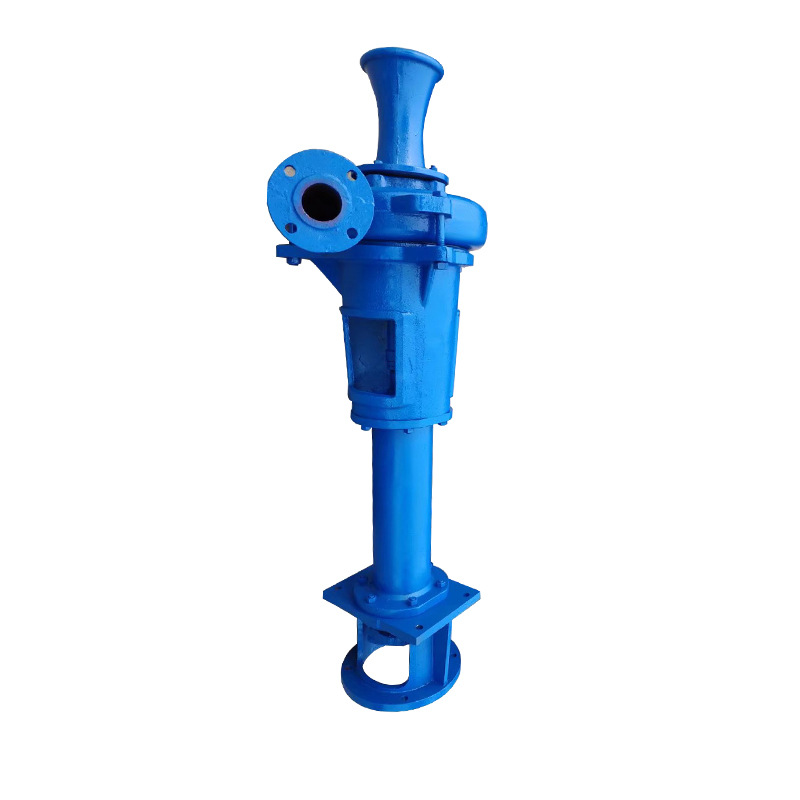

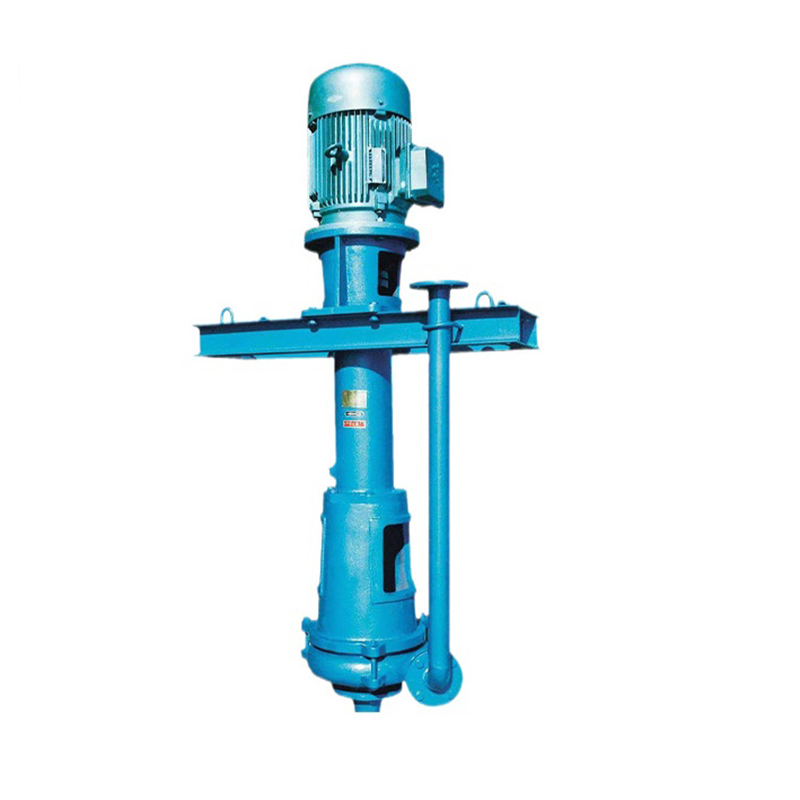

This series of pumps are single-stage, single-suction centrifugal mud pumps. PN is horizontal and PNL is vertical. The flow-through parts are made of wear-resistant alloy materials, and PNJ is made of rubber material with long service life. The shaft seal uses general packing seal, and the shaft seal should be injected with clean water 1 kg/cm2 higher than the working pressure during operation.

info@cn-pumps.cn

model	Power P (KW)	Flow rate Q(m³/h)	Lift H(m)	Speed n(r/min)	Maximum efficiency η%	NPSH NPSH(m)	weigh（kg)
1PN	Y100L2-4 3KW	7.2	14	1480	20	0.53	120
	Y100L2-4 3KW	12	13		30	0.53	120
	Y100L2-4 3KW	16	12		35	0.53	120
2PN	Y160M-4 11KW	30	22	1480	33	1.32	150
	Y160M-4 11KW	47	19		39	1.32	150
	Y160M-4 11KW	58	17		39	21.32	150
3PN	Y180L-4 22KW	54	26	1480	32	2.35	450
	Y180L-4 22KW	108	21		42	2.35	450
	Y180L-4 22KW	151	15		37	2.35	450
4PN	Y250M-4 55KW	100	41	1480	46	2.95	1000
	Y250M-4 55KW	150	39		55	2.95	1000
	Y250M-4 55KW	200	37		61	2.95	1000
4PN(1)	Y250M-4 55KW	41.5	51	1480	26	1.92	1000
	Y250M-4 55KW	80	50		37	1.92	1000
	Y250M-4 55KW	111	49		47	1.92	1000
6PN	Y280M-6 55KW	230	27	980	56	2.59	1200
	Y280M-6 55KW	280	26		60	2.59	1200
	Y280M-6 55KW	320	25		62	2.59	1200
