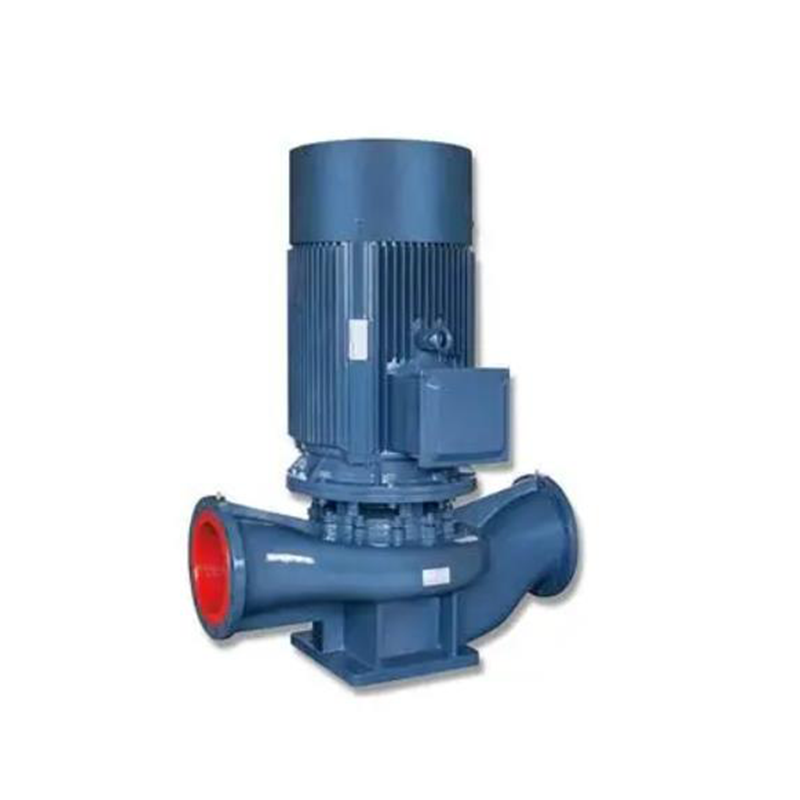

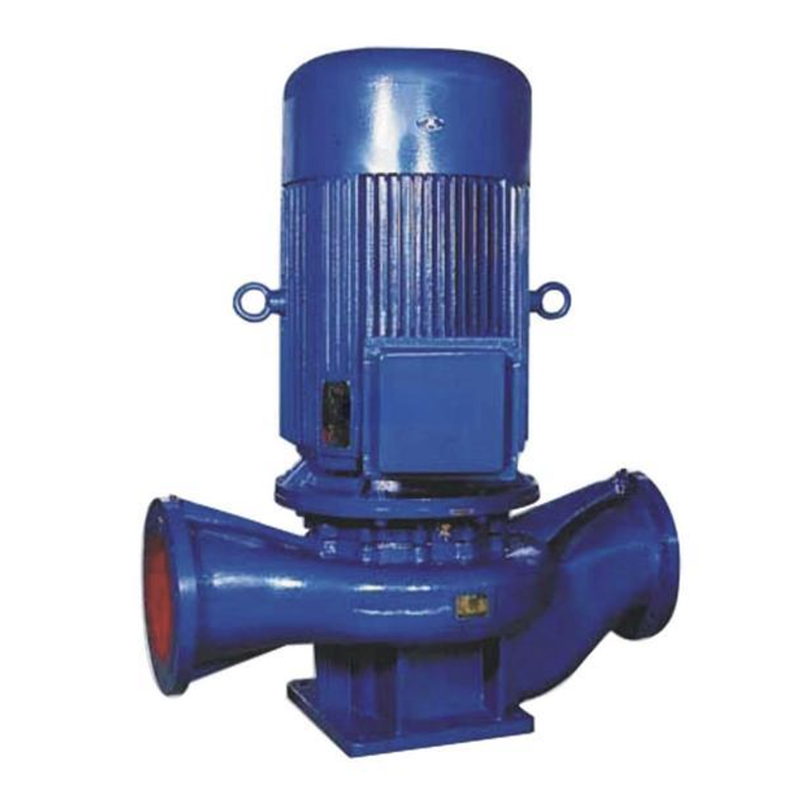

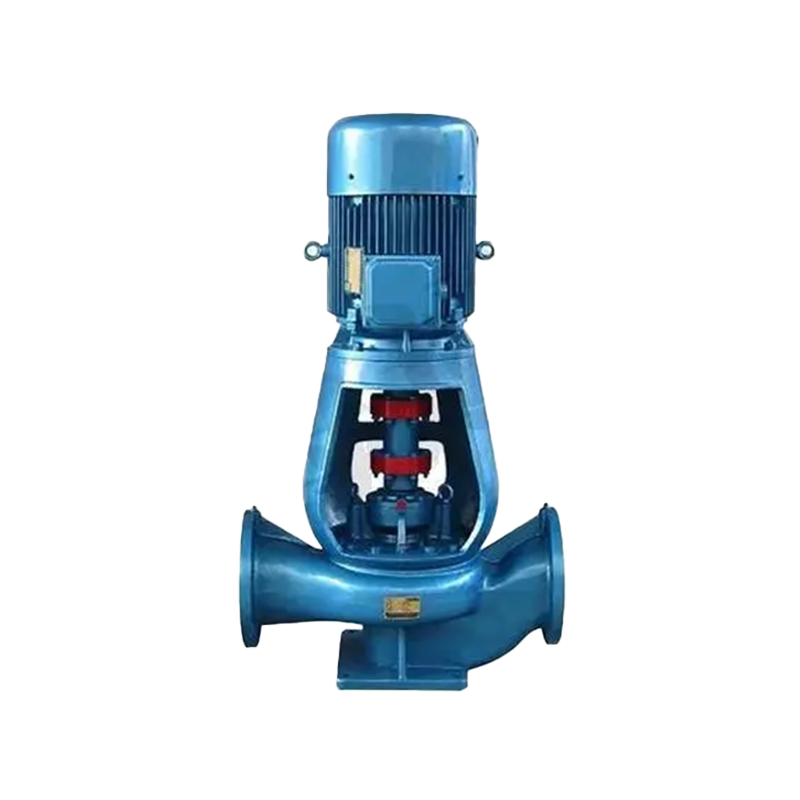

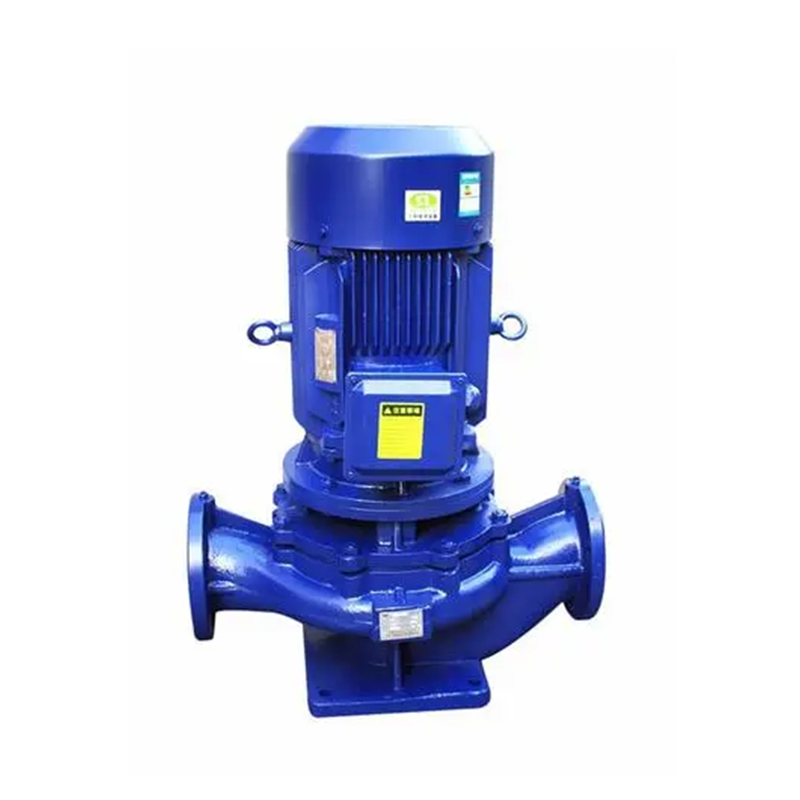

ISGB series detachable centrifugal pump

ISGB type detachable pipeline centrifugal pump is designed and manufactured strictly according to the standard ISO2858 and pipeline centrifugal pump standard GB/T53058-93.

info@cn-pumps.cn

model	caliber	flow		Lift	efficiency	Speed	Motor power	Required NPSH	weight
	mm	m3/h	L/S	m	%	r/min	KW	（NPSH）r	Kg
15-80	15	1.1	0.3	8.5	26	2800	0.18	2.3	17
		1.5	0.42	8	34
		2	0.55	7	34
20-110	20	1.8	0.5	16	25	2800	0.37	2.3	25
		2.5	0.69	15	34
		3.3	0.91	13.5	35
20-160	20	1.8	0.5	33	19	2900	0.75	2.3	29
		2.5	0.69	32	25
		3.3	0.91	30	23
25-110	25	2.8	0.78	16	34	2900	0.55	2.3	26
		4	1.11	15	42
		5.2	1.44	13.5	41
25-125	25	2.8	0.78	20.6	28	2900	0.75	2.3	28
		4	1.11	20	36
		5.2	1.44	18	35
25-125A	25	2.5	0.69	17	35	2900	0.55	2.3	27
		3.6	1	16
		4.6	1.28	14.4
25-160	25	2.8	0.78	33	24	2900	1.5	2.3	39
		4	1.11	32	32
		5.2	1.44	30	33
25-160A	25	2.6	0.12	29	31	2900	1.1	2.3	34
		3.7	1.03	28
		4.9	1.36	26
model	caliber	flow		Lift	efficiency	Speed	Motor power	Required NPSH	weight
	mm	m3/h	L/S	m	%	r/min	KW	（NPSH）r	Kg
32-100(I)	32	4.4	1.22	13.2	48	2900	0.75	2	32
		6.3	1.75	12.5	54
		8.3	2.32	11.3	53
32-125	32	3.5	0.97	22	40	2900	0.75	2.3	28
		5	0.39	20	44
		6.5	1.8	18	42
32-125A	32	3.1	0.86	17.6	43	2900	0.55	2.3	28
		4.5	1.25	16
		5.8	1.61	14.4
32-160(I)	32	4.4	1.22	33.2	34	2900	2.2	2	47
		6.3	1.75	32	40
		8.3	2.32	30.2	42
32-200(I)	32	4.4	1.22	50.5	26	2900	4	2	43
		6.3	1.75	50	33
		8.3	2.32	48	35
32-200A	32	2.8	0.78	44.6	34	2900	2.2	2	74
		4	1.11	44	40
		5.2	1.44	42.7	42
