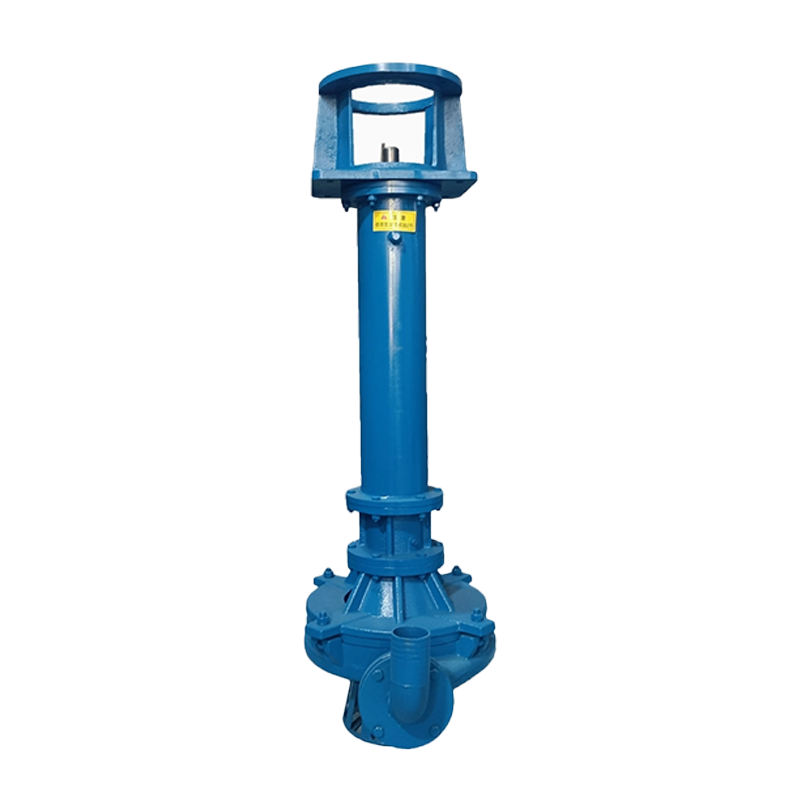

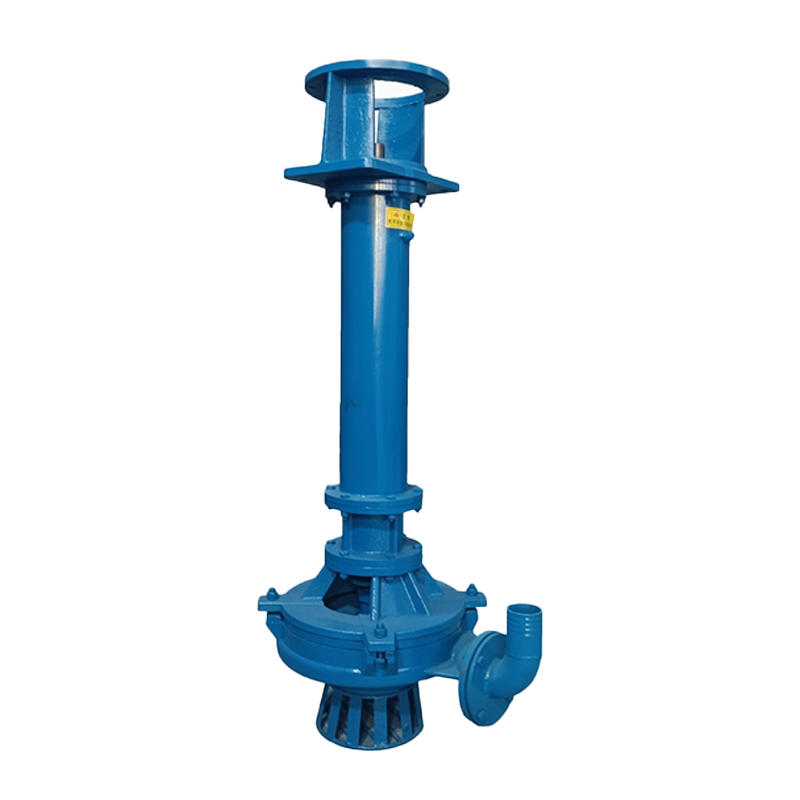

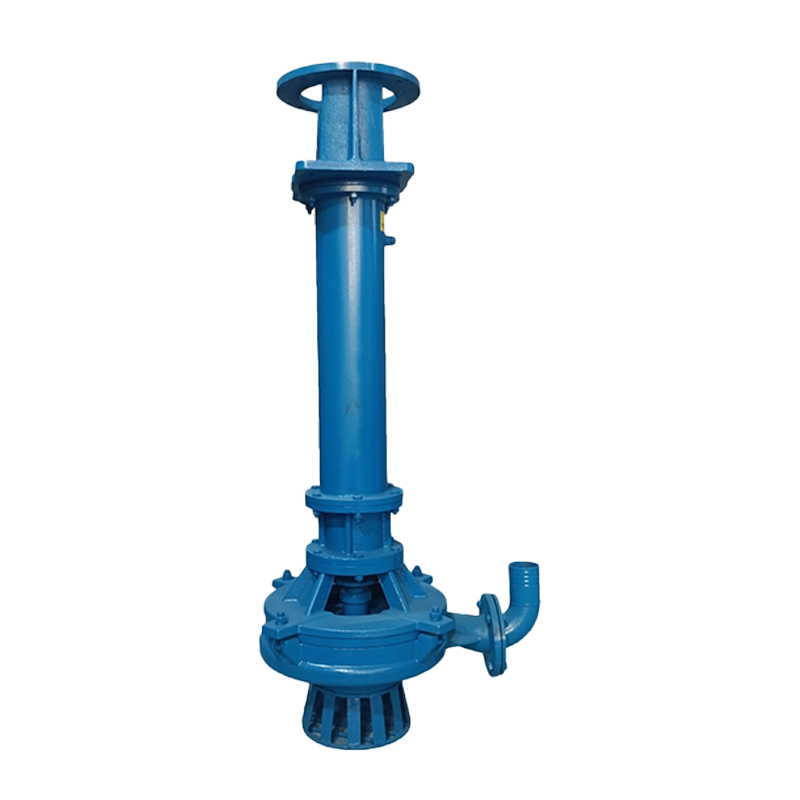

YZ new centrifugal mud pump

info@cn-pumps.cn

model	flow		Lift(m)	Speed (r/min)	efficiency(%)	Equipped motor
model	m3/h	L/S	Lift(m)	Speed (r/min)	efficiency(%)	model	Power(KW)
50YZ25-12	12	3.3	13.5	1430	37.3	Y100L2-4	3
	25	6.9	12		39.5
	30	8.3	11		38.2
	7	1.9	5.5	910	37.3	Y90L-6	1.1
	15	4.2	4.8		39.5
	19	5.3	4.4		38.2
50YZ25-12A	11	3	9.3	1430	36.8	Y100L:-4	2.2
	23	6.3	8.1		39
	27	7.5	7.3		37.7
	7	1.9	3.7	910	36.8	Y90S-6	0.75
	14	3.9	3.3		39
	17	4.7	2.7		37.7
50YZ25-12B	10	2.7	7.5	1430	26.3	Y100L:-4	2.2
	21	5.8	7.2		28.5
	25	6.9	5.9		37.2
	6	1.7	3	910	26.3	Y90S-6	0.75
	13	3.6	2.9		28.5
	15	4.2	2.4		37.2
50YZ30-20	18	5	21.5	1440	32.4	Y132S-4	5.5
	30	8.33	20		43.4
	36	10	19		45.4
	11.8	3.28	9.2	940	32.4	Y100L-6	1.5
	19.6	5.44	8.5		43.4
	23.5	6.53	8.1		45.4
50YZ30-20A	16.5	4.58	18.4	1440	31	Y132S-4	5.5
	28	7.78	17		43
	33	9.17	16		45
	10.8	3	7.8	940	31	Y100L-6	1.5
	18.3	5.08	7.2		43
	21.5	5.97	6.8		45
50YZ30-20B	15	4.17	15.5	1440	30.5	Y112M-4	4
	25	6.94	14.4		42.6
	31	8.61	13.7		44.5
	9.8	2.72	6.6	940	30.5	Y90L-6	1.1
	16.3	4.53	6.1		42.6
	20.2	5.61	5.8		44.5
50YZ30-30	18	5	31.5	1460	27.4	Y160M-4	11
	30	8.33	30		36.4
	36	10	28		37
	11.8	3.28	13.6	910	27.4	Y132L-6	3
	19.6	5.44	12.97		_.. 36.4
	23.5	6.53	12.1		37
50YZ30-30A	16	4.44	25.7	1460	26.5	Y132M-4	7.5
	27	7.5	24.5		35.6
	33	9.17	22.8		36
	10	2.78	10	910	26.5	Y112M-6	2.2
	16.8	4.67	9.5		35.6
	20.5	5.69	9		36
50YZ36-50	18	5	53	1470	28	Y180L-4	22
	36	10	50		34
	45	12.5	48		36
	11	3.1	23	960	28	Y160M-6	7.5
	23	6.4	21		3436
	29	8.1	20		3436
50YZ36-50A	16	4.4	44	1470	27	Y180M-4	18.5
	33	9.2	42		33
	41	11.4	40		35
	10	2.8	18	960	27	Y132M2-6	5.5
	21	5.8	17.5		33
	26	7.2	17		35
50YZ36-50B	15	4.2	37		26	Y160L-4	15
	30	8.3	35	1460	33
	37	10.3	33.6	1460	34
	9	2.5	15.5	960	26	Y132M2-6	5.5
	19	5.3	15		33
	24	6.7	14		34
65YZ50-12	30	8.3	13.2	1440	47.7	Y132S-4	5.5
	50	13.8	12		55.9
	60	16.6	10.8		55.7
	19	5.3	5.5	940	47.7	Y112M-6	2.2
	32	8.9	5		55.9
	39	10.3	4.5		55.7
65YZ50-12A	28	7.7	11.9	1440	47.2	Y132S-4	5.5
	48	13.3	10.8	1440	55.4
	57	15.8	9.7		55.2
	18	5	5	940	47.2	Y100L-6	1.5
	31	8.6	4.5		55.4
	37	10.3	4		55.2
65YZ50-12B	26	7	10.7	1440	46.8	Y112M-4	4
	45	12.5	9.7		54.9
	54	15	8.7		54.7
	16	4.4	4.5	940	46.8	Y100L-6	1.5
	29	8.1	4		54.9
	35	9.7	3.5		54.7
80YZ45-32	30	8.3	36	1460	30	Y160L-4	15
	45	12.5	32		35.3
	55	15.3	30		37.5
	20	5.6	15.5	960	30	Y132M2-6	5.5
	30	8.3	13.8		35.3
	36	10	12.8		37.5
80YZ80-20	48	13.3	22	1460	45	Y160M-4	11
	80	22.2	21		55
	96	26.7	18.5		53
	31	8.6	9.5	960	45	Y132M,-6	4
	52	14.4	9		55
	63	17.5	8		53
80YZ80-20A	44	12.2	18.6	1460	43	Y160M-4	11
	73	20.3	17.5		53
	90	25	15.6		51
	28	7.8	8	960	43	Y132M,-6	4
	48	13.3	7.5		53
	59	16.4	6.5		51
80YZ80-20B	39	10.8	16	1460	43	Y132M-4	7.5
	68	18.9	15		53
	80	22.2	13.4		51
	25	6.9	6.9	960	43	Y132S-6	3
	44	12.2	6.5		53
	52	14.4	5.8		51
100YZ100-30	60	16.7	36	1470	41	Y180L-4	22
	100	27.8	31		54
	120	33.3	28		56
	39	10.8	15.5	970	41	Y160M-6	7.5
	65	18.1	13.5		54
	79	21.9	10		56
100YZ100-30A	75	20.8	30	1470	39	Y180M-4	18.5
	92	25.6	26		52.5
	110	30.6	24		54
	48	13.3	12.8	960	39	Y132M-6	5.5
	60	16.7	11		52.5
	71	19.7	12		54
100YZ100-30B	50	13.9	25	1460	38	Y160L-4	15
	85	23.6	22		52
	102	28.3	20		53
	32	8.9	10.8	960	38	Y132M_-6	5.5
	55	15.3	9		52
	67	18.6	8		53
100YZ100-40	50	13.9	44	1470	40.2	Y20L-4	30
	100	27.8	40		57.5
	120	33.3	38		58.8
	32	8.9	19	970	40.2	Y160L-6	11
	65	18.1	17		57.558.8
	79	21.9	16		57.558.8
100YZ120-60	72	20	61	1480	38	Y250M-4	55
	120	33	60		50.552
	144	40	56		50.552
	47	13.1	26	970	38	Y200L,-6	18.5
	78	21.7	25		50.552
	94	26.1	24		50.552
100YZ120-60A	65	18	50	1480	36.5	Y225M-4	45
	108	30	49		49
	130	36.1	16		50
	42	11.7	21.5	970	36.5	Y180L-6	15
	70	19.4	21		49
	85	23.6	6.8		50
100YZ120-60B	59	16.4	41	1480	35.5	Y200L-4	30
	98	27.2	40		48
	118	32.8	37		49
	38	10.5	17.5	970	35.5	Y160L-6	11
	64	17.8	17		48
	77	21.4	15.5		49
100YZ160-38	96	26.7	45	1480	43.8	Y225M-4	45
	160	44.4	39		52
	192	53.3	36		50.6
	62	17.2	19	970	43.8	Y180L-6	15
	104	28.9	16.5		52
	125	34.7	15		50.6
100YZ160-38A	88	24.4	38	1480	42.8	Y225S-4	37
	148	41.1	33		51
	177	49.2	30		49.5
	57	15.8	16	970	42.8	Y160L-6	11
	97	26.9	14		51
	116	32.2	12.5		49.5
100YZ160-38B	82	22.8	33	1480	43	Y200L-4	30
	137	38.1	28		52
	164	45.6	26		50
	53	14.7	14	970	43	Y160L-6	11
	89	24.7	12		52
	107	29.7	11		50
150YZ250-40	150	41.7	44	1480	44	Y250M-4	55
	250	69.4	40		51
	300	83.3	38		52
	98	27.2	18	970	44	Y200L,-6	18.5
	163	45.3	17		51
	196	54.4	16		52
150YZ250-40A	135	37.5	35	1480	43	Y225M-4	45
	225	62.5	32		50
	270	75	30		51
	88	24.4	15	970	43	Y180L-6	15
	147	40.8	13.5		50
	176	48.9	12.5		51
150YZ250-40B	120	33.3	28	1480	43	Y225S-4	37
	200	55.6	25		49
	240	66.7	24		50
	78	21.7	12	970	43	Y160L-6	11
	131	36.4	10.5		49
	157	43.6	10		50
150YZ280-20	168	46.7	21	980	47	Y250M-6	37
	280	77.8	20		62
	336	93.3	16.5		57
	125	34.7	11.2	730	47	Y225S-8	18.5
	208	57.8	11		62
	250	69.4	9		57
150YZ280-20A	154	42.8	18	980	46	Y225M-6	30
	258	71.7	17		61
	310	86.1	14		56
	114	31.7	9.5	730	45	Y200L-8	15
	192	53.3	9		61
	230	63.9	7		56
150YZ280-20B	142	39.4	15	980	45	Y200L2-6	22
	237	65.8	14		60
	285	79.2	11		55
	105	29.2	8	730	45	Y180L-8	11
	176	48.9	7		60
	212	58.8	6		55
150YZ360-60	240	66.7	64	1480	53.3	Y315M-4	132
	360	100	60		63.8
	420	116.7	58		66
	160	44.4	28	980	53.5	Y280M-6	45
	240	66.7	26		63.8
	280	77.8	25		66
200YZ460-35	276	76.7	38	1480	59	Y280M-4	90
	460	127.8	35		69
	552	153.3	33		64
	182	50.6	16.5	980	59	Y225M-6	30
	304	84.4	15		69
	365	101.4	14		64
200YZ460-35A	255	70.8	32.5	1480	58	Y280S-4	75
	426	118.3	30		67
	511	141.9	28.3		63
	167	46.4	14	970	58	Y200L-6	22
	279	77.5	12.5		67
	334	92.8	11.5		63
200YZ460-35B	235	65.3	27.5	1480	57	Y250M-4	55
	391	108.6	25		66
	470	130.6	23.8		62
	154	42.8	11.5	970	57	Y200L,-6	18.5
	256	71.1	10.5		66
	308	85.6	10		62
200YZ500-20	300	83.3	23	980	62	Y280M-6	55
	500	138.9	20		71
	600	166.7	18		67
	223	61.9	12	730	62	Y250M-8	30
	372	103.3	11		71
	446	123.9	9		67
200YZ500-20A	278	77.2	19.7	980	61	Y280S-6	45
	463	128.6	17		69
	555	154.2	15.4		65
	207	57.5	10	730	61	Y225M-8	22
	344	95.6	9		69
	413	114.7	8		65
250YZ600-25	360	100	28	1480	63	Y280M-4	90
	600	166.7	25		72
	720	200	20		67
	238	66.1	12	980	63	Y225M-6	30
	397	110.3	11		72
	477	132.5	8.8		67
