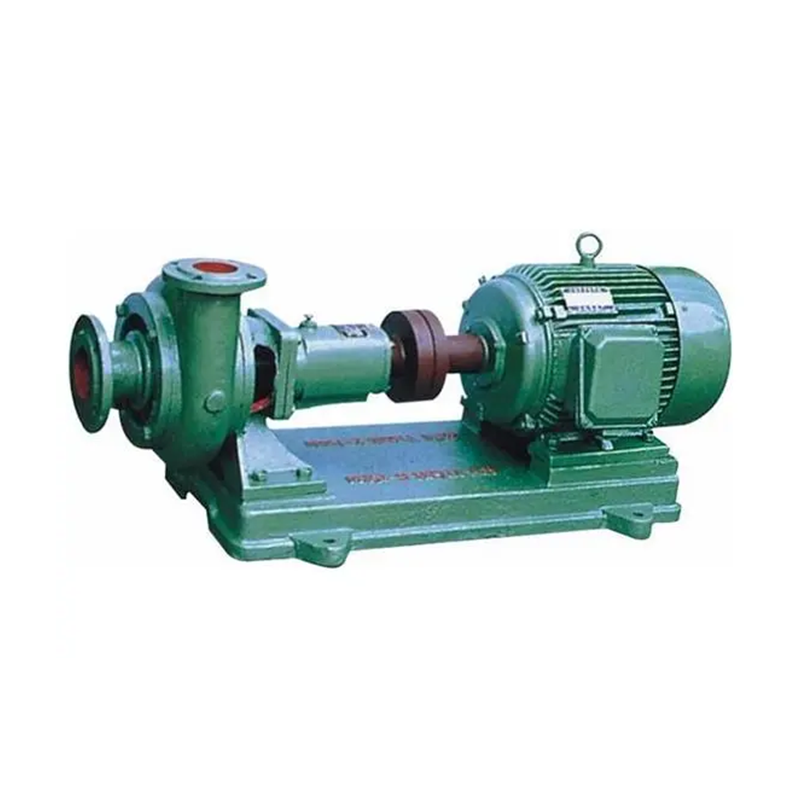

PW (F), PWL sewage pump

The ordinary type of PW sewage pump can transport sewage, suspended solid particles, long fiber materials and domestic wastewater. The pump body is made of high-quality cast iron, and the medium temperature does not exceed 100°C. When the PW sewage pump treats industrial sewage, due to fiber entanglement in the sewage, etc., a filter must be installed at the water inlet end of the pump to prevent impurities from entering the pump cavity, so that the pump can work better and have a longer life.

info@cn-pumps.cn

model	flow		Lift	Speed	Shaft power	Motor		NPSH
model	m 3 /h	m 3 /s	m	r/min	KW	Power KW	model	m
2.5PW	43	11.94	48.5	2900	11.6	22	Y180M-2	3
	90	25	43		17			4.5
	108	30	39		19.1			5.5
2.5PW	43	11.94	34	2900	7.81	15	Y160M 2 -2	4
	90	25	26		11			5
	108	30	24		12.6			6
2.5PW	36	10	11.6	1450	2.11	4	y112m-2	2.5
	60	16.67	9.5		2.51			2.8
	72	20	8.5		2.71			3
4PW	72	20	12	970	3.99	7.5	y160m-6	3
	100	27.78	11		4.68			3.5
	120	33.33	10.5		5.54			4.5
4PW	108	30	27.5	1450	13.5	30	y200l-4	2.2
	160	44.44	25.5		17.9			2.5
	180	50	24.5		19.5			3
6PW	250	69.44	30	1450	34.1	55	y250m-4	5
	350	97.22	27		42.2			5.5
	450	125	23		47			6
6PW	200	55.6	16	970	13.5	30	y225m-6	3
	300	83.3	14		17			3.2
	400	111.1	12		20			3.5
