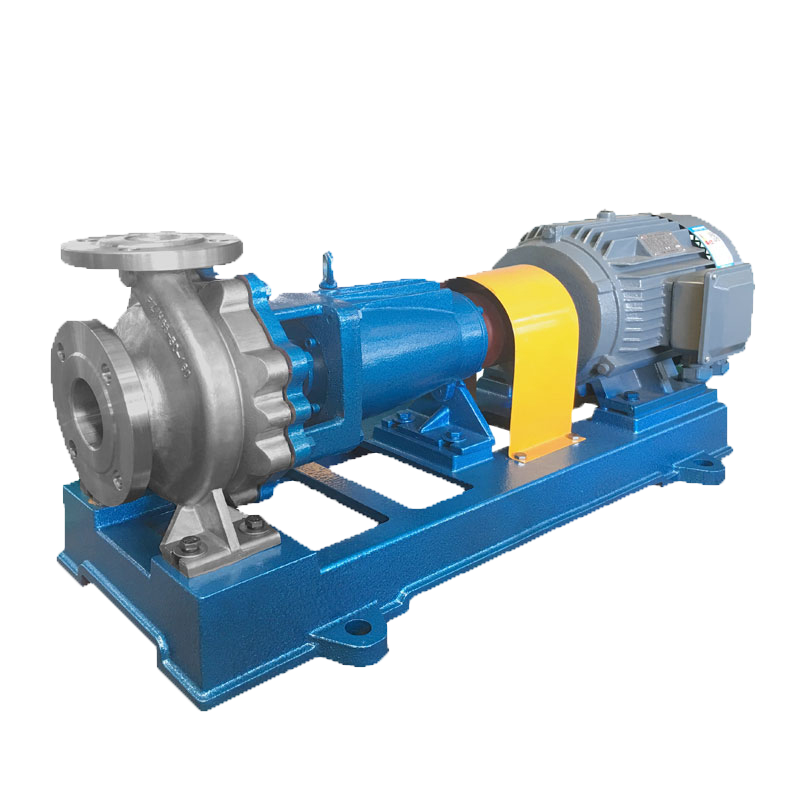

CZ type corrosion resistant alloy centrifugal pump

CZ corrosion-resistant alloy centrifugal pump has strong corrosion resistance, high mechanical strength, no aging, no toxin decomposition, and can transport acids, alkalis, oxidants and other corrosive media of any concentration. Therefore, it is widely used in chemical, petroleum, pharmaceutical, pesticide, smelting, dye, papermaking, electroplating, food and other industries.

info@cn-pumps.cn

model	Pump rated speed n=2900r/min					Pump rated speed n=1450r/min
	flow	Lift	NPSH	efficiency	When the medium specific gravity is 1.35	flow	Lift	NPSH	efficiency	When the medium specific gravity is 1.35
	flow	Lift	NPSH	efficiency		flow	Lift	NPSH	efficiency
	m3/h	m	m	%	Equipped motor power and model	m3/h	m	m	%	Equipped motor power and model
CZ32-160	7.5	34.5	2	62	Y112M-2 4KW	3.75	8.6	2	49	Y90S-4 1.1KW
	12.5	32	2			6.3	8	2
	15	30	2.5			7.5	7.5	2.5
CZ32-200	7.5	51.8	2	51	Y132S2-2 7.5KW	3.75	12.9	2	47	Y90L-4 1.5W
	12.5	50	2			6.3	12.5	2
	15	48	2.5			7.5	12	2.5
CZ32-250	7.5	82	2	40	Y160M2-2 15KW	3.75	20.5	2	37	Y100L1-4 2.2KW
	12.5	80	2			6.3	20	2
	15	78.5	2.5			7.5	16.2	2.5
CZ40-160	15	34.2	2	63	Y132S2-2 7.5KW	7.5	8.55	2	60	Y90L-4 1.5W
	25	32	2			12.5	8	2
	30	30	2.5			15	7.5	2.5
CZ40-200	15	53.2	2	60	Y160M1-2 11KW	7.5	13.3	2	57	Y100L1-4 2.2KW
	25	50	2			12.5	12.5	2
	30	47.6	2.5			15	11.9	2.5
CZ40-250	15	81.2	2	50	Y180M-2 22KW	7.5	20.3	2	48	Y100L2-4 3KW
	25	80	2			12.5	20	2
	30	78.4	2.5			15	19.6	2.5
CZ40-315	15	126.8	2	50	Y200L2-2 37KW	7.5	32.4	2	45	Y132S-4 5.5KW
	25	125	2			12.5	32	2
	30	124	2.5			15	31.7	2.5
CZ50-160	30	36	2	73	Y160M1-2 11KW	15	9	2	70	Y90L-4 1.5KW
	50	32	2.3			25	8	2.3
	60	28.4	3.3			30	7.2	3.3
CZ50-200	30	55.2	2	72	Y160L-2 18.5KW	15	13.5	2	70	Y100L1-4 2.2KW
	50	50	2.5			25	12.5	2
	60	45.2	3.2			30	11.5	2.5
CZ50-250	30	84	2.5	64	Y200L2-2 37KW	15	21	2	59	Y112M-4 4KW
	50	80	2.5			25	20	2
	60	75	2.5			30	18.8	2.5
CZ50-315	30	128	2.5	60	Y280S-2 75KW	15	32.5	2	58	Y132M-4 7.5KW
	50	125	2.5			25	32	2.5
	60	123	3			30	31.5	3
CZ65-160	60	37	3.8	74	Y180M-2 22KW	30	9.25	3	68	Y100L1-4 2.2KW
	100	32	4.3			50	8	3.4
	120	28	5			60	7	3.7
CZ65-200	60	56	3.4	73	Y200L2-2 37KW	30	14	2.5	73	Y112M-4 4KW
	100	50	3.9			50	12.5	2.5
	120	44	5.2			60	11	3
CZ65-250	60	88	30	71	Y250M-2 5.5KW	30	22	2.5	67	Y132S-4 5.5KW
	100	80	3.6			50	20	2.5
	120	74	4.5			60	18.5	3
CZ65-315	60	132	2.8	66	Y280S-2 75KW	30	33.5	2	62	Y160M-4 11KW
	100	125	3.2			50	32	2
	120	119	4.2			60	30.5	2.5
CZ80-160	130	16	4.7	76	Y180M-2 22KW	65	4	2.5	70	Y112M-4 4KW
	150	22	5.3			70	5	2.8
	160	26	5.8			75	8	3.5
CZ80-200	110	26	4.5	79	Y225M-2 45KW	65	9	2.5	73	Y160M-4 11KW
	130	26	5			75	11	2.9
	150	38	5.8			80	12	3.6
CZ80-250	130	47	3.7	80	Y280M-2 90KW	70	11	2	78	Y160L-4 15KW
	150	55	4.5			85	17	2.3
	180	75	5.5			90	19	3
CZ80-315	150	75	4	76.5	Y315M1-2 132KW	70	18	2.5	72	Y180M-4 18.5KW
	160	100	4.5			85	25	2.5
	200	130	5			100	32	3
CZ80-400						75	30	2.5	63	Y225S-4 37KW
						90	40	2.5
						100	50	3
CZ100-200	150	61	4.5	81	Y250M-2 55KW	60	15.3	2.5	80	Y132M-4 7.5KW
	200	50	5			100	12.5	2.9
	240	41	5.8			120	10.3	3.6
CZ100-250	120	90	3.7	81.5	Y280M-2 90KW	60	22.5	2	75	Y160M-4 11KW
	200	80	4.5			100	20	2.3
	240	73	5.5			120	18.3	3
CZ100-315	120	132.5	4	75.5	Y315M1-2 132KW	60	33.5	2.5	72	Y180M-4 18.5KW
	200	125	4.5			100	32	2.5
	240	120	5			120	30.5	3
