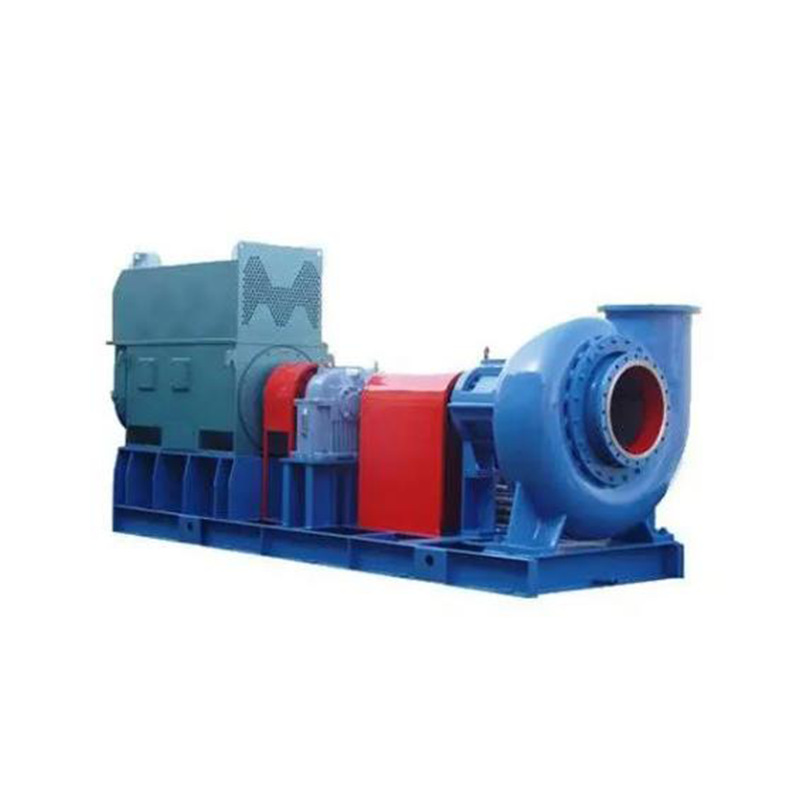

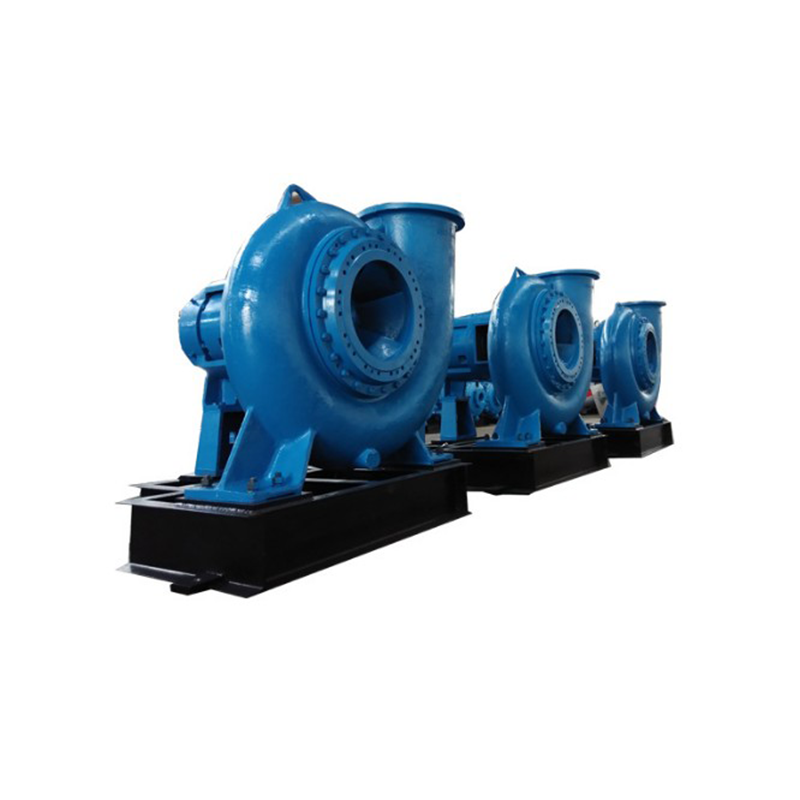

DT desulfurization pump

DT desulfurization pump is a single-stage single-suction horizontal centrifugal pump, mainly used as a circulating pump for absorption towers, with the advantages of wide flow range, high efficiency and energy saving, simple structure, and convenient maintenance. It is an ideal product for desulfurization and slag removal in power plants.

info@cn-pumps.cn

Related Products

Product Catalog

Material: wear-resistant and anti-corrosion A49 material.
Model meaning: such as 200DT-45B
200: outlet diameter is 200mm
DT: desulfurization pump
45: impeller diameter is 45cm
B: number of impeller blades, A is 5, B is 4, C is 3
Desulfurization pump features: DT series desulfurization pump is a single-stage single-suction horizontal centrifugal pump, mainly used as the absorption tower circulation pump in the wet FGD device, with a wide flow range, high efficiency and energy saving, simple structure, easy maintenance and other advantages. This series of pumps is equipped with a compact X-shaped bracket, which can greatly save floor space. At the same time, our factory has developed a variety of new materials for the characteristics of pumps used in desulfurization systems. It can meet the use of various working conditions in power plants.
Desulfurization pump structure: In the rubber pump structure: the impeller, suction cover, and front guard are made of special wear-resistant materials, and the front jacket, rear jacket, and rear guard are made of natural rubber, which has good natural wear resistance, light weight, and relatively low cost. In the metal structure: the impeller, the jacket, the front guard plate, and the rear guard plate are made of special wear-resistant and corrosion-resistant materials, and the suction cover is made of ductile iron with glue.
Sealing form: The mechanical seal adopts a containerized mechanical seal specially used for the desulfurization process, which is reliable in operation.
Transmission mode: V-belt drive, elastic coupling drive, gear reducer drive, hydraulic coupling drive, frequency conversion drive device, thyristor speed control, etc. The pump is operated under the best working conditions by adopting multiple speeds and multiple variants. It has a long service life and high operating efficiency, and can meet many types of harsh transportation conditions.

Application scope of desulfurization pump

The desulfurization pump is a mechanical pump with corrosion resistance, which is mainly used for the transportation of corrosive liquids. The desulfurization pump is a widely used type of general equipment pump. It has the advantages of good sealing performance, long service life and wide application range. The corrosion resistance, wear resistance and non-deformation resistance of the desulfurization pump can make it used for the transportation of corrosive clear liquids in the sulfuric acid and phosphate fertilizer industry, non-ferrous metal smelting industry, chemical industry and chlor-alkali industry. The application range of the desulfurization pump is very wide. Specifically, the desulfurization pump is mainly used in the following aspects:
1. Sulfuric acid and phosphate fertilizer industry: mainly used for the transportation of dilute acid, mother liquor, sewage, seawater, silica gel, phosphoric acid slurry and other liquids.
2. Non-ferrous metal smelting industry: mainly suitable for the transportation of various acid liquids, corrosive ore slurries, slurry electrolytes, sewage and other liquids for wet smelting of lead, zinc, gold, silver, copper, manganese, cobalt, rare earth, etc.
3. Chemical and other enterprises: Mainly used for the transportation of clear liquid or slurry of sulfuric acid, hydrochloric acid, alkali, and oil, as well as the transportation of various dyes and pigments in the production process of titanium and iron.4. Chlor-alkali industry: mainly used for the transportation of liquids such as hydrochloric acid, liquid alkali, and electrolyte.
5. Water treatment industry: mainly used for the transportation of pure water, high-purity water, and various sewage.
6. Iron and steel enterprises: mainly used for the transportation of sulfuric acid, hydrochloric acid, and sewage with impurities in the pickling system.
7. Coal industry and coal chemical industry: mainly used for the transportation of corrosive liquids and coal slurry, as well as the matching pumps for sewage from coal washing.
Desulfurization pumps, with flow parts made of high-strength wear-resistant materials, are suitable for conveying highly abrasive, high-concentration, and large-particle slurries. Within the larger working pressure range of the pump, they can be used in multiple stages in series.
Desulfurization pumps have interchangeable flow parts of various materials according to the different pumped media, which are suitable for conveying abrasive or corrosive, large-particle or fine-particle slurries.

Performance parameter table:

Type	Speed n	Capacity Q	Head H	Power of shaft Pa	efficiency η	Required NPSH （NPSH）r	Motor
	Speed n	Capacity Q	Head H	Power of shaft Pa	efficiency η	Required NPSH （NPSH）r	Power/Voltage
	r/min	m³/h	m	KW	%	m	KW/V
800DT-A90	590	6200	28.7	553.2	87.6	2.7	710/6000
		8800	26.1	700.4	89.3	3.5	900/6000
		9700	23.5	715.2	86.8	3.9	900/6000
	490	5170	20.0	321.5	87.6	2.0	400/6000
		7338	18.1	405.0	89.3	2.5	500/6000
		8089	16.3	413.7	86.8	2.9	560/6000
700DT-A84	590	4250	24.5	326.3	86.9	2.8	500/6000
		6300	22.3	430.9	88.8	3.5	560/6000
		7360	20.1	467.4	86.2	4.0	630/6000
	490	3545	17.0	188.9	86.9	2.0	250/6000
		5255	15.5	250.0	88.8	2.6	315/6000
		6140	14.0	271.6	86.2	3.0	355/6000
600DT-A82	590	3300	27.8	343.2	72.8	3.0	500/6000
		4700	24.7	358.0	88.3	3.7	500/6000
		5300	21.7	362.9	86.3	4.0	500/6000
		5600	20.4	368.2	84.5	4.0	500/6000
	490	2718	18.9	192.2	72.8	2.2	280/6000
		3871	16.8	200.6	88.3	2.8	280/6000
		4368	14.7	202.5	86.3	3.0	280/6000
		4612	13.8	205.1	84.5	3.0	280/6000
500DT-A85	590	2040	26.8	204.5	72.8	4.1	250/6000
		3400	24.4	266.7	84.7		355/6000
		4080	22.4	305.2	80.1		400/6000
	490	1702	18.6	118.4	72.8	3.1	220/6000
		2836	17.0	155.0	84.7		220/6000
		3403	15.3	177.0	80.1		220/6000
350DT-A78	740	1332	51.1	289.6	64.0	6.5	355/6000
		2430	44.5	377.7	78.0		500/6000
		2865	39.6	408.7	75.6		500/6000
	590	1062	32.5	146.9	64.0	3.5	185/6000
		1938	28.3	191.5	78.0		250/6000
		2284	25.2	207.3	75.6		280/6000
300DT-A60	980	1170	63.1	235.6	71.8	8.4	315/6000
		1779	47.1	281.4	81.1		355/6000
		2403	36.1	313.3	75.4		400/6000
	740	878	29.9	99.6	71.8	4.3	132/380
		1335	26.5	118.8	81.1		160/380
		1803	20.3	132.2	75.4		160/380
200DT-45B	990	279	31.0	37.4	62.9	3.3	55/380
		557	26.1	49.0	80.8		75/380
		645	23.3	52.6	77.8		75/380
	730	206	16.9	15.1	62.9	2.0	22/380
		410	14.2	19.6	80.8		30/380
		475	12.7	21.1	77.8		30/380
150DT-55B	990	280	53.7	64.8	63.2	3.7	90/380
		517	48.0	88.3	76.5		110/380
		630	45.9	100.8	78.1		132/380
	740	209	30.0	27.0	63.2	2.3	37/380
		387	26.8	36.9	76.5		55/380
		471	25.7	42.2	78.1		55/380
150DT-50	980	123	44.6	27.6	54.1	3.5	37/380
		221	40.1	36.9	65.4		55/380
		279	37.2	43.4	65.2		55/380
	740	92	24.7	11.4	54.1	2.1	18.5/380
		165	22.3	15.3	65.4		22/380
		208	20.6	17.9	65.2		30/380
150DT-40	1480	260	61.2	68.8	63.0	6.5	90/380
		440	53.8	88.2	73.1		110/380
		503	50.7	95.4	72.8		132/380
	980	171	26.5	19.6	63.0	2.6	30/380
		289	23.3	25.1	73.1		37/380
		331	21.9	27.1	72.8		37/380
100DT-45	1480	88	76.4	43.6	42.0	6.0	55/380
		166	65.2	56.9	51.8		75/380
		219	54.3	66.5	48.7		90/380
	970	57	32.8	12.1	42.0	2.4	18.5/380
		109	28.0	16.0	51.8		22/380
		144	23.3	18.8	48.7		30/380
100DT-40B	1480	129	61.0	37.7	56.9	3.5	55/380
		219	56.1	48.7	68.7		75/380
		268	53.6	55.6	70.4		75/380
	970	85	26.2	10.7	56.9	1.7	15/380
		144	24.1	13.8	68.7		22/380
		176	23.0	15.7	70.4		22/380
100DT-35	1480	163	45.9	33.5	60.9	4.1	45/380
		278	41.5	43.7	71.9		55/380
		323	39.2	47.1	73.2		75/380
	970	107	19.7	9.4	60.9	1.9	15/380
		182	17.8	12.3	71.9		18.5/380
		212	16.8	13.3	73.2		18.5/380
80DT-36	1480	86	47.1	23.3	47.4	3.2	30/380
		151	42.0	28.5	60.7		37/380
		167	39.9	29.3	62.0		37/380
	970	56	20.2	6.5	47.4	1.5	11/380
		99	18.0	8.0	60.7		15/380
		109	17.1	8.2	62.0		15/380
65DT-40	1480	71	63.2	26.2	46.7	4.5	37/380
		141	57.5	35.6	62.1		45/380
		159	54.6	36.1	62.1		55/380
	970	47	27.1	7.4	46.7	2.1	11/380
		92	24.7	10.0	62.1		15/380
		104	23.5	10.7	62.1		15/380
65DT-30	1480	44	35.6	9.1	46.7	4.6	15/380
		79	32.6	12.8	54.6		18.5/380
		99	30.7	15.4	53.8		22/380
	960	29	15.2	2.6	46.7	2.2	5.5/380
		51	13.9	3.5	54.6		5.5/380
		64	13.1	4.2	53.8		7.5/380
50DT-40D	1480	33	51.7	13.1	35.4	2.5	18.5/380
		68	43.4	17.8	45.4		30/380
		76	40.8	18.9	44.7		30/380
	970	22	22.5	3.8	35.4	1.2	5.5/380
		45	18.9	5.1	45.1		7.5/380
		50	17.7	5.4	44.7		11/380
50DT-30	1480	34	36.3	7.8	43.1	1.6	11/380
		55	31.9	9.9	48.5		15/380
		78	26.4	12.4	45.4		18.5/380
	960	22	15.7	2.2	43.1	0.8	4/380
		36	13.8	2.8	48.5		4/380
		51	11.4	3.5	45.4		5.5/380
40DT-25 [a]	2950	35.5	88.6	20.7	41.3	-	30/380
		58.5	73.5	27.7	42.5		37/380
		74.7	60.8	31.2	39.6		45/380
	1440	17.3	21.1	2.4	41.3	2.6	4/380
		28.7	17.5	3.2	42.5		5.5/380
		36.5	14.5	3.6	39.6		5.5/380
40DT-20B	2930	16.6	57.5	6.4	40.9	3.5	11/380
		33.3	49.9	8.5	53.0		15/380
		37.1	47.1	9.2	52.0		15/380
	1430	8.1	13.7	0.7	40.9	0.9	1.5/380
		16.3	11.9	1.0	53.0		2.2/380
		18.1	11.2	1.1	52.0		2.2/380
40DT-19	2930	16.3	57.1	6.5	39.2	4.9	11/380
		30.0	54.9	8.1	55.4		15/380
		34.9	53.7	8.7	58.8		15/380
	1400	7.8	13.0	0.7	39.2	1.2	1.5/380
		14.3	12.5	0.9	55.4		1.5/380
		16.7	12.3	1.0	58.8		2.2/380
40DT-17	2900	9.4	44.6	3.4	33.2	4.5	5.5/380
		17.9	42.7	4.2	49.5		7.5/380
		23.4	39.3	4.8	52.4		7.5/380
	1400	4.6	10.4	0.4	33.2	2.5	0.75/380
		8.6	10.0	0.5	49.5		1.1/380
		11.3	9.2	0.5	52.4		1.1/380
25DT-25	1440	9.6	21.6	1.7	33.2	7.1	3/380
		17.8	16.6	2.1	38.0		4/380
		19.9	13.9	2.1	33.8		4/380
	910	6.0	8.6	0.4	33.2	3.3	0.75/380
		11.2	6.6	0.5	38.0		1.1/380
		12.5	5.5	0.6	33.8		1.1/380
25DT-15	2900	9.2	34.4	2.6	32.7	5.3	5.5/380
		17.1	29.5	3.3	41.8		5.5/380
		19.3	27.1	3.5	40.8		5.5/380
	1390	4.4	7.9	0.3	32.7	1.3	0.55/380
		8.2	6.8	0.4	41.8		0.75/380
		6.3	6.2	0.4	40.8		0.75/380
