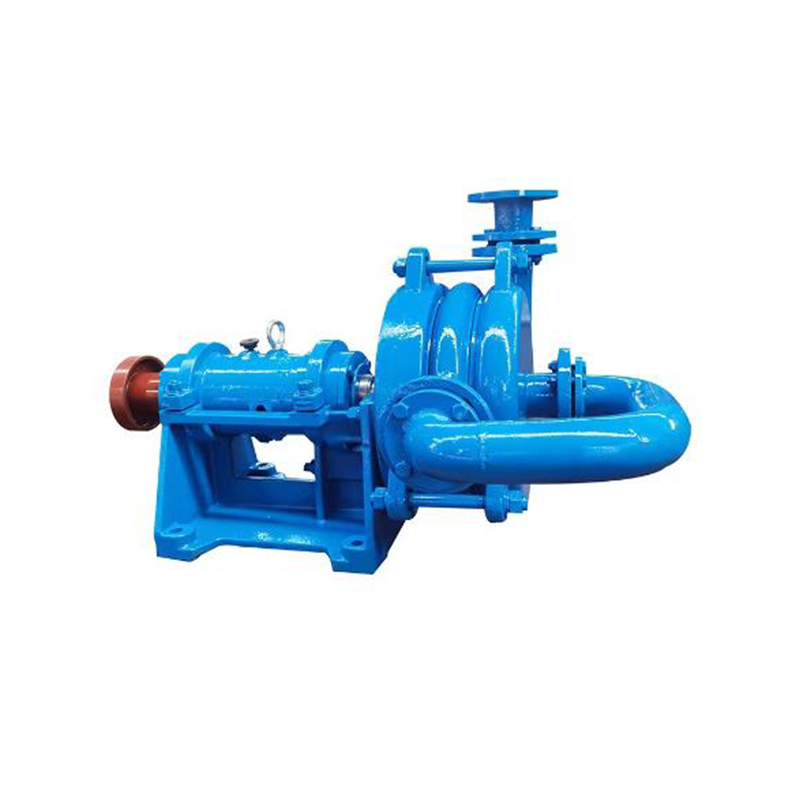

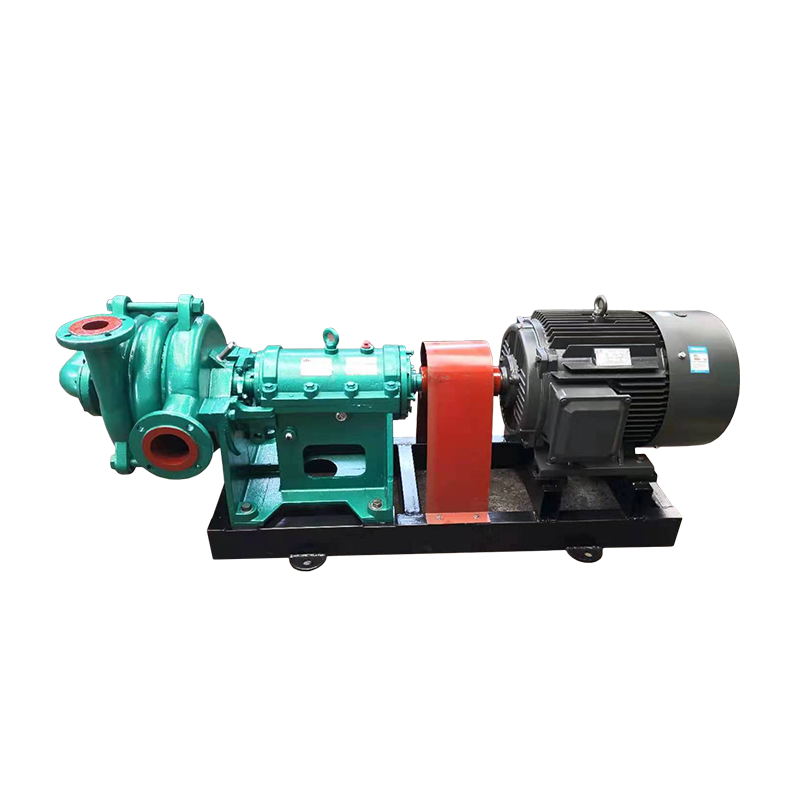

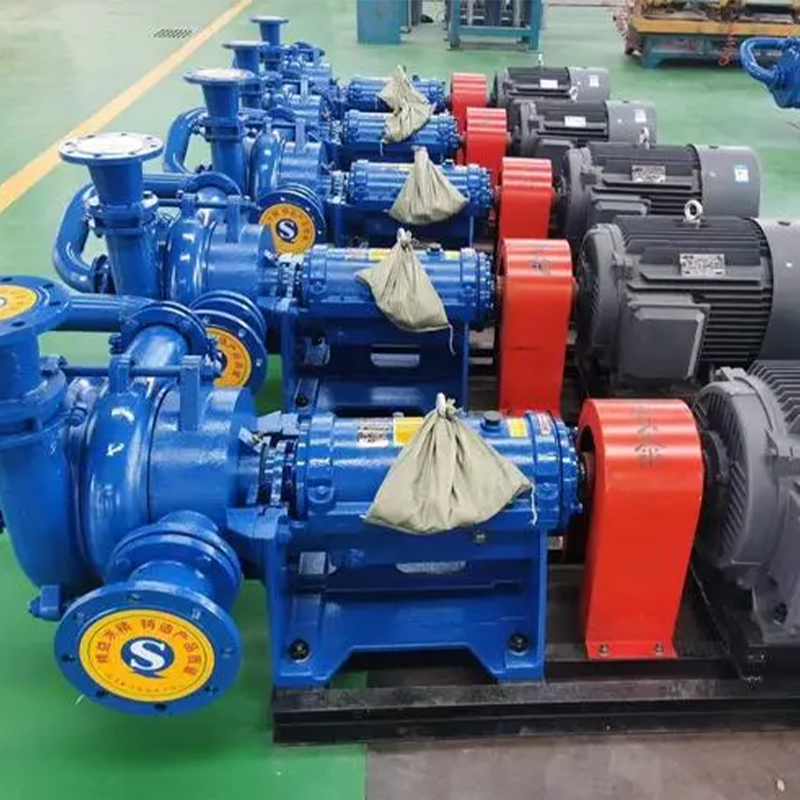

ZJW filter press feed pump

ZJW-II filter press special feed pump is an impurity pump with special performance. In recent years, it has been recognized by the industry as "filter press special feed booster pump". The pump sucks slurry from the rear side, with simple packing seal and no leakage. More importantly, its flow rate and head curve are very steep, which is very suitable for some special industrial and mining industries.

info@cn-pumps.cn

Model Item	Speed r/min	flow m3/h	Lift m	Shaft power K/H	Reference motor model	power （KW）
65ZJW-II	1480	27.5 41.4 55.2 69.0 80.0	76.0 72.2 66.1 56.0 43.5	22.3	Y225M-4	30
					Y225S-4	37
80ZJW-II	1480	40 60 80 100 115	76.0 72.2 66.1 56.0 43.5	32	Y225S-4	37
					Y225M-4	45
100ZJW-II	1480	56. 85. 113 150 169	73.3 69.0 62.5 51.2 44.0	49	Y225M-4	45
					Y250M-4	55
125ZJW-II	1480	70. 105 140 186 245	73.5 71.6 68.6 61.9 48.5	62.5	Y250M-4	55
					Y280S-4	75
125ZJW-II	1480	79.7 119 159 211 279	80. 78. 74.8 67.5 52.9	78.2	Y280S-4	75
					Y280M-4	90
125ZJW-II	1480	58. 87. 116 154 203	91.8 89.1 85.7 77.3 60.6	64.7	Y280S-4	75
					Y280M-4	90
