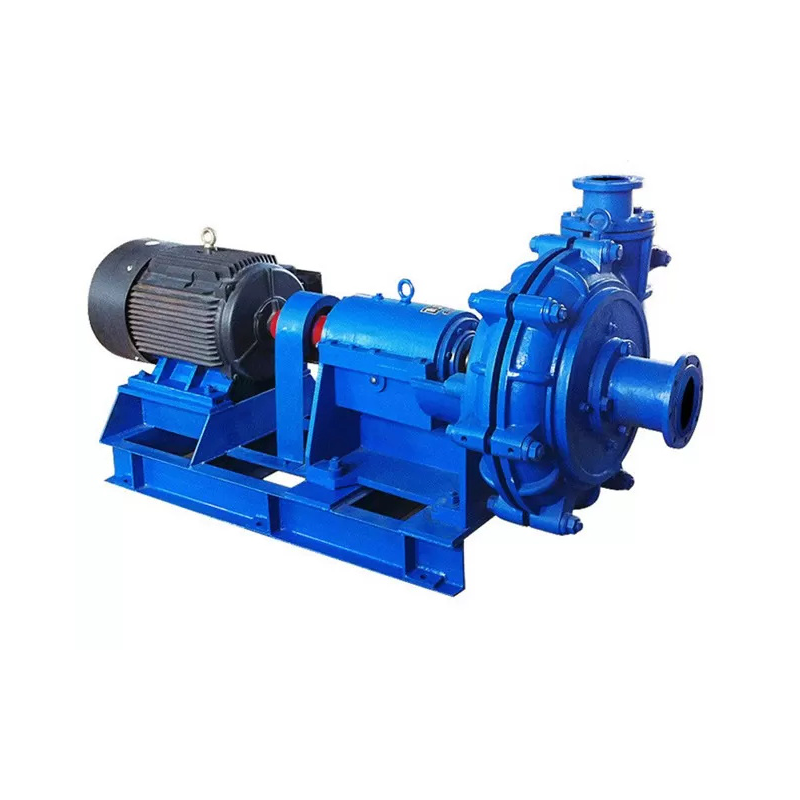

ZJ Industrial Slurry Pump
ZJ industrial slurry pumps are widely used in electric power, metallurgy, mining, coal, building materials, chemical industry and other industrial sectors. They are mainly used to transport abrasive slurries containing solid particles, such as processing concentrates and tailings in ore dressing plants, removing ash and slag in power plants, transporting coal slime and heavy medium coal preparation in coal preparation plants, and transporting ore slurry, etc.
High chromium alloy wear-resistant material.
For example, 100ZJ-I-A36
100: outlet diameter is 100mm
ZJ: slurry pump
I: single-stage slurry pump, two-stage pump is marked with II
A: number of impeller blades. A is 5, B is 4, C is 3, and F is 6
36: impeller diameter is 36cm
The ZJ series slurry pump produced by Lantu Company is also known as mortar pump, mortar pump, sand suction pump, sand washing pump, fine sand recovery pump, and sand pump. It can transport highly abrasive slurry in small flow and low head areas; and transport lightly abrasive slurry in high head and large flow areas. With the development and improvement of impurity pump technology, our company combines user feedback experience, uses the theory of modern fluid mechanics, modern mechanical theory, and computer software design technology; our company has launched the ZJ series slurry pump, which has the characteristics of full models, stable performance, wide coverage of working conditions, and convenient selection.
The ZJ series slurry pump is designed as a single-stage, single-suction, centrifugal slurry pump. According to the structural form, it can be divided into horizontal ZJ series and vertical ZJL series. Horizontal pumps are divided into 350mm, 300mm, 250mm, 200mm, 150mm, 100mm, 80mm, 65mm, 50mm, 40mm and other specifications according to the outlet diameter; each specification of the pump has different impeller diameters to choose from according to the head requirements.
This series of slurry pumps has innovations in hydraulic design and structural design. The flow parts are made of self-developed high-chromium wear-resistant alloy that resists abrasion. It has the remarkable characteristics of high efficiency, energy saving, long service life, light weight, reasonable structure, reliable operation, low vibration, low noise and easy maintenance.
The pump body adopts a double pump shell structure, which is convenient for replacing the flow parts. According to the pressure requirements, the outer pump shell is made of ductile cast iron and the inner shell is made of high-chromium wear-resistant cast iron or cast steel.
ZJ series slurry pumps are widely used in power, metallurgy, coal, building materials, chemical and other industries. They are mainly used to transport abrasive slurries containing solid particles, such as processing concentrate tailings in ore dressing plants, removing ash and slag in power plants, transporting coal slime and heavy medium coal preparation in coal preparation plants, transporting slurry in coastal river mining operations, and transporting mortar in sand washing and sand making enterprises.
The maximum weight concentration that can be handled is: 45% slurry and 60% slurry, which can be operated in series according to customer needs.
ZJ series slurry pumps can adopt two types of shaft seals: auxiliary impeller plus packing combined seal and mechanical seal. The outlet position of the pump can be installed and used at eight different angles at 45 degree intervals according to needs.
model | Maximum power | Clear water performance | Maximum passing particles | Pump weight | ||||
(kW) | flow | Lift | Speed | efficiency | (NPSH)r | (mm) | (kg) | |
(m3/h) | (m) | (r/min) | (%) | (m) | ||||
350ZJ-I-F100 | 560 | 526-2339 | 14.9-62.8 | 300-590 | 77.6 | 4.4 | 96 | 5470 |
350ZJ-I-C104 | 560 | 1335-3300 | 36.6-66.9 | 490-590 | 77.6 | 7.3 | 150 | 6750 |
350ZJ-I-C100 | 710 | 834-3502 | 11.1-60.0 | 300-593 | 73 | 7.4 | 150 | 6710 |
350ZJ-I-A85 | 710 | 1025-3741 | 12.3-62.3 | 400-742 | 77.2 | 10.5 | 71 | 4800 |
350ZJ-I-A80 | 630 | 837-3575 | 8.4-56.4 | 400-742 | 75.7 | 10.5 | 70 | 4100 |
300ZJ-I-A100 | 450 | 464-1826 | 15.3-65.2 | 300-590 | 81.1 | 3 | 88 | 4580 |
300ZJ-I-B100 | 450 | 464-1826 | 15.3-65.2 | 300-590 | 76.2 | 3 | 112 | 4580 |
300ZJ-I-A95 | 400 | 441-1735 | 13.8-58.8 | 300-590 | 78.1 | 3 | 88 | 4535 |
300ZJ-I-A90 | 560 | 505-1844 | 21.2-79.9 | 400-730 | 82.8 | 3.9 | 85 | 4656 |
300ZJ-I-C90 | 400 | 604-2392 | 10.9-50.9 | 300-590 | 78.6 | 3.6 | 150 | 5060 |
300ZJ-I-A85 | 450 | 477-1742 | 18.9-71.3 | 400-730 | 79.8 | 3.8 | 85 | 4525 |
300ZJ-I-A70 | 630 | 635-2333 | 16.0-76.8 | 490-980 | 80.4 | 3.9 | 92 | 3274 |
300ZJ-I-A65 | 500 | 589-2166 | 13.8-66.2 | 490-980 | 77.4 | 3.7 | 92 | 3245 |
300ZJ-I-A56 | 250 | 395-1568 | 9.7-46.0 | 490-980 | 80.9 | 3.5 | 96 | 2340 |
250ZJ-I-A103 | 560 | 402-1573 | 29.7-110.5 | 400-730 | 74.5 | 2.8 | 69 | 5230 |
250ZJ-I-A96 | 560 | 403-1466 | 25.4-93.7 | 400-730 | 77.8 | 3.5 | 69 | 4200 |
250ZJ-I-A90 | 450 | 378-1374 | 22.3-82.4 | 400-730 | 73.8 | 3.4 | 69 | 4145 |
250ZJ-I-A85 | 800 | 376-1504 | 30.1-128.7 | 490-980 | 76.5 | 3.5 | 76 | 4100 |
250ZJ-I-A83 | 800 | 367-1469 | 28.7-122.7 | 490-980 | 75.5 | 3.5 | 76 | 4085 |
250ZJ-I-A80 | 710 | 354-1416 | 26.7-114.0 | 490-980 | 73.5 | 3.4 | 76 | 4060 |
250ZJ-I-C80 | 450 | 451-1790 | 7.4-38.3 | 300-592 | 75.1 | 3.3 | 120 | 4832 |
250ZJ-I-A78 | 630 | 415-1796 | 21.1-102.5 | 490-980 | 71.5 | 3.2 | 76 | 4045 |
250ZJ-I-A75 | 560 | 300-1480 | 20.8-97.5 | 490-980 | 77.5 | 3 | 72 | 2760 |
250ZJ-I-A73 | 500 | 292-1441 | 19.7-92.4 | 490-980 | 76.5 | 3 | 72 | 2745 |
250ZJ-I-A70 | 450 | 280-1381 | 18.1-84.9 | 490-980 | 74.5 | 2.9 | 72 | 2725 |
250ZJ-I-A68 | 450 | 272-1342 | 17.1-80.1 | 490-980 | 73.5 | 2.7 | 72 | 2712 |
250ZJ-I-A65 | 315 | 299-1249 | 15.4-71.0 | 490-980 | 76.9 | 3 | 72 | 2520 |
250ZJ-I-A63 | 315 | 290-1211 | 14.4-66.7 | 490-980 | 75.9 | 3 | 72 | 2508 |
250ZJ-I-A60 | 280 | 276-1153 | 13.1-60.5 | 490-980 | 73.9 | 2.8 | 72 | 2490 |
200ZJ-I-A85 | 560 | 221-907 | 32.0-133.7 | 490-980 | 70.5 | 2.8 | 54 | 3844 |
200ZJ-I-A75 | 355 | 225-900 | 22.8-102.9 | 490-980 | 74.1 | 3 | 56 | 2880 |
200ZJ-I-A73 | 355 | 219-876 | 21.6-97.5 | 490-980 | 73.1 | 3 | 56 | 2865 |
200ZJ-I-A70 | 315 | 205-976 | 19.4-86.4 | 490-980 | 75.6 | 2.8 | 56 | 2256 |
200ZJ-I-A68 | 315 | 199-948 | 18.3-81.5 | 490-980 | 74.6 | 2.8 | 56 | 2248 |
200ZJ-I-A65 | 250 | 235-950 | 16.4-72.0 | 490-980 | 79.6 | 2.5 | 62 | 2000 |
200ZJ-I-A63 | 250 | 228-921 | 15.4-67.6 | 490-980 | 78.6 | 2.5 | 62 | 1988 |
200ZJ-I-A60 | 185 | 218-870 | 13.9-62.0 | 490-980 | 83.5 | 2.5 | 62 | 1800 |
200ZJ-I-A58 | 185 | 211-841 | 13.0-57.9 | 490-980 | 82.5 | 2.5 | 62 | 1791 |
150ZJ-I-A71 | 220 | 142-552 | 21.8-93.8 | 490-980 | 69.8 | 2.4 | 48 | 2093 |
150ZJ-I-A70 | 185 | 93-401 | 20.2-91.2 | 490-980 | 62.3 | 2 | 37 | 1943 |
150ZJ-I-A65 | 200 | 150-600 | 17.4-75.7 | 490-980 | 70.8 | 2.5 | 48 | 1892 |
150ZJ-I-A63 | 185 | 146-582 | 16.3-71.1 | 490-980 | 69.8 | 2.5 | 48 | 1880 |
150ZJ-I-A60 | 160 | 135-550 | 14.7-63.5 | 490-980 | 75.9 | 2.5 | 48 | 1760 |
150ZJ-I-A58 | 132 | 131-532 | 13.7-59.3 | 490-980 | 74.9 | 2.5 | 48 | 1730 |
150ZJ-I-C58 | 160 | 134-596 | 12.8-61.0 | 490-980 | 69.1 | 2 | 75 | 1825 |
150ZJ-I-A57 | 110 | 95-427 | 13.2-56.3 | 490-980 | 67.8 | 1.8 | 32 | 1820 |
150ZJ-I-A55 | 110 | 124-504 | 12.3-53.4 | 490-980 | 72.9 | 2.3 | 48 | 1810 |
150ZJ-I-A50 | 75 | 115-460 | 9.5-43.1 | 490-980 | 76.8 | 2.5 | 48 | 1198 |
150ZJ-I-A48 | 75 | 111-442 | 8.7-39.7 | 490-980 | 75.8 | 2.5 | 48 | 1185 |
150ZJ-I-C42 | 132 | 142-550 | 12.1-62.8 | 700-1480 | 77.1 | 2.2 | 69 | 1070 |
100ZJ-I-A50 | 160 | 85-360 | 20.5-100.2 | 700-1480 | 69.6 | 2.5 | 34 | 987 |
100ZJ-I-A46 | 132 | 79-331 | 17.3-84.8 | 700-1480 | 67.6 | 2.3 | 34 | 973 |
100ZJ-I-A42 | 90 | 66-275 | 14.7-70.8 | 700-1480 | 71 | 2.5 | 35 | 625 |
100ZJ-I-A39 | 75 | 61-255 | 12.6-61.0 | 700-1480 | 39 | 2.4 | 35 | 615 |
100ZJ-I-B42 | 90 | 83-365 | 12.7-66.8 | 700-1480 | 71.6 | 2.5 | 40 | 635 |
100ZJ-I-A36 | 55 | 61-245 | 9.7-49.5 | 700-1480 | 71.6 | 2 | 32 | 597 |
100ZJ-I-A33 | 45 | 56-225 | 8.2-41.6 | 700-1480 | 69.6 | 1.8 | 32 | 590 |
80ZJ-I-A52 | 160 | 51-242 | 22.1-109.8 | 700-1480 | 56.3 | 2.1 | 21 | 993 |
80ZJ-I-A42 | 75 | 61-204 | 14.4-70.4 | 700-1480 | 66.7 | 2.5 | 24 | 599 |
80ZJ-I-A39 | 55 | 57-189 | 12.4-60.7 | 700-1480 | 64.7 | 2.4 | 24 | 589 |
80ZJ-I-A36 | 45 | 46-190 | 9.6-51.4 | 700-1480 | 67.7 | 2.5 | 24 | 559 |
80ZJ-I-A33 | 37 | 43-174 | 8.0-43.2 | 700-1480 | 65.7 | 2.3 | 24 | 552 |
65ZJ-I-A30 | 15 | 23-79 | 7.4-34.8 | 700-1460 | 63.5 | 2 | 19 | 450 |
65ZJ-I-A27 | 11 | 20-71 | 6.0-28.2 | 700-1460 | 61.5 | 1.8 | 19 | 445 |
50ZJ-I-A50 | 90 | 27-111 | 22.3-110.7 | 700-1480 | 45.1 | 3 | 13 | 941 |
50ZJ-I-A46 | 55 | 23-94 | 17.9-85.8 | 700-1480 | 44.7 | 1.4 | 14 | 657 |
50ZJ-I-A33 | 18.5 | 12-54 | 7.7-42.5 | 700-1480 | 42.1 | 2.9 | 13 | 395 |
40ZJ-I-A19 | 15 | 8.0-34.9 | 12.8-57.1 | 1430-2930 | 58.8 | 1.3 | 11 | 116 |
40ZJ-I-A17 | 7.5 | 4.5-23.4 | 9.1-44.6 | 1400-2900 | 52.4 | 2.5 | 11 | 90 |
