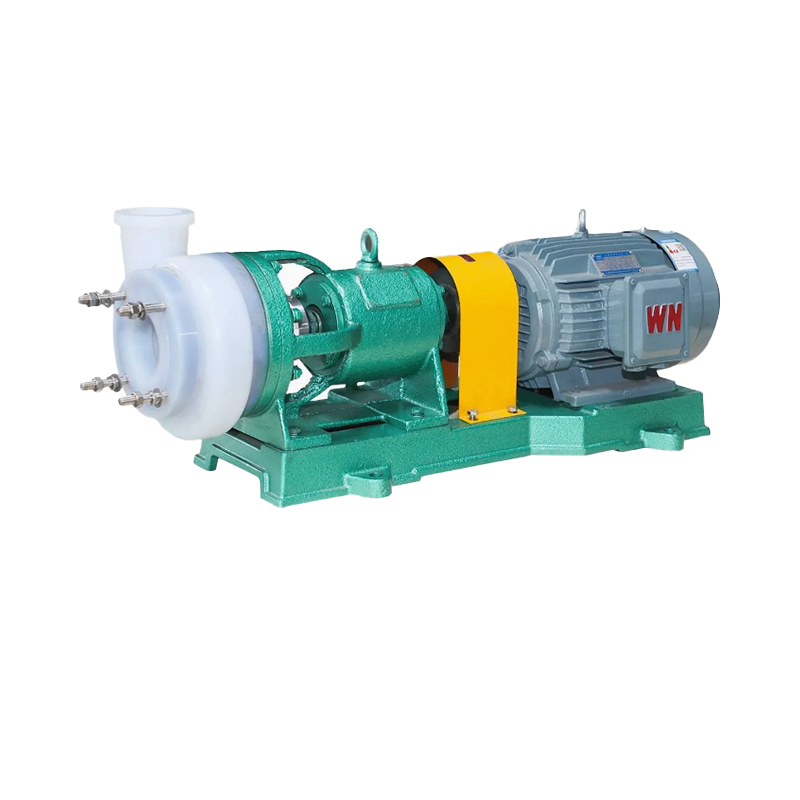

FB type corrosion resistant pump

AFB, FB series pumps are single-stage single-suction cantilever corrosion-resistant centrifugal pumps suitable for conveying corrosive liquids without solid particles. The temperature of the conveyed medium is -20℃-150℃, and the pump inlet pressure cannot be greater than 0.2Mpa. They are widely used in industrial sectors such as petroleum, chemical industry, metallurgy, synthetic fiber, pharmaceuticals, food, brewing, etc., and can also be used for water supply and drainage in factories, mines, enterprises and cities.

info@cn-pumps.cn

model	Flow Q		Lift H	Speed	efficiency(%)	Shaft power	Power (Kw)	NPSH
	Flow Q		(m)	(r/min)		(Kw)		(m)
	(m 3 /h)	(L/s)
25FB-16	3.6	1	16	2900	33	0.48	1.1	4
25FB-16A	3.27	0.91	12.5	2900	34	0.34	0.75	4
25FB-25	3.6	1	25	2900	30	0.82	1.5	4
25FB-25A	3.27	0.91	40	2900	31	0.57	1.1	4
25FB-40	3.6	1	40	2900	23	1.71	3	4
25FB-40	3.27	0.91	33.5	2900	24	1.21	2.2	4
40FB-16	7.2	2	16	2900	44	0.71	1.5	4
40FB-16A	6.55	1.82	12	2900	46.7	0.5	1.1	4
40FB-20	7.2	2	20	2900	42	0.93	1.5	4
40FB-25	7.2	2	25	2900	39	1.26	2.2	4
40FB-25A	6.55	1.82	20.5	2900	40	0.94	1.5	4
40FB-40	7.2	2	40	2900	32	2.45	3	4
40FB-40A	6.55	1.82	32	2900	33.5	1.73	2.2	4
40FB-63	7.2	2	63	2900	27	5.42	7.5	4
40FB-63A	6.72	1.87	56	2900	29	3.75	5.5	4
50FB-16	14.4	4	16	2900	56	1.09	2.2	3.5
50FB-16A	13.1	3.64	12	2900	57	0.81	1.5	3.5
50FB-25	14.4	4	25	2900	52	1.83	4	3.5
50FB-25A	13.1	3.64	20	2900	51.5	1.42	3	3.5
50FB-40	14.4	4	40	2900	46	3.32	5.5	3.5
50FB-40A	13.1	3.64	32.5	2900	45	2.62	5.5	3.5
50FB-63	14.4	4	63	2900	39	6.16	11	3.5
50FB-63A	13.1	3.64	54.5	2900	38	5.24	7.5	3.5
65FB-25	28.8	8	25	2900	62	3.16	5.5	3.5
65FB-25A	26.2	7.28	20	2900	62	2.36	4	3.5
65FB-30	28.8	8	30	2900	60.5	3.89	7.5	3.5
65FB-30A	26.2	7.28	25	2900	61	2.79	5.5	3.5
65FB-40	28.8	8	40	2900	57.5	5.46	11.5	3.5
65FB-40A	26.2	7.28	32	2900	58	4	7.5	3.5
65FB-64	28.8	8	64	2900	52.5	9.57	15	3.5
65FB-64A	26.2	7.28	55	2900	51.5	7.82	7.5	3.5
80FB-15	54.4	15	15	2900	69	3.2	5.5	3
80FB-15A	49.1	13.65	11.5	2900	69	2.62	4	3
80FB-24	54.4	15	24	2900	68	5.19	7.5	3
80FB-24A	49.1	13.65	19	2900	68	3.94	7.5	3
80FB-38	54.4	15	38	2900	66.5	8.41	15	3
80FB-38A	49.1	13.65	30.5	2900	66.5	6.34	11	3
80FB-60	54.4	15	60	2900	62.8	14.06	22	3
80FB-60A	49.1	13.65	52	2900	62.5	11.56	18.5	3
100FB-23	100.8	28	23	2900	73	8.65	15	3
100FB-23A	91.8	25.5	17.5	2900	73	6.51	11	3
100FB-37	100.8	28	37	2900	73	13.9	22	3
100FB-37A	91.8	25.5	29	2900	70.5	11	18.5	3
100FB-57	100.8	28	57	2900	70.5	22.2	37	3
100FB-57A	91.8	25.5	52	2900	70.5	18.77	37	3
150FB-22	190.8	53	22	2900	77	14.86	22	2.5
150FB-22A	173.5	48.2	17.5	2900	78	10.6	18.5	2.5
150FB-35	190.8	53	35	2900	76	13.94	37	2.5
150FB-35A	173.5	48.2	28	2900	76	17.42	30	2.5
150FB-56	190.8	53	56	2900	76	38.3	55	2.5
150FB-56A	173.5	48.2	50	2900	76	32.1	37	2.5
