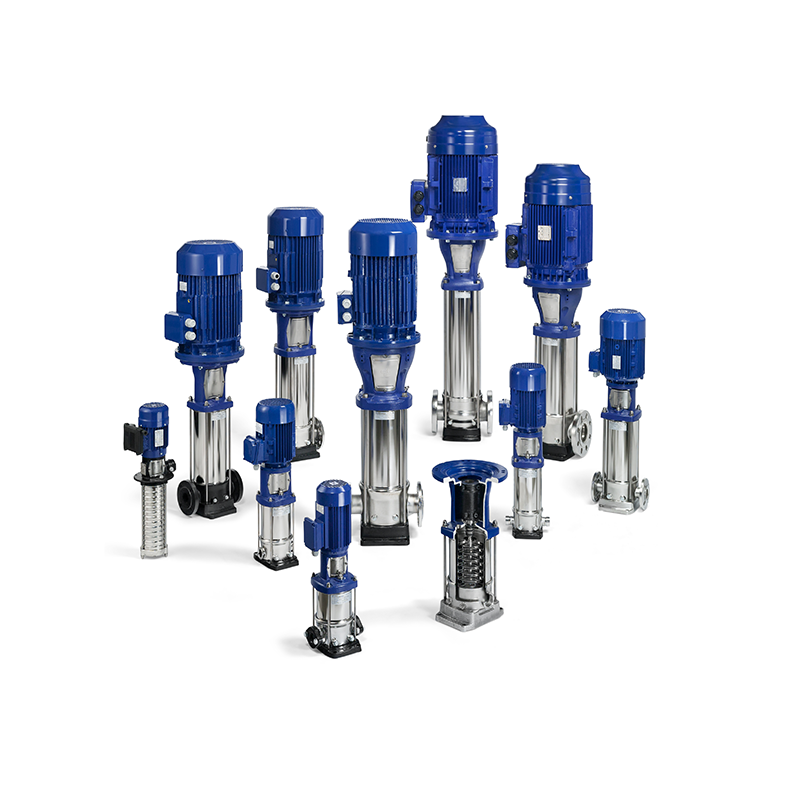

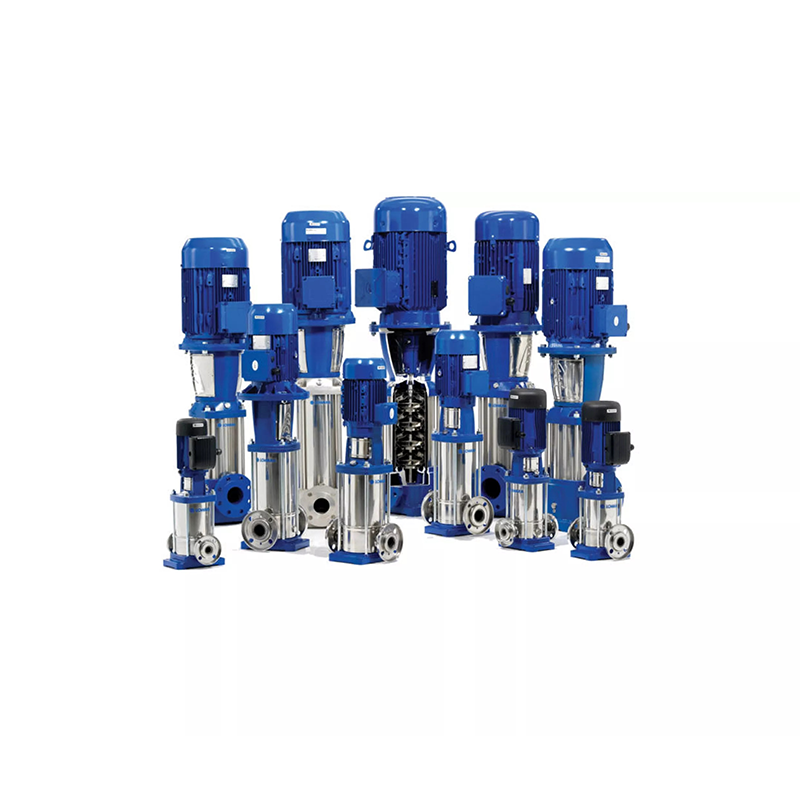

GDF vertical stainless steel multistage pump

GDF vertical stainless steel multistage pump is designed and manufactured in accordance with JB/TQ6435-92 standard in combination with user requirements and fire-fighting standards. This series of pumps adopts a vertical segmental stainless steel shell structure, so that the pump inlet and outlet are located on the same horizontal line and have the same diameter, and can be installed in the pipeline like a valve. It also combines the advantages of high pressure of multistage pumps, small footprint of vertical pumps and easy installation of pipeline pumps.

info@cn-pumps.cn

model	flow	Lift	power	Speed	efficiency
	(m3/h)	(m)	(kw)	(r/min)	%
GDLF2-20	2	15	0.37	2900	72
GDLF2-30	2	22	0.37	2900	72
GDLF2-40	2	30	0.55	2900	72
GDLF2-50	2	37	0.55	2900	72
GDLF2-60	2	45	0.75	2900	72
GDLF2-70	2	52	0.75	2900	72
GDLF2-80	2	60	1.1	2900	72
GDLF2-90	2	67	1.1	2900	72
GDLF2-100	2	75	1.1	2900	72
GDLF2-110	2	82	1.1	2900	72
GDLF4-110	4	88	2.2	2900	74
GDLF4-120	4	96	2.2	2900	74
GDLF4-130	4	104	3	2900	74
GDLF4-140	4	112	3	2900	74
GDLF4-150	4	120	3	2900	74
GDLF4-160	4	128	3	2900	74
GDLF4-170	4	136	4	2900	74
GDLF4-180	4	144	4	2900	74
GDLF16-140	16	168	15	2900	84
GDLF32-10-1	32	10	1.5	2900	77
GDLF32-10	32	14.5	2.2	2900	77
GDLF32-20-2	32	20	3	2900	77
GDLF32-20	32	29	4	2900	77
GDLF32-30-2	32	35	5.5	2900	77
GDLF32-30	32	43.5	5.5	2900	77
GDLF32-40-2	32	50	7.5	2900	77
GDLF32-40	32	58	7.5	2900	77
GDLF32-50-2	32	65	11	2900	77
GDLF45-60	45	77	22	2900	79
GDLF45-60-2	45	85	22	2900	79
GDLF45-70	45	92	30	2900	79
GDLF45-70-2	45	100	30	2900	79
GDLF45-80	45	107	30	2900	79
GDLF45-80-2	45	115	30	2900	79
GDLF45-90	45	122	30	2900	79
GDLF45-90-2	45	130	37	2900	79
GDLF45-100	45	137	37	2900	79
GDLF45-100-2	45	145	37	2900	79
GDLF64-10-1	64	12	4	2900	80
GDLF64-10	64	20	5.5	2900	80
GDLF64-20-2	64	26	7.5	2900	80
GDLF64-20-1	64	35	11	2900	80
GDLF64-20	64	40	11	2900	80
GDLF64-30-2	64	48	15	2900	80
GDLF64-30-1	64	55	15	2900	80
GDLF64-30	64	62	18.5	2900	80
GDLF64-40-2	64	70	18.5	2900	80
GDLF64-40-1	64	77	22	2900	80
GDLF64-40	64	85	22	2900	80
GDLF64-50-2	64	92	30	2900	80
GDLF64-50-1	64	100	30	2900	80
GDLF64-50	64	107	30	2900	80
GDLF64-60-2	64	115	30	2900	80
