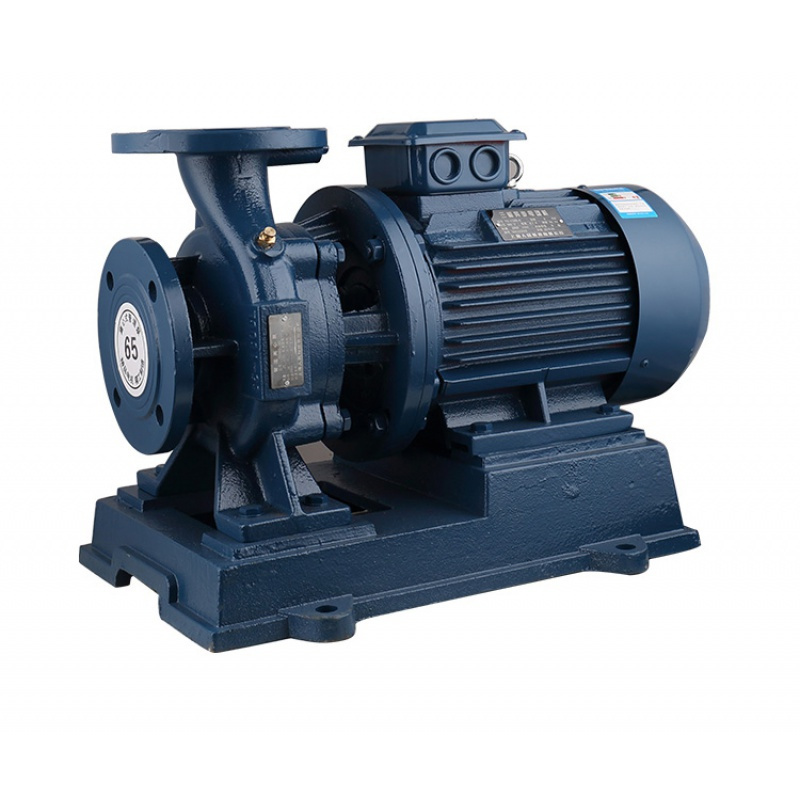

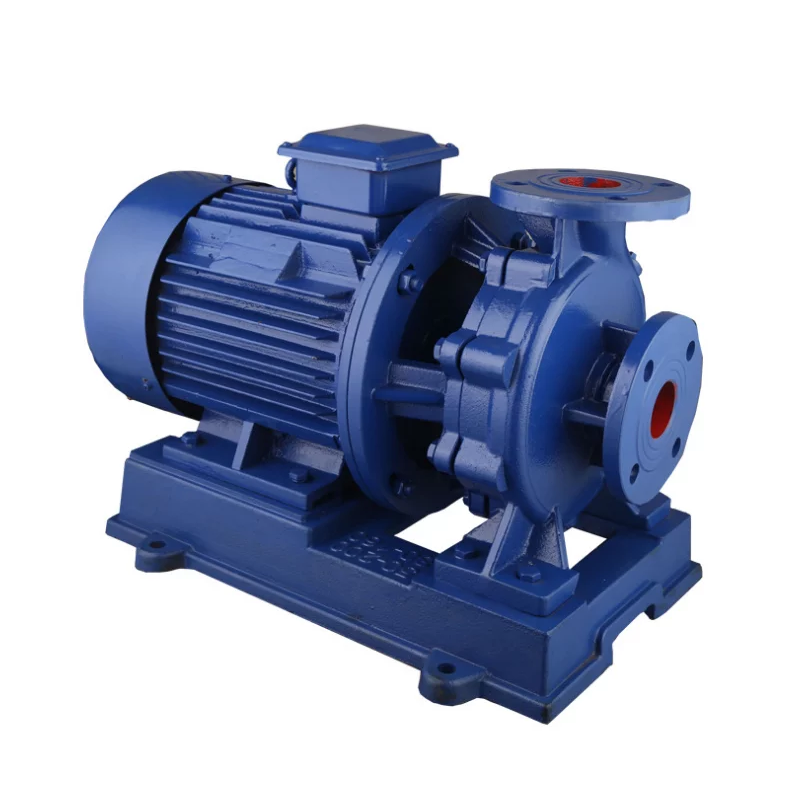

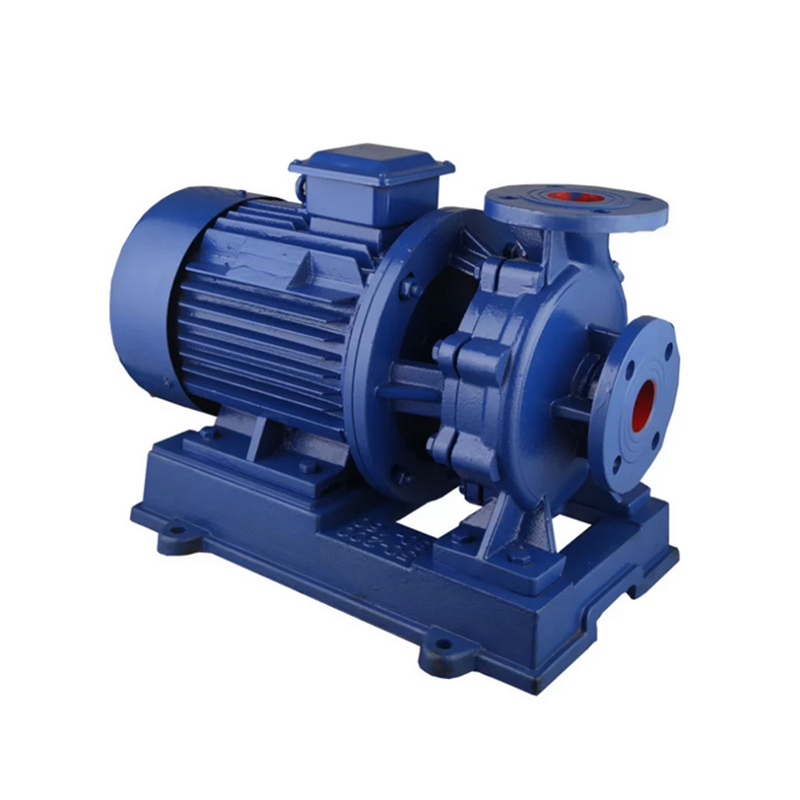

ISW Series Horizontal Centrifugal Pump

ISW horizontal centrifugal pump is designed based on the structural combination of IS centrifugal pump and ISG vertical pump, and is an energy-saving product designed and manufactured in strict accordance with ISO2858 and JB/T53058-93 standard for pipeline centrifugal pumps. At the same time, hot water pumps, high temperature pumps, chemical pumps, oil pumps, etc. are derived from ISW according to different operating temperatures and media.

info@cn-pumps.cn

model	Flow Q		Lift	efficiency	Speed	Motor power	Allowable NPSH
	m/h	l/s	m	%	r/min	KW	m
50-125A	11	3.05	16	57	2900	1.1	2.3
50-160	12.5	3.47	32	52	2900	3	2.3
50-160A	11.7	3.25	28	51	2900	2.2	2.3
50-160B	10.4	2.89	22	50	2900	1.5	2.3
50-200	12.5	3.47	50	46	2900	5.5	2.3
50-200A	11.7	3.25	44	45	2900	4	2.3
50-200B	10.6	2.94	36	44	2900	3	2.3
50-250	12.5	3.47	80	38	2900	11	2.3
50-250A	11.6	3.22	70	38	2900	7.5	2.3
50-250B	10.8	3	60	37	2900	7.5	2.3
50-250C	10	2.78	52	36	2900	5.5	2.3
50-100(I)	25	6.94	12.5	69	2900	1.5	2.5
50-100(I)A	22.3	6.19	10	67	2900	1.1	2.5
50-125(I)	25	6.94	20	68	2900	3	2.5
50-125(I)A	22.3	6.19	16	66	2900	2.2	2.5
50-160(I)	25	6.94	32	63	2900	4	2.5
50-160(I)A	23.4	6.5	28	62	2900	4	2.5
50-160(I)B	21.6	6	24	58	2900	3	2.5
50-200(I)	25	6.94	50	58	2900	7.5	2.5
50-200(I)A	23.5	6.53	44	57	2900	7.5	2.5
50-200(I)B	21.8	6.06	38	55	2900	5.5	2.5
50-250(I)	25	6.94	80	50	2900	15	2.5
50-250(I)A	23.4	6.5	70	50	2900	11	2.5
50-250(I)B	21.6	6	60	49	2900	11	2.5
50-315(I)	25	6.94	125	40	2900	30	2.5
50-315(I)A	23.7	6.58	113	40	2900	22	2.5
50-315(I)B	22.5	6.25	101	39	2900	18.5	2.5
50-315(I)C	20.6	5.72	85	38	2900	15	2.5
65-100	25	6.94	12.5	69	2900	1.5	2.5
65-100A	22.3	6.19	10	67	2900	1.1	2.5
65-125	25	6.94	20	68	2900	3	2.5
65-125A	22.3	6.19	16	66	2900	2.2	2.5
65-160	25	6.94	32	63	2900	4	2.5
65-160A	23.4	6.5	28	62	2900	4	2.5
65-160B	21.6	6	24	58	2900	3	2.5
65-200	25	6.94	50	58	2900	7.5	2.5
65-200A	23.5	6.53	44	57	2900	7.5	2.5
65-200B	21.8	6.06	38	55	2900	5.5	2.5
65-250	25	6.94	80	50	2900	15	2.5
65-250A	23.4	6.5	70	50	2900	11	2.5
65-250B	21.6	6	60	49	2900	11	2.5
65-315	25	6.94	125	40	2900	30	2.5
65-315A	23.7	6.58	113	40	2900	22	2.5
65-315B	22.5	6.25	101	39	2900	18.5	2.5
65-315C	20.6	5.72	85	38	2900	15	2.5
65-100(I)	50	13.9	12.5	73	2900	3	3
65-100(I)A	44.7	12.4	10	72	2900	2.2	3
65-125(I)	50	13.9	20	72.5	2900	5.5	3
