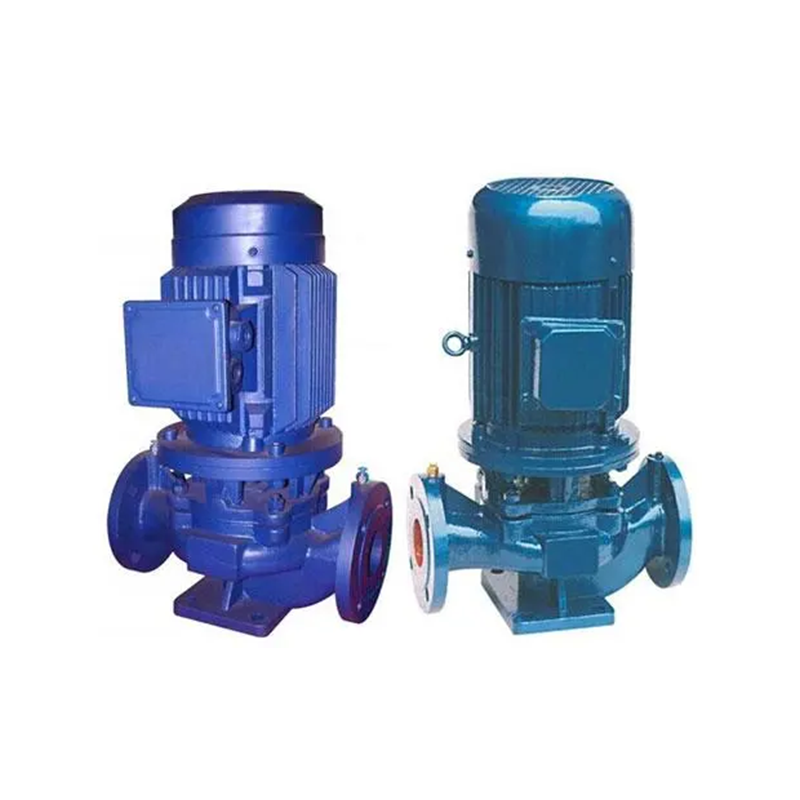

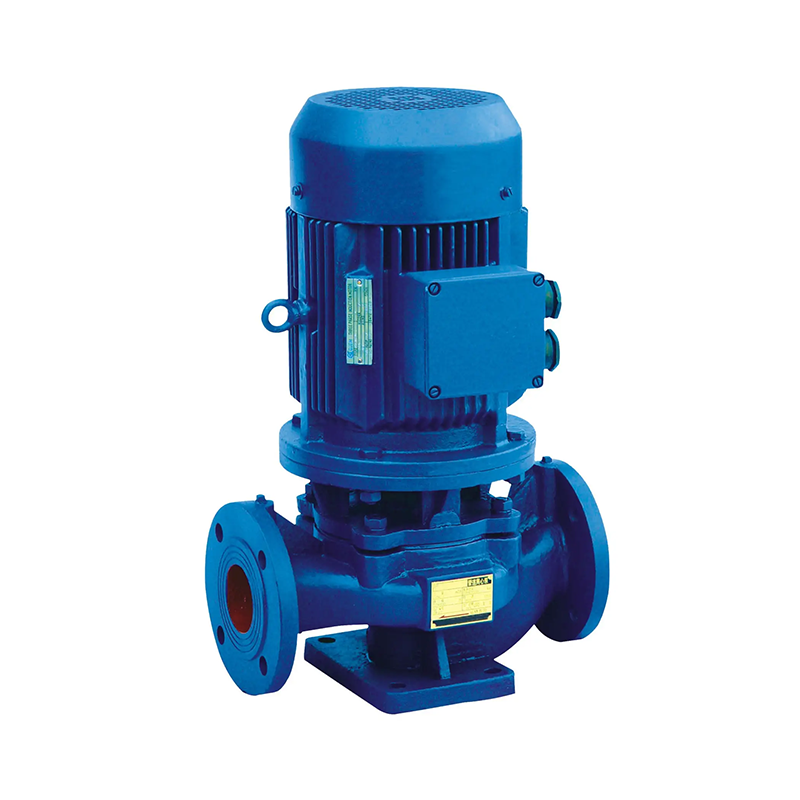

ISG series vertical centrifugal pump

ISG pipeline centrifugal pump is designed and manufactured according to the performance parameters of IS centrifugal pump and pipeline pump, referring to ISO2858 and pipeline centrifugal pump standard JB/T53058-93. At the same time, hot water pump, high temperature pump, chemical pump, oil pump, etc. are derived from ISG type according to different use temperature, medium, etc.

info@cn-pumps.cn

ISG vertical pipeline pump technical parameters
model	Flow Q		Lift(m)	efficiency(%)	Speed (r/min)	Motor power (kW)	Required NPSH（NPSH）r	weight（kg）
model	(m3/h)	(L/S)	Lift(m)	efficiency(%)	Speed (r/min)	Motor power (kW)	Required NPSH（NPSH）r	weight（kg）
15-80	1.5	0.42	8	34	2800	0.18	2.3	17
20-110	2.5	0.69	15	34	2800	0.37	2.3	25
20-160	2.5	0.69	32	25	2900	0.75	2.3	29
25-110	4	1.11	15	42	2900	0.55	2.3	26
25-1254	4	1.11	20	36	2900	0.75	2.3	28
25-125A	3.6	1	16	35	2900	0.55	2.3	27
25-160	4	1.11	32	32	2900	1.5	2.3	39
25-160A	3.7	1.03	28	31	2900	1.1	2.3	34
32-100	4.5	12.5	12.5	44	2900	0.55	2	27
32-100(I)	6.3	1.75	12.5	54	2900	0.75	2	32
32-125	5	1.39	20	44	2900	0.75	2.3	28
32-125A	4.5	1.25	16	43	2900	0.55	2.3	28
32-160	6.5	5	32	44	2900	1.5	2.3	39
32-160A	4	1.1	25	34	2900	1.1	2	38
32-160(I)	6.3	1.75	32	40	2900	2.2	2	47
32-200	4.5	12.5	50	32	2900	3	2	55
32-200(I)	6.3	1.75	50	33	2900	4	2	43
32-200A	4	1.11	44	40	2900	2.2	2	74
40-100	6.3	1.75	12.5	54	2900	0.55	2.3	32
40-100A	5.6	1.56	10	52	2900	0.37	2.3	32
40-125	6.3	1.75	20	46	2900	1.1	2.3	34
40-125A	5.6	1.56	16	45	2900	0.75	2.3	33
40-160	6.3	1.75	32	40	2900	2.2	2.3	47
40-160A	5.9	1.64	28	39	2900	1.5	2.3	43
40-160B	5.5	1.53	24	38	2900	1.1	2.3	38
40-200	6.3	1.75	50	33	2900	4	2.3	74
40-200A	5.9	1.64	44	31	2900	3	2.3	62
40-200B	5.3	1.47	36	29	2900	2.2	2.3	52
40-250	6.3	1.75	80	28	2900	7.5	2.3	105
40-250A	5.9	1.64	70	28	2900	5.5	2.3	98
40-250B	5.5	1.53	60	27	2900	4	2.3	77
40-100(I)	12.5	3.47	12.5	62	2900	1.1	2.3	34
40-100(I)A	11	3.05	10	60	2900	0.75	2.3	32
40-125(I)	12.5	347	20	58	2900	1.5	2.3	38
40-125(I)A	11	3.05	16	57	2900	1.1	2.3	33
40-160(I)	12.5	3.47	32	52	2900	3	2.3	56
40-160(I)A	11.7	3.25	28	51	2900	2.2	2.3	47
40-160(I)B	10.4	2.89	22	50	2900	1.5	2.3	43
40-200(I)	12.5	3.47	50	46	2900	5.5	2.3	85
40-200(I)A	11.7	3.25	44	45	2900	4	2.3	75
40-200(I)B	10.6	2.94	36	44	2900	3	2.3	63
40-250(I)	12.5	3.47	80	38	2900	11	2.3	145
40-250(I)A	11.6	3.22	70	38	2900	7.5	2.3	95
40-250(I)B	10.8	3	60	37	2900	5.5	2.3	94
40-250(I)C	10	2.78	52	36	2900	5.5	2.3	88
50-100	12.5	3.47	12.5	62	2900	1.1	2.3	36
50-100A	11	3.05	10	60	2900	0.75	2.3	35
50-125	12.5	3.47	20	58	2900	1.5	2.3	43
50-125A	11	3.05	16	57	2900	1.1	2.3	38
50-160	12.5	3.47	32	52	2900	3	2.3	59
50-160A	11.7	3.25	28	51	2900	2.2	2.3	51
50-160B	10.4	2.89	22	50	2900	1.5	2.3	47
50-200	12.5	3.47	50	46	2900	5.5	2.3	101
50-200A	11.7	3.25	44	45	2900	4	2.3	80
50-200B	10.6	2.94	36	44	2900	3	2.3	68
50-250	12.5	3.47	80	38	2900	11	2.3	160
50-250A	11.6	3.22	70	38	2900	7.5	2.3	115
50-250B	10.8	3	60	37	2900	5.5	2.3	114
50-250C	10	2.78	52	36	2900	5.5	2.3	108
50-100(I)	25	6.94	12.5	69	2900	1.5	2.5	41
50-100(I)A	22.3	6.19	10	67	2900	1.1	2.5	36
50-125(I)	25	6.94	20	68	2900	3	2.5	56
50-125(I)A	22.3	6.19	16	66	2900	2.2	2.5	48
50-160(I)	25	6.94	32	63	2900	4	2.5	72
50-160(I)A	23.4	6.5	28	62	2900	3	2.5	71
50-160(I)B	21.6	6	24	58	2900	2.2	2.5	59
50-200(I)	25	6.94	50	58	2900	7.5	2.5	108
50-200(I)A	23.5	6.53	44	57	2900	5.5	2.5	107
50-200(I)B	21.8	6.06	38	55	2900	4	2.5	100
50-250(I)	25	6.94	80	50	2900	15	2.5	175
