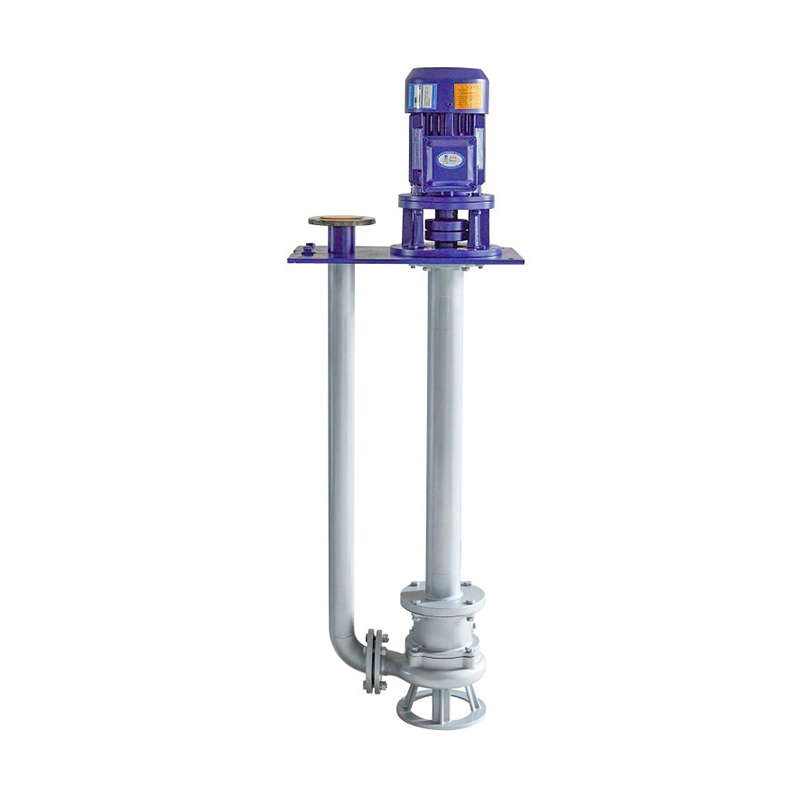

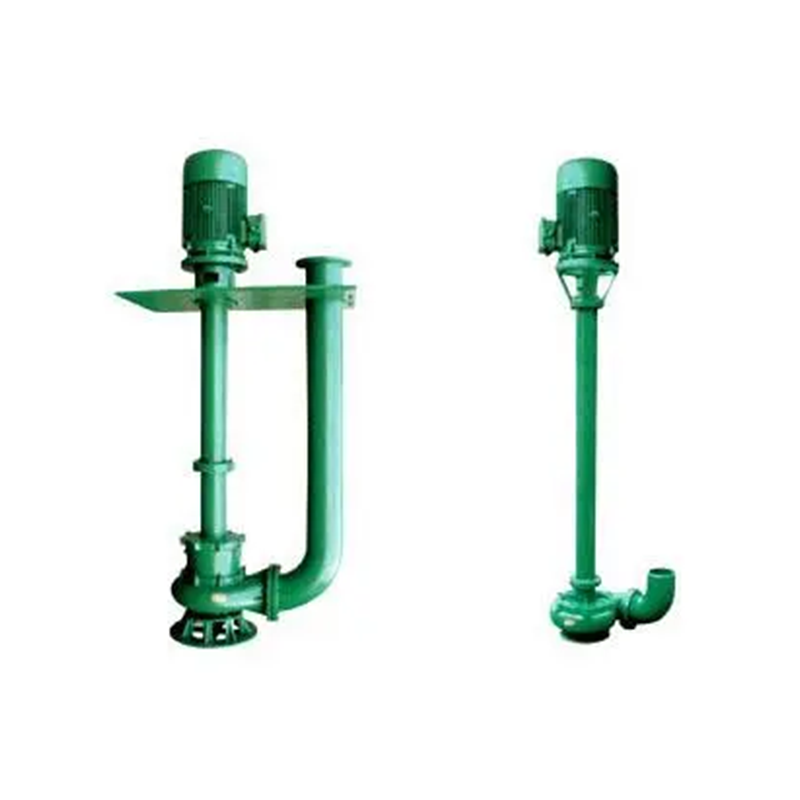

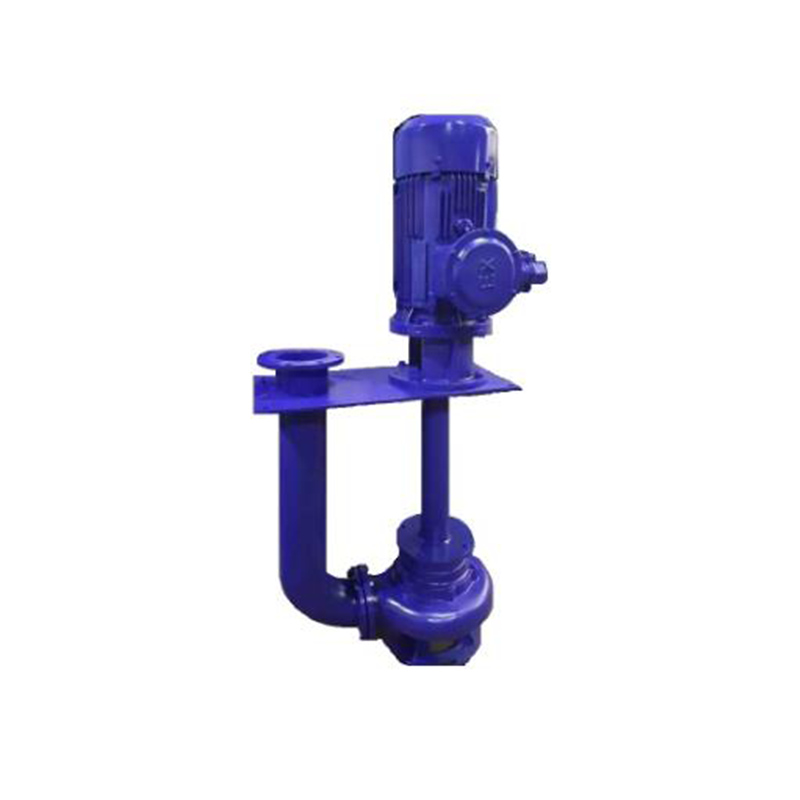

YW type submersible sewage pump

YW submersible sewage pump adopts single (double) channel impeller, with strong sewage discharge capacity, and can effectively pass fibers 5 times the diameter of the pump and solid particles 50% of the diameter of the pump. The dynamic seal adopts two sets of special material hard alloy mechanical seals, made of cast iron and stainless steel.

info@cn-pumps.cn

YW sewage pump performance parameters:
model	Discharge port diameter	flow	Lift	Speed	power	efficiency
model	mm	m3/h	m	r/min	KW	%
40YW12-15	40	12	15	2900	1.5	48
50YW20-7	50	20	7	1450	0.75	62
50YW10-10	〃	10	10	〃	0.75	54
50YW15-15	〃	15	15	2900	1.5	51
50YW15-20	〃	15	20	〃	2.2	51
50YW17-25	〃	17	25	〃	3	53
50YW25-32	〃	25	32	〃	5.5	49
65YW25-15	65	25	15	〃	2.2	52
65YW37-13	〃	37	13	〃	3	60
65YW25-28	〃	25	28	〃	4	58
80YW40-7	80	40	7	〃	2.2	50
80YW29-9	〃	29	9	〃	2.2	48
80YW43-13	〃	43	13	〃	3	65
80YW40-15	〃	40	15	〃	4	57
80YW50-25	〃	50	25	〃	7.5	56
100YW80-9	100	80	9	1450	4	62
100YW110-10	〃	110	10	〃	5.5	97
100YW65-15	〃	65	15	〃	5.5	59
100YW100-15	〃	100	15	〃	7.5	70
100YW80-20	〃	80	20	〃	7.5	71
100YW100-22	〃	100	22	〃	15	61
150YW145-9	150	145	9	〃	7.5	63
150YW200-10	〃	200	10	〃	15	64
150YW160-15	〃	160	15	〃	15	67
150YW180-22	〃	180	22	〃	18.5	74
150YW150-26	〃	150	26	〃	18.5	72
150YW130-30	〃	130	30	〃	22	69
150YW200-30	〃	200	30	〃	37	65
150YW150-35	〃	150	35	〃	37	63
200YW250-11	200	250	11	〃	15	72
200YW250-15	〃	250	15	〃	18.5	72
200YW400-10	〃	400	10	〃	22	75
200YW310-13	〃	310	13	〃	22	71
200YW400-13	〃	400	13	〃	30	76
200YW250-22	〃	250	22	〃	30	71
200YW350-25	〃	350	25	〃	37	73
200YW250-35	〃	〃	35	〃	45	69
250YW600-9	250	600	9	〃	30	78
250YW600-12	〃	600	12	〃	37	76
250YW600-15	〃	600	15	〃	45	73
