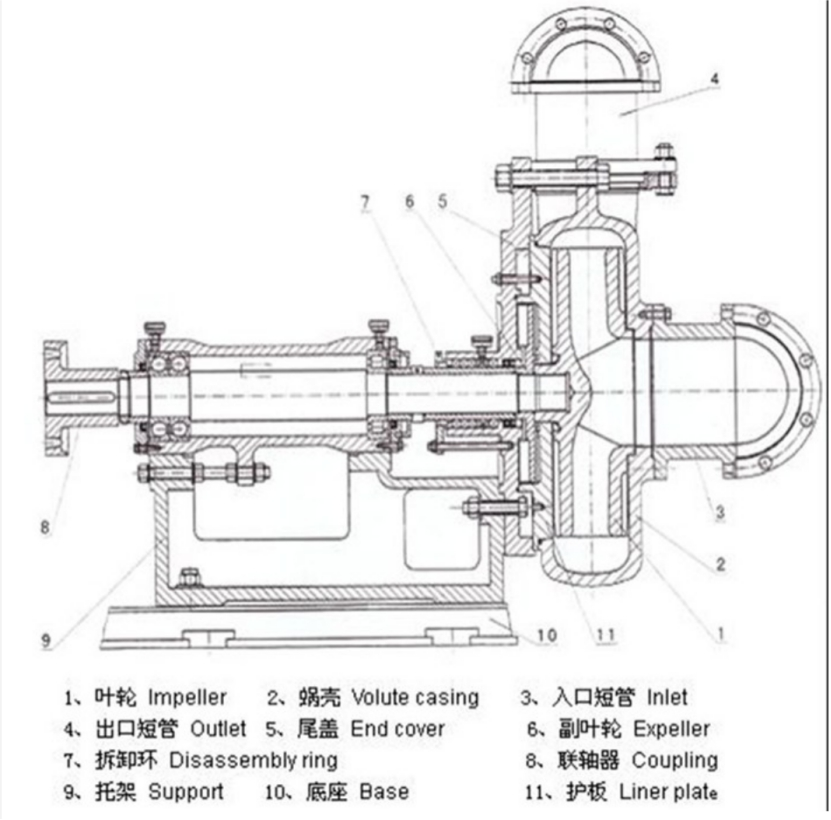

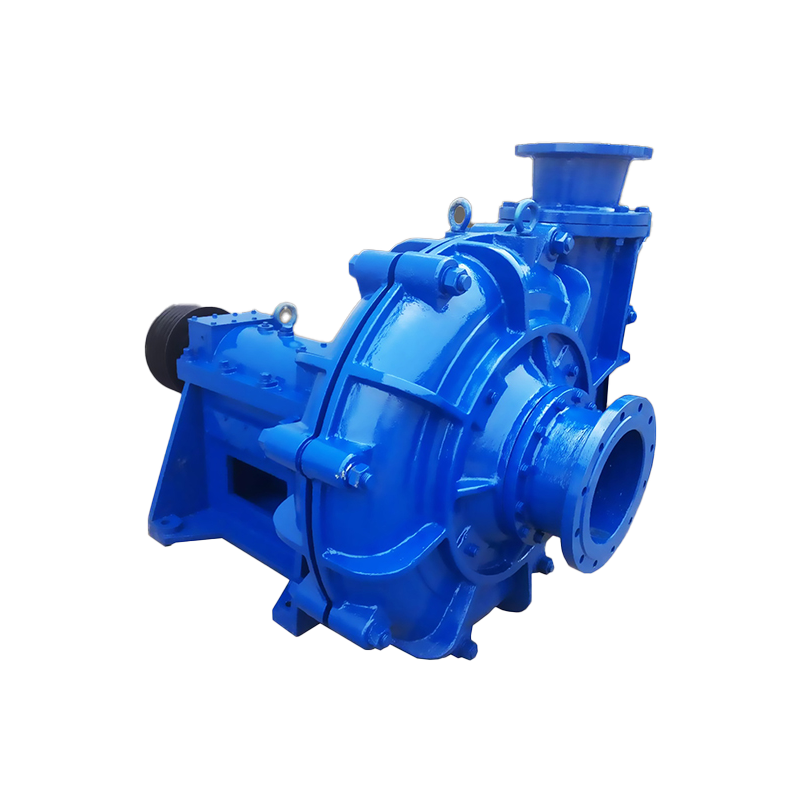

ZD Series Single Shell Slurry Pump

ZD series slurry pump, this series of single shell slurry pump has the characteristics of full range of models, stable performance, wide coverage of working conditions, convenient selection, etc. The flow-through parts are made of self-developed high-chromium wear-resistant alloy with high efficiency, energy saving, long service life, light weight, reasonable structure, reliable operation, low vibration, low noise, easy maintenance, etc.

info@cn-pumps.cn

model	Maximum power P(KW)	Flow rate Q(m³/h)	Lift H(m)	Speed n(r/min)	Maximum efficiency η%	NPSH (m)	Maximum particle size (mm)	Weight （kg)
600D-A82	500	1664-5600	5.2-27.8	300-595	88.3	2.2	152	4900
300D-A60	400	580-2403	8.9-53	730-980	81.1	4.3	96	2790
200ZJD-B45	90	138-638	5.7-30.4	490-980	70.7	2.0	51	1750
150ZJD-A60	450	156-704	28.9-150	700-1480	78.1	2.1	39	1657
150D-B55	132	139-630	11.3-53.7	490-980	65.7	2.3	56	1540
150DG-A50	55	62-279	9.3-44.6	490-980	73.1	2.1	30	1470
150D-A40	132	122-503	11.2-65	700-1480	57.9	2.6	40	830
100D-A60	220	71-305	29-147	700-1480	58.7	2.4	18	890
100D-A45	90	47-228	14.8-83.5	700-1480	51.8	2.2	22	810
100D-A45B	90	41-219	12-76	700-1480	53.6	2.4	24	800
100DG-B45C	90	53-233	13-66.6	700-1480	70.4	3.6	26	1290
100D-B40	75	61-268	12-61	700-1480	58.7	1.7	29	620
100DG-B38CS	90	40-171	18.5-91	700-1480	73.2	3.4	18	1420
100D-A35	75	77-323	8.8-46	700-1480	62.4	1.9	42	550
80D-A36	37	41-167	8.9-47	700-1480	62.4	1.5	16	480
65D-A40	55	34-159	12.2-63.2	700-1480	54.6	2.1	16	490
65D-A30	22	21-99	7.0-35.6	700-1480	45.1	2.2	19	260
50D-D40	30	16-76	9.5-51.7	700-1480	48.5	1.2	10	320
50D-A30	18.5	16-78	6.1-36.3	700-1480	42.5	0.8	16	210
40D-A25	45	16.8-75	13.7-88.6	1400-2950	53	2.6	9	185
40D-B20	15	7.9-37	10.7-57.7	1400-2930	38	0.9	7	160
25D-A25	4	4.7-20	3.3-21.6	700-1440	41.8	3.3	5	107
25D-A15	5.5	4.4-19.3	6.2-35	1390-2900	41.8	1.3	8	89
